367 (126-367-100) - Cub Cadet Walk-Behind Mower (1986) Parts For Rotary Mower Part 2 Parts Diagram

Walk-Behind Mower

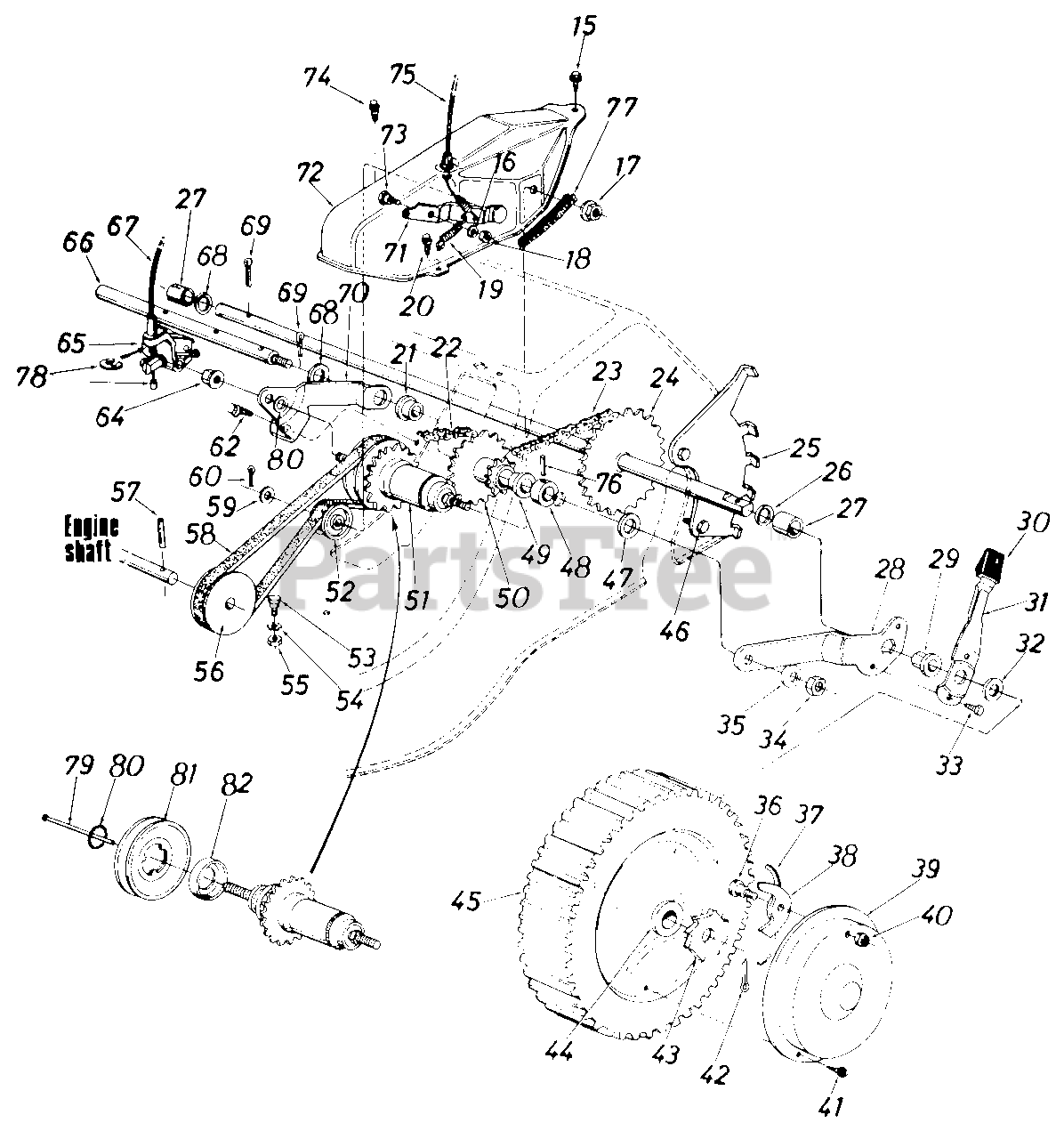

Parts For Rotary Mower Part 2 Parts Diagram

  • Title

15

Cub Cadet 710-0456

SCREW-HEX DRILLING #10 X .50

$

$

Not available

16

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

Cub Cadet 712-0340

NUT-HEX BC 3/8-24

$

$

Not available

18

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

20

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0248

BEARING-FLANGE

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0361

#48 CHAIN-1/2 PITCH-38 LINKS
(Superseded to 913-0361)

Note: (Endless)

$

$

Not available

23

Cub Cadet 713-0256

#48 CHAIN 1/2 PITCH X 31 LINKS
(Superseded to 913-0144)

Note: (Endless)

$

$

Not available

24

Cub Cadet 13414

SHAFT ASSY-REAR

$

$

Not available

25

Cub Cadet 16097

PLATE-INDEX-RR-LH

$

$

Not available

Cub Cadet 16098

PLATE-INDEX-RR-RH

Note: (Not Shown)

$

$

Currently unavailable

26

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 750-0190

SPACER

$

$

Not available

28

Cub Cadet 16099

BRACKET-PIVOT-LH

$

$

Not available

Cub Cadet 16100

BRACKET-PIVOT-RH

Note: (Not Shown)

$

$

Not available

29

Cub Cadet 741-0324

BEARING-HEX FLANGE .506 ID
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

30

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

31

Cub Cadet 732-0467

LEVER-SPRING

$

$

Not available

32

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 738-0137

SCREW-SHLD .342 DIA X .268

$

$

Not available

37

Cub Cadet 10622

SPRING-NYLON
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 748-0188

PAWL
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

39

Cub Cadet 10647

HUB CAP

$

$

Not available

40

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0748

SCREW-PAN HD TAPP

$

$

Not available

42

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

43

Cub Cadet 748-0187

RACHET-WHEEL

$

$

Not available

44

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 734-1411

WHEEL ASSY W/TIRE

$

$

Not available

46

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

47

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

48

Cub Cadet 750-0387

SPACER

$

$

Not available

49

Cub Cadet 741-0248

BEARING-FLANGE

$8.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 713-0359

SPROCKET ASSY-9T & 21T

$

$

Not available

51

Cub Cadet 717-0825

HUB-W/18T SPROCKET

$

$

Not available

52

Cub Cadet 756-0360

PULLEY-IDLER-FLAT

$

$

Not available

53

Cub Cadet 738-0140

SCREW-SHLD .437 DIA X .180

$5.49

$

In Stock, Qty 17

0

54

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 756-0462

PULLEY-ENGINE-1/2 V

$

$

Not available

57

Cub Cadet 715-0144

PIN-SPIROL 3/16X1.50

$

$

Not available

58

Cub Cadet 754-0292

BELT-V 1/2 X 26.0

$

$

Not available

59

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$3.99

$

In Stock, only 2 left!

0

60

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

62

Cub Cadet 710-0726

SCREW-HEX HD TAP

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0226

WASHER-FL-.469 ID X .88 OD X .063
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

64

Cub Cadet 712-0340

NUT-HEX BC 3/8-24

Note: (Special)

$

$

Not available

65

Cub Cadet 717-0824

BELL CRANK-3-SP SHIFT

$

$

Currently unavailable

66

Cub Cadet 738-0471

SHAFT-PULLEY

$

$

Not available

67

Cub Cadet 717-0823

CABLE-SHIFT

$

$

Not available

68

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$3.99

$

In Stock, only 2 left!

0

69

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA X 1.00

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 16304

BRACKET-3 SPEED

$

$

Currently unavailable

71

Cub Cadet 13415

BRACKET ASSY-IDLER

$

$

Not available

72

Cub Cadet 738-0255

SCREW-SHLD
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

73

Cub Cadet 738-0255

SCREW-SHLD
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

74

Cub Cadet 710-0642

SCREW-HEX HD TAP 1/4-20 X 7.5

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 746-0466

CABLE-CLUTCH

$

$

Not available

76

Cub Cadet 715-0120

PIN-SPRING SPIR 3/16 X 1.00

$9.99

$

In Stock, only 4 left!

0

77

Cub Cadet 731-0511

STRIP-TRIM-12IN

$3.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 717-0832

RING-SNAP

Note: (Special)

$

$

Currently unavailable

79

Cub Cadet 717-0830

PIN-SHIFTING

Note: (Special)

$

$

Not available

80

Cub Cadet 717-0826

RING-SNAP

Note: (Special)

$

$

Not available

81

Cub Cadet 756-0463

PULLEY-1/2 V

$

$

Not available

82

Cub Cadet 717-0831

COVER-DUST

$

$

Currently unavailable
