367 (190-367-100) - Cub Cadet Triple Rear Bagger Cover Assembly Parts Diagram

Triple Rear Bagger

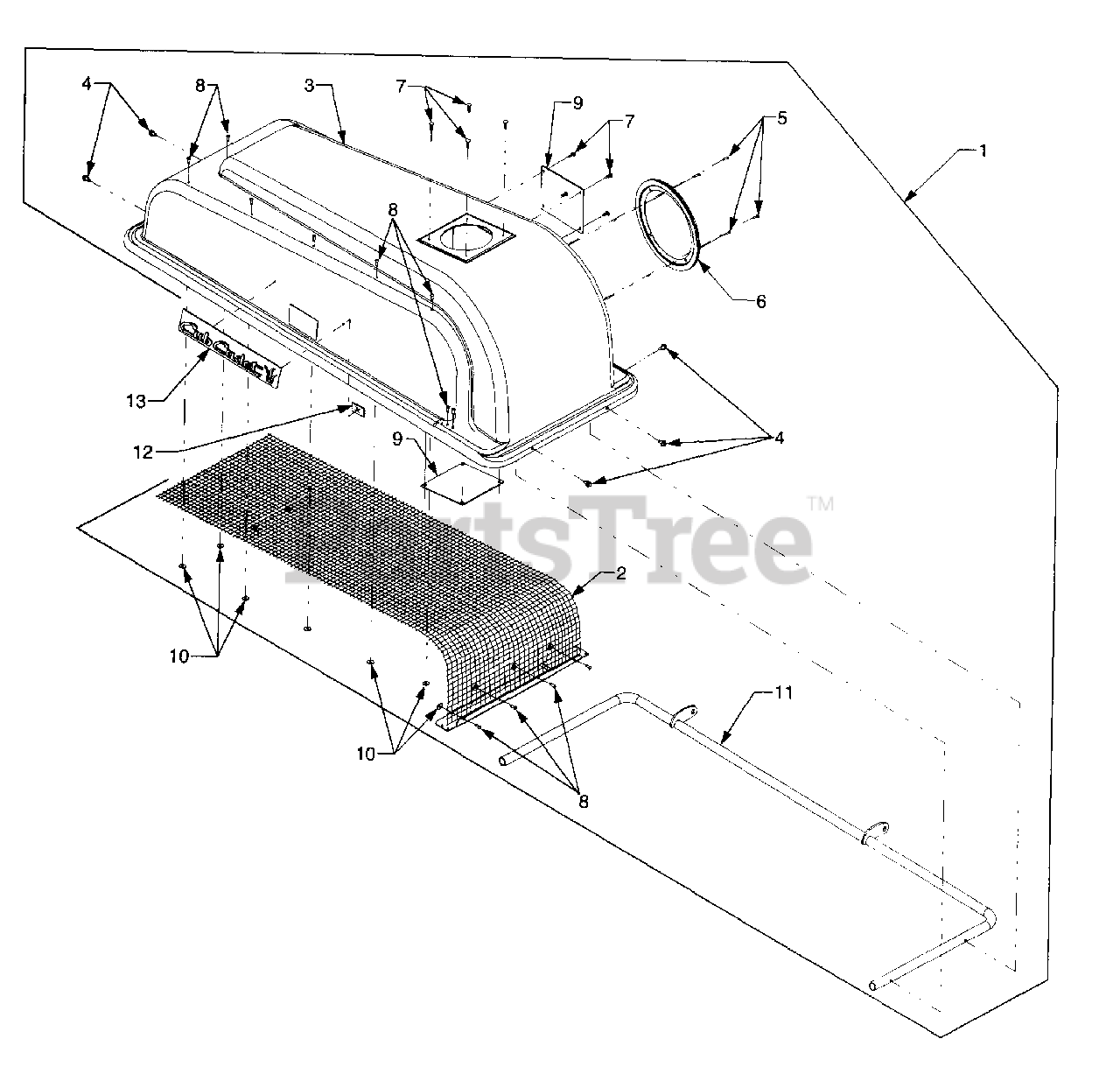

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 17204

Cover Assembly

Note: Includes Ref. Nos. 2 thru 11

$

$

Not available

Cub Cadet 777S30250

Label, Warning

$

$

Not available

2

~N/A

Screen and Mtng. Brkt. Ass'y.

Note: Order 17204 Cover Assembly

$

$

Not available

3

~N/A

Cover

Note: Order 17204 Cover Assembly

$

$

Not available

4

Cub Cadet 710-0896

Screw, Hex Wash. Hd. Tapp 1/4-14 x .625

$3.52

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0936

Screw, Truss Hd. Tapp 6-20 x .625

$3.58

$

Usually ships in 5-10 days

0

6

Cub Cadet 723-0413

Seal, Tube,8.10 ID

$25.98

$

In Stock, only 2 left!

0

7

Cub Cadet 726-0479

Clip, Racket

$3.42

$

Usually ships in 5-10 days

0

8

Cub Cadet 728-0123

Rivet, Pop, .187 x .45
(Superseded to 928-0123)

$4.02

$

Usually ships in 5-10 days

0

9

Cub Cadet 731-0824A

Plate, Plastic

$

$

Not available

10

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063
(Superseded to 936-0400)

$

$

Not available

11

Cub Cadet 749-0747-0637

Bracket Assembly, Cover Hinge

$

$

Not available

12

Cub Cadet 726-3040

Speed Nut, Push On

$3.57

$

In Stock, only 2 left!

0

13

Cub Cadet 777D03361

Decal, Cub Cadet

$

$

Not available
