36928 - Gravely 40" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

40" Deck for Pro-Walk Mower

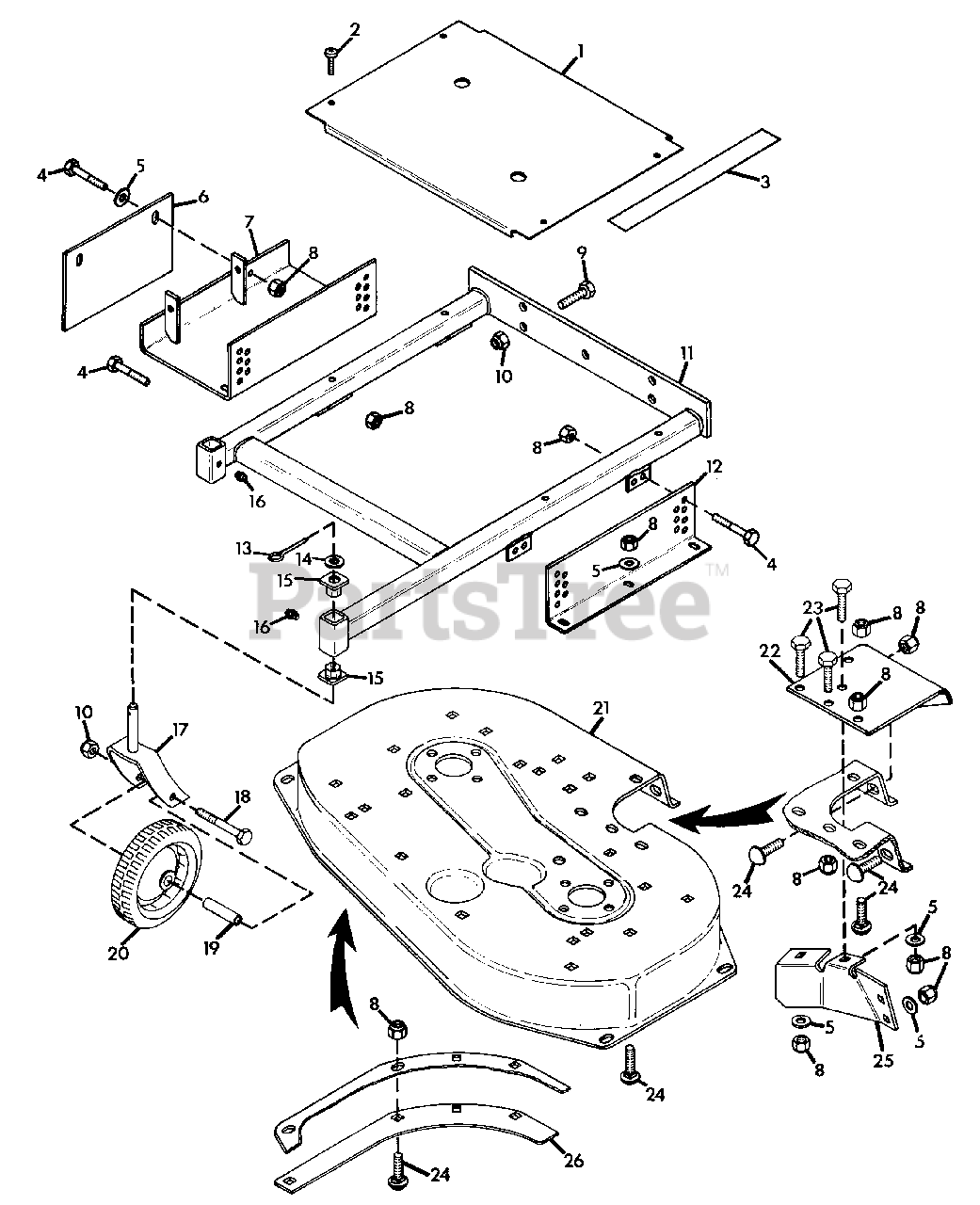

MOWER FRAME Parts Diagram

  • Title
1

Gravely 034401

GUARD, 40" MOWER BELT
(Superseded to 20601600)

$

$

Not available

2

Gravely 167257

SCREW, TAPPING 1/4-20X.50 P/HD
(Superseded to 07410400)

$1.96

$

In Stock, Qty 20+

0

3

Gravely 035043

TAPE, VINYL FOAM(75' ROLL)
(Superseded to 00921700)

Note: (75' ROLL)

$

$

Not available

4

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$2.80

$

In Stock, Qty 20+

0

5

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 18

0

6

Gravely 035029

PLATE, DISCHARGE COVER
(Superseded to 08805600)

$

$

Not available

7

Gravely 034969

WELDMENT, MOWER SUPPORT
(Superseded to 20615500)

$

$

Not available

8

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

9

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.63

$

Usually ships in 4-12 days

0

10

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.80

$

In Stock, Qty 13

0

11

Gravely 034856

WELDMENT, FRAME SUPPORT
(Superseded to 20612700)

$

$

Not available

12

Gravely 034852

BRACKET, MOWER SUPPORT
(Superseded to 20612600)

$

$

Not available

13

Gravely 103409

PIN, COTTER .187X1.50
(Superseded to 06712800)

$1.68

$

In Stock, Qty 5

0

14

Gravely 423315

WASHER FLAT .813X1.37X.100
(Superseded to 06401140)

$2.52

$

In Stock, Qty 19

0

15

Gravely 025148

BEARING, FLANGED
(Superseded to 05519300)

$6.99

$

In Stock, Qty 5

0

16

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 034278

WELDMENT, CASTER FORK
(Superseded to 21224000)

$

$

Not available

18

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.75

$

In Stock, Qty 20+

0

19

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$22.08

$

Usually ships in 4-12 days

0

20

Gravely 023696

WHEEL, GAUGE
(Superseded to 07128100)

$88.27

$

Usually ships in 4-12 days

0

21

Gravely 034854

DECK, 40" MOWER
(Superseded to 08803800)

$

$

Not available

22

Gravely 025123

SHIELD, DISCHARGE
(Superseded to 08802200)

$27.89

$

Usually ships in 4-12 days

0

23

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$2.18

$

In Stock, Qty 11

0

24

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

25

Gravely 025122

SHROUD, BLADE
(Superseded to 08802100)

$64.90

$

Usually ships in 4-12 days

0

26

Gravely 034672

PLATE
(Superseded to 21232253)

$55.29

$

Usually ships in 4-12 days

0

NS

Gravely 035127

DECAL, CAUTION
(Superseded to 07893700)

$16.71

$

Usually ships in 4-12 days

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.19

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$25.49

$

Usually ships in 4-12 days

0

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.19

$

Usually ships in 4-12 days

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$33.48

$

Usually ships in 4-12 days

0
