36929 - Gravely 50" Deck for Pro-Walk Mower MOWER DRIVE Parts Diagram

50" Deck for Pro-Walk Mower

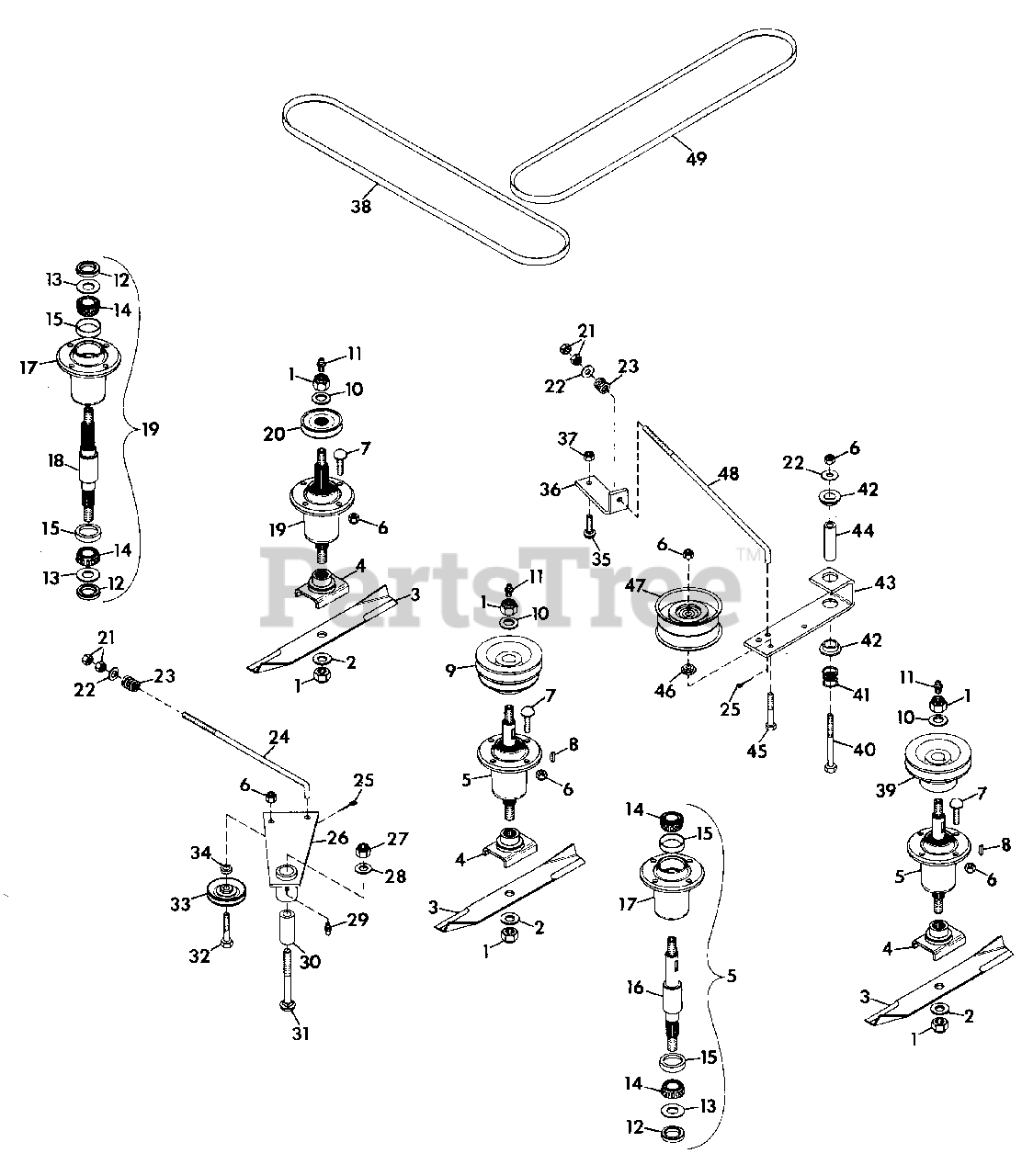

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

2

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 011234

BLADE
(Superseded to 08861600)

$22.99

$

In Stock, Qty 20+

0

4

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 034605

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

6

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, Qty 19

0

8

Gravely 124553

KEY, WOODRUFF .250X1 HARD
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 034935

SHEAVE, SPINDLE
(Superseded to 08804300)

$

$

Not available

10

Gravely 033845

WASHER, FLAT .687X1.312X.130
(Superseded to 06427400)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 411010

FITTING, LUBE 1/8 NPT
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

12

Gravely 021211

SEAL, STEEL(IN 34605)
(Superseded to 08722600)

Note: (IN 34605)

$15.99

$

In Stock, Qty 10

0

12

Gravely 021211

SEAL, STEEL(IN 21306)
(Superseded to 08722600)

Note: (IN 21306)

$15.99

$

In Stock, Qty 10

0

13

Gravely 020743

WASHER, FLAT .975X.970X.030(IN 34605)
(Superseded to 06426900)

Note: (IN 34605)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 020743

WASHER, FLAT .975X.970X.030(IN 21306)
(Superseded to 06426900)

Note: (IN 21306)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 009246

CONE, ROLLER BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 12

0

15

Gravely 009245

CUP, ROLLER BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 12

0

16

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

17

Gravely 021215

HOUSING, SHAFT
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

18

Gravely 021216

SHAFT, SPINDLE
(Superseded to 58802800)

$85.99

$

In Stock, only 3 left!

0

19

Gravely 021306

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

20

Gravely 020065

SHEAVE, SPINDLE
(Superseded to 08896000)

$89.99

$

In Stock, only 3 left!

0

21

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

22

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 011779

SPRING, COMP. 1X.78
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

24

Gravely 031913

ROD, R.H. IDLER
(Superseded to 08654100)

$63.99

$

Usually ships in 4-12 days

0

25

Gravely 121222

PIN, COTTER .094X.625
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

26

Gravely 031364

WELDMENT, IDLER PIVOT
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

29

Gravely 014406

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

30

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$19.99

$

Usually ships in 4-12 days

0

31

Gravely 126803

BOLT, 1/2-13X3.50 RD HD SQ NK
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

32

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

33

Gravely 027891

PULLEY
(Superseded to 21247800)

$

$

Not available

34

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

35

Gravely 126358

BOLT, 5/16-18X1.00 RD HD SQ NK
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

36

Gravely 034287

BRACKET, BELT TENSIONER
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

37

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 034944

BELT, MOWER A44
(Superseded to 07220000)

$27.99

$

In Stock, only 4 left!

0

39

Gravely 034936

SHEAVE, SPINDLE
(Superseded to 08804400)

$387.99

$

Usually ships in 4-12 days

0

40

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 020444

SPRING, COMP. 1X.80
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

42

Gravely 010174

BUSHING, NYLON .76X1X.6
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

43

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

44

Gravely 034938

SPACER
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

45

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

46

Gravely 024815

BUSHING, REAR FENDER
(Superseded to 05515800)

$9.49

$

In Stock, Qty 9

0

47

Gravely 034286

PULLEY, IDLER
(Superseded to 07327800)

$79.99

$

In Stock, Qty 15

0

48

Gravely 034937

ROD, IDLER
(Superseded to 20614200)

$

$

Not available

49

Gravely 034945

BELT, MOWER A89
(Superseded to 20614700)

$45.99

$

Usually ships in 4-12 days

0
