370 (122-370-100) - Cub Cadet Walk-Behind Mower (1982) Belt Cover and Front/Rear Wheel Assemblies Parts Diagram

Walk-Behind Mower

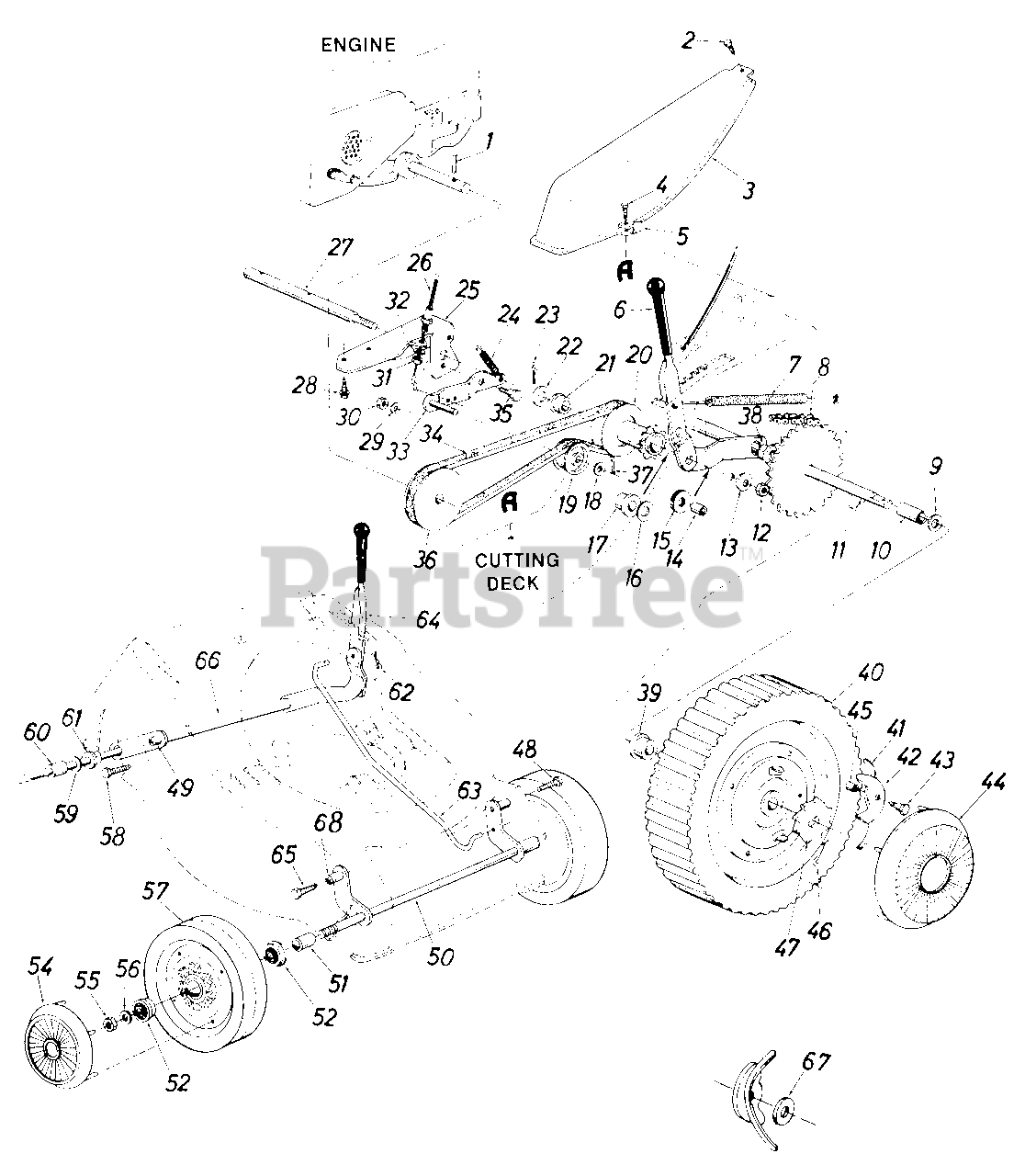

Belt Cover and Front/Rear Wheel Assemblies Parts Diagram

  • Title

1

Cub Cadet 715-0105

Spring Pin Roll 3/16" Dia. x 1.50" Lg.

$

$

Not available

2

Cub Cadet 710-0456

Hex Wash. Hd. AB-Tap Scr. #10 x .50" Lg.

$

$

Not available

3

Cub Cadet 15247

Belt Cover

Note: Color Code - 499

$

$

Currently unavailable

4

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 12894

Cable Clip

$

$

Not available

6

Cub Cadet 720-0143

Grip Black

$

$

Not available

7

Cub Cadet 732-0352

Extension Spring .50 O.D. x 4.25 Lg.

$

$

Not available

8

Cub Cadet 713-0289

#48 Chain 1/2 Pitch x 34 Links - E

$

$

Not available

9

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D. x .05

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 750-0506

Spacer .75 I.D. x .88 O.D. x 1.41 Lg.

$

$

Not available

11

Cub Cadet 15249

Axle Rear

$

$

Not available

12

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .860" O.D. x .060

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 750-0503

Spacer .395 I.D. x .503 O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

15

Cub Cadet 735-0144

Rubber Washer .51" I.D. x 1.00" O.D. x .25

$

$

Not available

16

Cub Cadet 736-0344

Fl-Wash. .390 I.D. x 1.000 O.D. x .030 - H.T.

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 741-0248

Flange Brg. .503 I.D. Plastic

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x.93 O.D. x .05

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 756-0360

Flat Idler Pulley

$

$

Not available

20

Cub Cadet 756-0191

3.00" O.D. Split Pulley with Sprocket Ass'y.

$

$

Not available

21

Cub Cadet 741-0248

Flange Brg. .503 I.D. Plastic

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D. x .05

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 714-0111

Cot. Pin 3/32 Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

25

Cub Cadet 15250

Support Bracket

$

$

Currently unavailable

26

Cub Cadet 746-0311

Clutch Control Cable

$

$

Not available

27

Cub Cadet 738-0501

Pulley Shaft .500" Dia.

$

$

Not available

28

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16 x .50 Lg.

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0314

Hex Jam Nut 1/4-28 Thd.

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

33

Cub Cadet 13415

Idler Brkt.

$

$

Not available

34

Cub Cadet 754-0252

V-Belt 1/2 x 33" Lg.
(Superseded to 954-0252)

$

$

Not available

35

Cub Cadet 738-0255

Shld. Bolt .375 Dia. x 1.71
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

36

Cub Cadet 756-0115

1/2 V-Pulley .500 I.D. x 2.59 O.D.

$

$

Not available

37

Cub Cadet 714-0115

Cot. Pin 1/8 Dia. x 1.00 Lg.

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet 741-0324

Hex. Flange Brg. .506 I.D. (Plastic)
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

39

Cub Cadet 741-0180

Flange Ball Brg.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 734-1051

Rear Wheel Ass'y. Comp.

$

$

Currently unavailable

41

Cub Cadet 10622

Nylon Spring
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 748-0188

Pawl - Rear Wheel
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 16

0

43

Cub Cadet 710-0827

Truss Mach. Scr. 1/4-20 x .75 Taptite Thds.

$

$

Not available

44

Cub Cadet 731-0354

Hub Cap

$

$

Not available

45

Cub Cadet 750-0508

Spacer .260 I.D. x .345 O.D. x .280 Lg.

$

$

Currently unavailable

46

Cub Cadet 714-0115

Cot. Pin 1/8 Dia. x 1.00 Lg.

$3.99

$

In Stock, only 1 left!

0

47

Cub Cadet 748-0187

Ratchet - Rear Wheel

$

$

Not available

48

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00 Lg.
(Superseded to 710-0654A)

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-0526

Spacer .385 I.D. x .503 O.D. x .270 Lg.

$4.49

$

In Stock, Qty 10

0

50

Cub Cadet 15258

Front Axle Ass'y.

$

$

Currently unavailable

51

Cub Cadet 711-0313

Spacer .516 I.D. x .670 O.D. x .860 Lg.

$

$

Not available

52

Cub Cadet 741-0180

Flanged - Ball Brg.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 731-0354

Hub Cap

$

$

Not available

55

Cub Cadet 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

56

Cub Cadet 1540-086

Fl-Wash. .510 I.D. x 1.000 O.D. x .125
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 734-0874

Wheel Ass'y. Complete 8 x 1.75

$

$

Not available

58

Cub Cadet 710-0654

Hex Wash Hd. TT-Tap Scr. 3/8-16 x 1.00
(Superseded to 710-0654A)

$3.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D. x .05

$3.99

$

In Stock, only 2 left!

0

60

Cub Cadet 711-0500

Spacer .526 I.D. x .690 O.D. x .640 Lg.

$

$

Not available

61

Cub Cadet 741-0324

Hex Flange Brg. .506 I.D. (Plastic)
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

62

Cub Cadet 714-0111

Cot. Pin 3/32 Dia. x 1.00 Lg.

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 747-0351

Linkage Rod .38 Dia.

$

$

Currently unavailable

64

Cub Cadet 15246

Height Adj. Handle

$

$

Not available

65

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00
(Superseded to 710-0654A)

$3.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 15244

Axle Ass'y.

$

$

Currently unavailable

67

Cub Cadet 736-0342

Fl-Wash. .28 I.D. x .75 O.D. x .030

Note: (Right Hand Wheel Only)

$6.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 750-0503

Spacer .395 I.D. x .503 O.D. x .562 Lg.
(Superseded to 950-0503)

$

$

Not available
