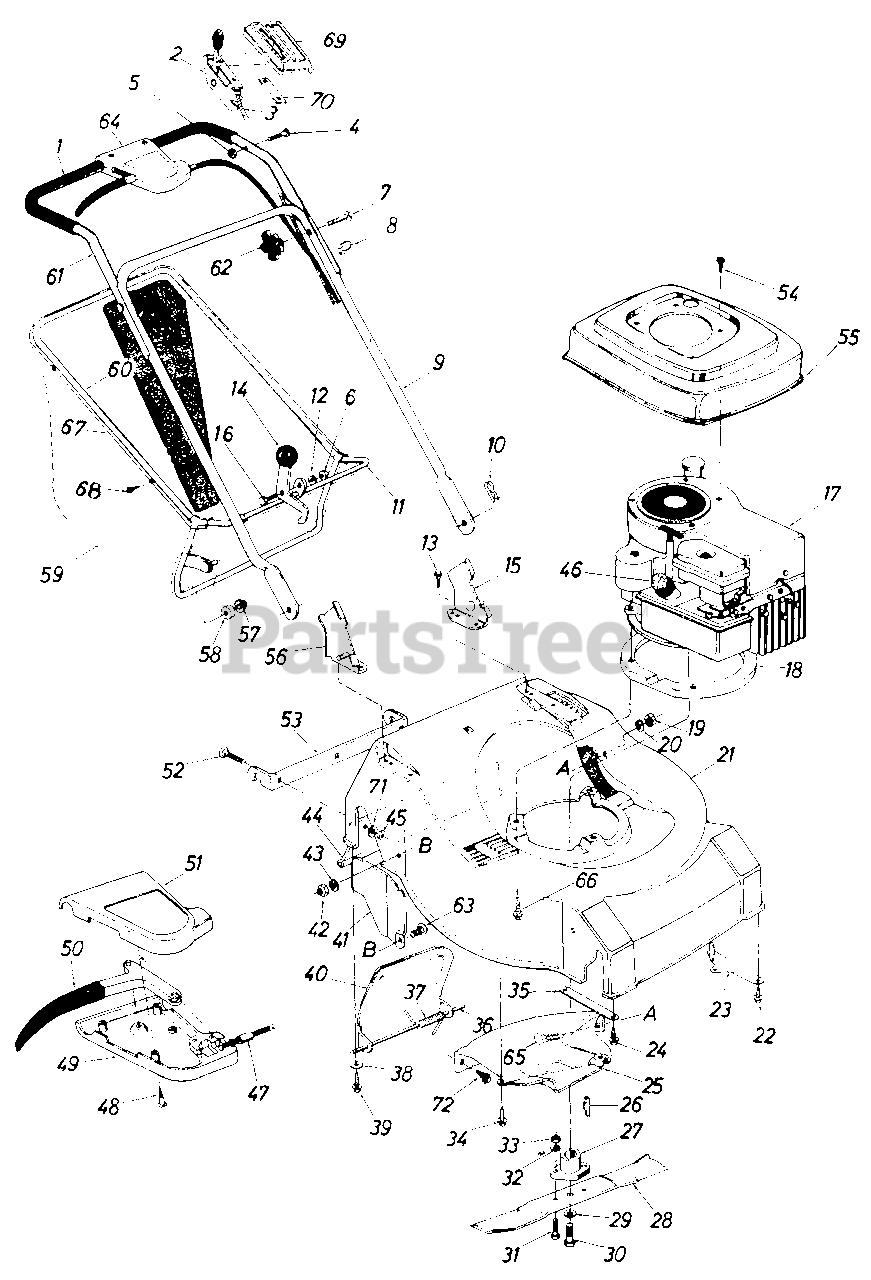

370 (122-370-100) - Cub Cadet Walk-Behind Mower (1982) Grass Catcher, Handle and Deck Assemblies Parts Diagram

Walk-Behind Mower

Grass Catcher, Handle and Deck Assemblies Parts Diagram

  • Title

1

Cub Cadet 731-3026

Grip

$

$

Currently unavailable

2

Cub Cadet 746-0350

Throttle Control Ass'y.

$

$

Not available

3

Cub Cadet 746-0352

Conduit and Wire

$

$

Not available

4

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$4.99

$

In Stock, Qty 15

0

5

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 726-0192

Cable Tie

$

$

Not available

9

Cub Cadet 749-0505

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 6

0

10

Cub Cadet 714-0104

Internal Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 13924

Grass Catcher Lower Frame Ass'y.

$

$

Not available

12

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0588

Hex Wash. Hd. B-Tap Scr. 1/4 x 1.00" Lg.
(Superseded to 710-0788)

$6.99

$

In Stock, only 4 left!

0

14

Cub Cadet 13435

Cam Lever Grip Ass'y.

$

$

Not available

15

Cub Cadet 14597

Handle Brkt. Ass'y. L.H.

$

$

Not available

16

Cub Cadet 738-0140

Shld. Bolt .437 Dia. x .180

$5.49

$

In Stock, Qty 17

0

17

4 H.P. Engine B&S 110988-0280-03

$

$

Not available

18

Cub Cadet 13773

Engine Mount Cover

$

$

Currently unavailable

19

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet 719-0253

22" Rear Discharge Deck

Note: Color Code 499

$

$

Currently unavailable

22

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 15253

Left Strap

$

$

Currently unavailable

24

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 15248

Rear Baffle L.H.

$

$

Currently unavailable

26

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8 Dia.

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

28

Cub Cadet 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

29

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$3.99

$

In Stock, Qty 13

0

30

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

31

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

32

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

34

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 15252

Right Strap

$

$

Currently unavailable

36

Cub Cadet 747-0353

Rod .25" Dia. x 8.25 Lg.

$

$

Not available

37

Cub Cadet 732-0408

Torsion Spring .46" O.D. x 2.38" Lg.

$

$

Not available

38

Cub Cadet 736-0463

Fl-Wash. .281" I.D. x .625 O.D. x .052

$4.49

$

In Stock, only 2 left!

0

39

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62 Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 15245

Chute Door

$

$

Currently unavailable

41

Cub Cadet 15254

Side Baffle

$

$

Currently unavailable

42

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 731-0451

Rear Flap Ass'y.

$

$

Currently unavailable

45

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

46

UNKNOWN

$

$

Not available

47

Cub Cadet 746-0311

Clutch Control Cable

$

$

Not available

48

Cub Cadet 710-0535

Fl. Cr. Sunk AB-Tap Scr. #10 x 1.0" Lg.
(Superseded to 710-0841)

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 731-0408

Rear Cover

$

$

Not available

50

Cub Cadet 731-0406

Lever Clutch Control

$

$

Currently unavailable

51

Cub Cadet 731-0407

Front Cover

$

$

Not available

52

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 14012

Grass Catcher Hitch Brkt.

$

$

Not available

54

Cub Cadet 710-0227

Hex AB-Tap Scr. #8 x .38" Lg.

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 10877

Shroud

$

$

Currently unavailable

56

Cub Cadet 14593

Handle Brkt. Ass'y. R.H.

$

$

Not available

57

Cub Cadet 726-0100

Cap Speed Nut 3/8" Rod

$3.99

$

In Stock, Qty 7

0

58

Cub Cadet 731-0430

Plastic Roller

$

$

Not available

59

Cub Cadet 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

60

Cub Cadet 749-0278

Grass Catcher Upper Frame

$

$

Not available

61

Cub Cadet 749-0377

Upper Handle

$

$

Currently unavailable

62

Cub Cadet 720-3012

Hand Knob

$

$

Not available

63

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 13627

Clutch Control Ass'y. Comp.

$

$

Currently unavailable

65

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0654

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 731-0606

Grass Catcher Top Cover

$

$

Not available

68

Cub Cadet 710-0224

Hex AB-Tap Scr. #10 x 1/2" Lg.
(Superseded to 910-0224)

$3.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 731-0344

Plastic Cover

$

$

Not available

70

Cub Cadet 726-0134

Speed Nut #8-32 Twin Type

$

$

Not available

71

Cub Cadet 736-0173

Fl-Wash. .281" I.D. x .734" O.D. x .063

$3.99

$

In Stock, Qty 10

0

72

Cub Cadet 710-0782

Hex Wash. Hd. Drill Scr. 1/4" x .75" Lg.

$

$

Not available
