3700 - Poulan Chainsaw Bow Guide Assembly Parts Diagram

Chainsaw

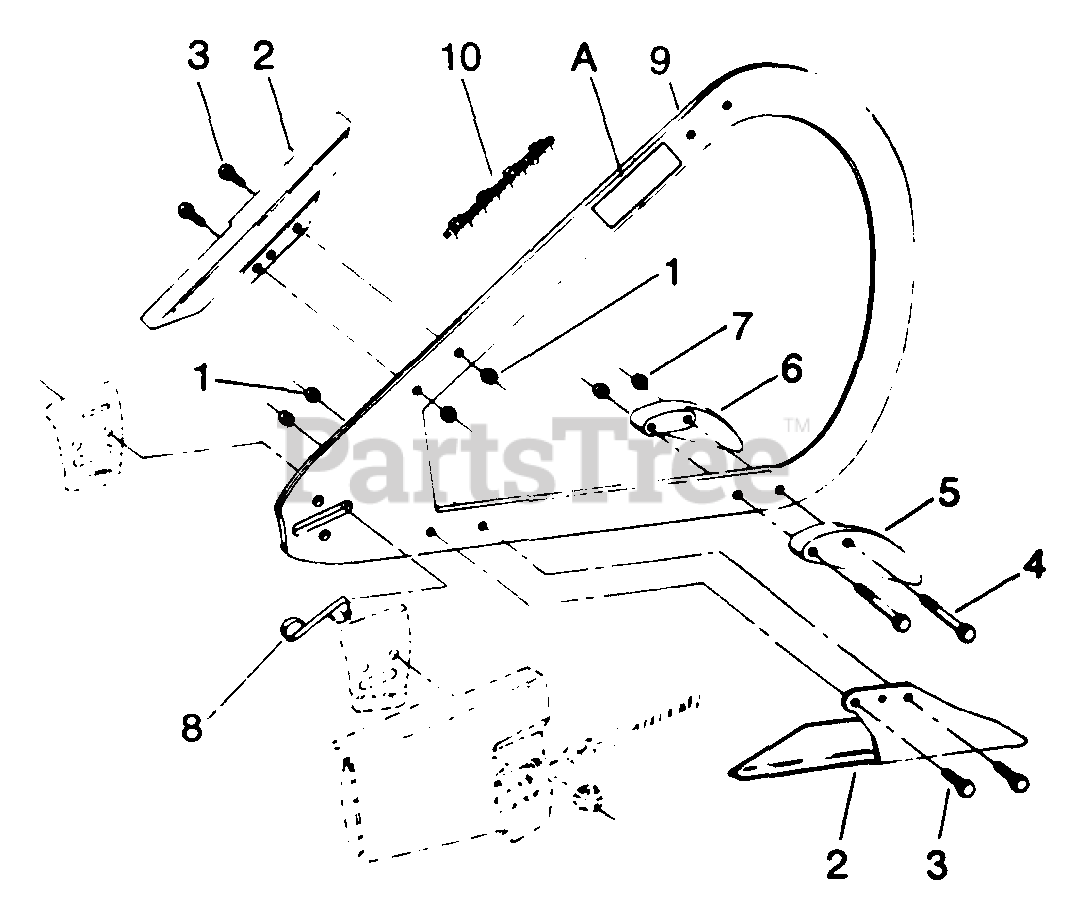

Bow Guide Assembly Parts Diagram

  • Title

1

Poulan 530001725

Locknut - (12 - 24)

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530022204

Chain Guard - Upper and Lower

$

$

Not available

3

Poulan 530001709

Screw-Guard Mtg. (12-24 x 5/8-Hex Hd.)

$4.99

$

In Stock, Qty 7

0

4

Poulan 530625567

Screw- Spike Mtg. (1/4-20 x 1-3/4 - Hex Hd.)

$

$

Not available

5

Poulan 1208

Bumper Spike - Right

$

$

Not available

6

Poulan 1207

Bumper Spike - Left

$

$

Not available

7

Poulan 530001615

Locknut - Bumper Spike Mounting (1/4-20)

$

$

Not available

8

Poulan 530055044

"S" Clip

$

$

Not available

9

Bow Guide

Note: (See "Bow Guide and Chain Information" illustration and parts list)

$

$

Not available

10

Chain

Note: (See "Bow Guide and Chain Information" illustration and parts list)

$

$

Not available

Poulan 0488

13" Reversible Bow Attachment - .050/ 3/8 pitch

Note: Use on Bow Guide Model; Part Change

$

$

Not available

Poulan 0489

14" Reversible Bow Attachment - .050/ 3/8 pitch

Note: Part Change

$

$

Not available

A

Poulan 25384

Decal - Bow Guide Warning

$

$

Not available

Poulan 530025383

Decal - Handguard

Note: (Not Shown); Part Change

$

$

Not available

Poulan 530026156

Decal - Kickback

Note: (Not Shown); Part Change

$

$

Not available
