3700 - Poulan Chainsaw Engine Assembly Parts Diagram

Chainsaw

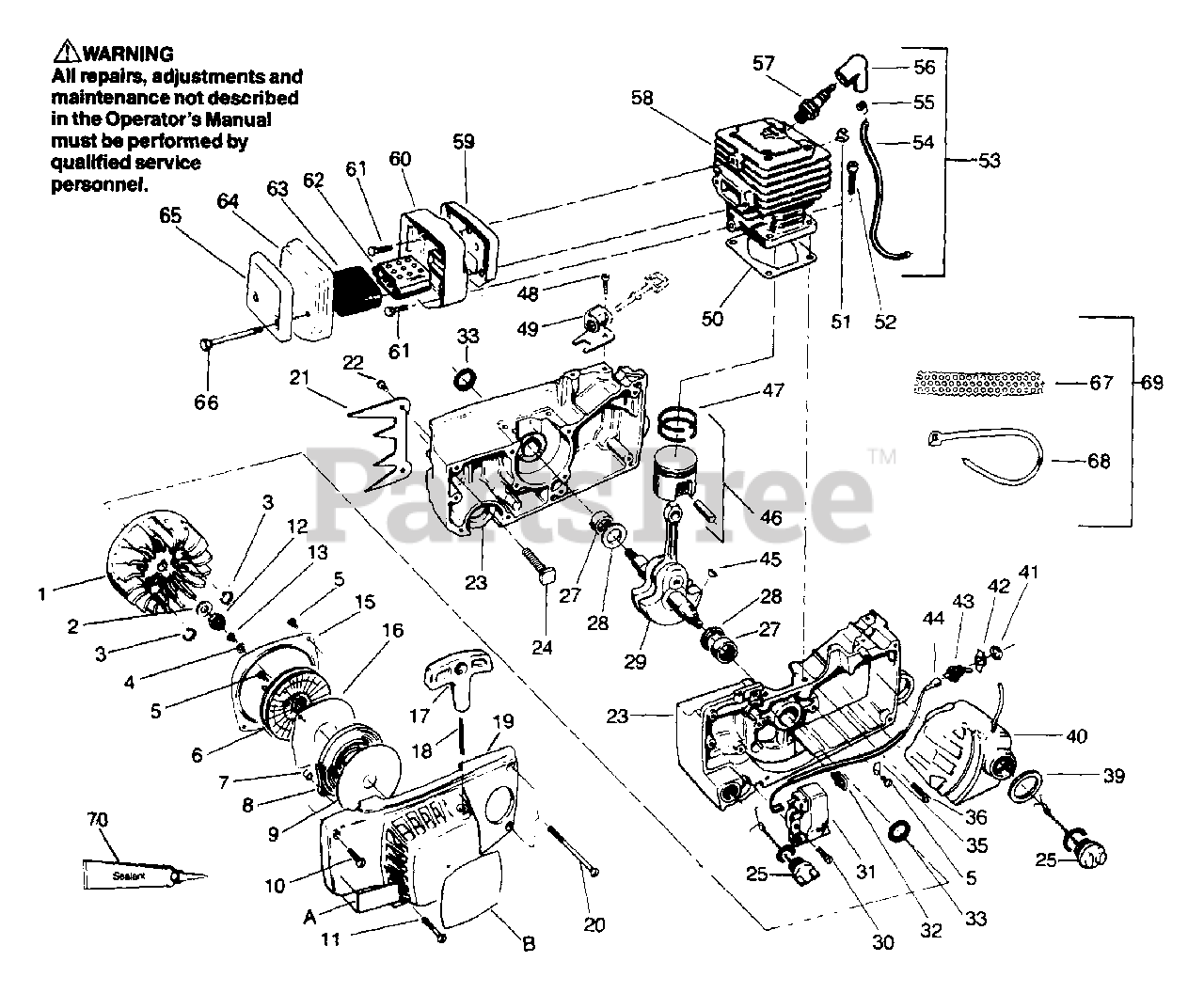

Engine Assembly Parts Diagram

  • Title

1

Poulan 530039113

Flywheel Ass'y.

Note: (Incl. #3)

$

$

Not available

2

Poulan 530001626

Washer - Flywheel

$

$

Not available

3

Poulan 530023817

Spring- Starter Dog

$6.49

$

In Stock, Qty 5

0

4

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

5

Poulan 530001726

Screw - 32 x 5/16- Hex Hd.-Disc Mounting (also Air Baffle & Clamp Head)

$

$

Not available

6

Poulan 530010674

Pulley - Starter

$

$

Not available

7

Poulan 530024329

Bushing Recoil Spring

$

$

Not available

8

Poulan 530042051

Spring Starter Recoil
(Superseded to 545008008)

$

$

Not available

9

Poulan 530042053

Disc. Recoil Spring - Outer

$

$

Not available

10

Poulan 530015364

Screw - 10-24 x 1 Oval Hd. Fan Housing - (Top Front)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530015365

Screw - 10-24 x 1-3/8 Fan Housing (Lower Front)

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530001722

Flywheel Nut - 3/8-24

Note: Part Change

$4.99

$

In Stock, only 4 left!

0

13

Poulan 530015036

Screw - 10-24 x 1/8 - Starter pulley
(Superseded to 530016141)

Note: Part Change

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530024232

Air Baffle

$

$

Not available

16

Poulan 530042054

Disc Recoil Spring - Inner

$

$

Not available

17

Poulan 530042056

Handle Starter Rope

$

$

Not available

18

Poulan 530042052

Rope Starter (Bulk 9128)

$

$

Not available

19

Poulan 530012034

Fan Housing Assembly

$

$

Not available

20

Poulan 530015366

Screw - 10-24 x 3-9/64 - Fan Housing (Rear)

$4.99

$

In Stock, only 2 left!

0

21

Poulan 530024476

Spur

$

$

Not available

22

Poulan 530015434

Screw - 10-24 x 9/16 - Hex Hd. - Spur

$3.99

$

In Stock, only 1 left!

0

23

Poulan 530010696

Crankcase Ass'y.

Note: (Incl. #24, 27, 33 and Oil Cap Assy.; from "Handlebar Assembly" illustration and parts list includes #30, 36, 47 & one of 34)

$191.99

$

Usually ships in 3-10 days

0

24

Poulan 530030039

Kit-Bar Stud Replmnt. (5/16")

$

$

Not available

25

Poulan 952010438

Oil & Fuel Cap Kit

Note: (Incl. "O" Rings); See Drawing Note.

$

$

Not available

27

Poulan 530032051

Bearing - Crankshaft

$

$

Not available

28

Poulan 530015354

Thrust Washer- Crankshaft

$6.99

$

Usually ships in 3-10 days

0

29

Poulan 530024492

Crankshaft Assy.

Note: (Incl. Connecting Rod and Bearing)

$194.99

$

Usually ships in 3-10 days

0

30

Poulan 530015425

Screw - 10-24 x 7/8 - Module Mnt.

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 530039093

Ignition Module

Note: (Incl. #44 & 53)

$

$

Not available

32

Poulan 530024334

Clamp - High Tension Lead - Crankcase

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530019097

Seal - Crankshaft

$

$

Not available

35

Poulan 530023661

Clamp- Module Lead

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 530015238

Screw - 10-24 x 11/16 - Fit. Hd. Crankcase

$2.49

$

In Stock, only 1 left!

0

39

Poulan 530019122

Seal- Fuel Tank Neck

$4.99

$

In Stock, only 1 left!

0

40

Poulan 530010286

Fuel Tank Ass'y.

Note: (Incl. Fuel Cap and from "External Power Unit" illustration and parts list #36 & 38)

$

$

Not available

41

Poulan 530023575

Nut - Switch Mounting
(Superseded to 530002582)

$

$

Not available

42

Poulan 530024858

Plate - Ignition Switch

$

$

Not available

43

Poulan 530023732

Switch - Toggle

$

$

Not available

44

Leadwire - Switch

$

$

Not available

44

Poulan 530039115

Serial #35474496

$

$

Not available

44

Poulan 530039099

Before Serial #35474495

$

$

Not available

45

Poulan 530002595

Key - Flywheel

$4.99

$

In Stock, Qty 7

0

46

Poulan 530010355

Piston Assembly

Note: (Incl. Piston Pin & Rings)

$78.99

$

Usually ships in 3-10 days

0

47

Poulan 530024756

Rings - Piston

$

$

Not available

48

Poulan 530015368

Screw - 10-24 x 3/8-Fil. Hd. Choke Bracket

$

$

Not available

49

Poulan 530010347

Bracket & Bushing Assembly - Choke

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 530019129

Cylinder Gasket

Note: Part Change

$

$

Not available

51

Poulan 530015195

Clip - High Tension Lead Cylinder

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530001624

Cylinder Screw- 1/4-20 x 1/8

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530039102

High Tension Lead Assembly

Note: (Incl. #54, 56 & 56)

$

$

Not available

54

Poulan 530039096

High Tension Lead

$

$

Not available

55

Poulan 530039071

Connector - Spark Plug

$

$

Not available

56

Poulan 530039097

Boot- Spark Plug

$

$

Not available

57

Poulan 530030073

Spark Plug

$

$

Not available

58

Poulan 530012069

Cylinder

$

$

Not available

59

Poulan 530024388

Back Plate - Muffler

$

$

Not available

60

Poulan 530024387

Muffler Body

$14.99

$

Usually ships in 3-10 days

0

61

Poulan 530015374

Screw - 1/4-24 x 1/2 - Hex Hd Muffler Body to Cylinder

$

$

Not available

62

Poulan 530024384

Diffuser - Muffler

$

$

Not available

63

Poulan 530024385

Screen - Spark Arrestor

$

$

Not available

64

Poulan 530024391

Muffler Cover

$

$

Not available

65

Poulan 530024392

Shield Muffler

$

$

Not available

66

Poulan 530015375

Screw - 1/4-20 x 2-1/2 - Hex Cap Muffler Cover

$2.49

$

Usually ships in 3-10 days

0

67

Poulan 530011746

Screen - Winter

Note: (Optional)

$

$

Not available

68

Poulan 530024675

Tie Strap

Note: (Optional)

$2.49

$

Usually ships in 3-10 days

0

69

Poulan 530069079

Winter Kit

Note: (Incl. 67 & 68); Optional

$46.99

$

Usually ships in 3-10 days

0

70

Poulan 530030054

Sealant - Crankcase

Note: (Optional); Part Change

$

$

Not available

A

Poulan 530024835

Decal - Professional User

Note: Bow Guide Powerhead only

$

$

Not available

B

Poulan 530024756

Decal- Fan Housing

$

$

Not available

Poulan 530064181

Operator's Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530066051

Bow Guide Manual

Note: Not Shown

$

$

Not available

Carton - Not Available

Note: Not Shown

$

$

Not available

Poulan 530019119

O-Ring

Note: For 7/8" oil cap

$

$

Not available

Poulan 530001949

O-Ring

Note: For 3/4" oil cap

$1.99

$

In Stock, only 2 left!

0
