3700 - Poulan Chainsaw External Power Unit Parts Diagram

Chainsaw

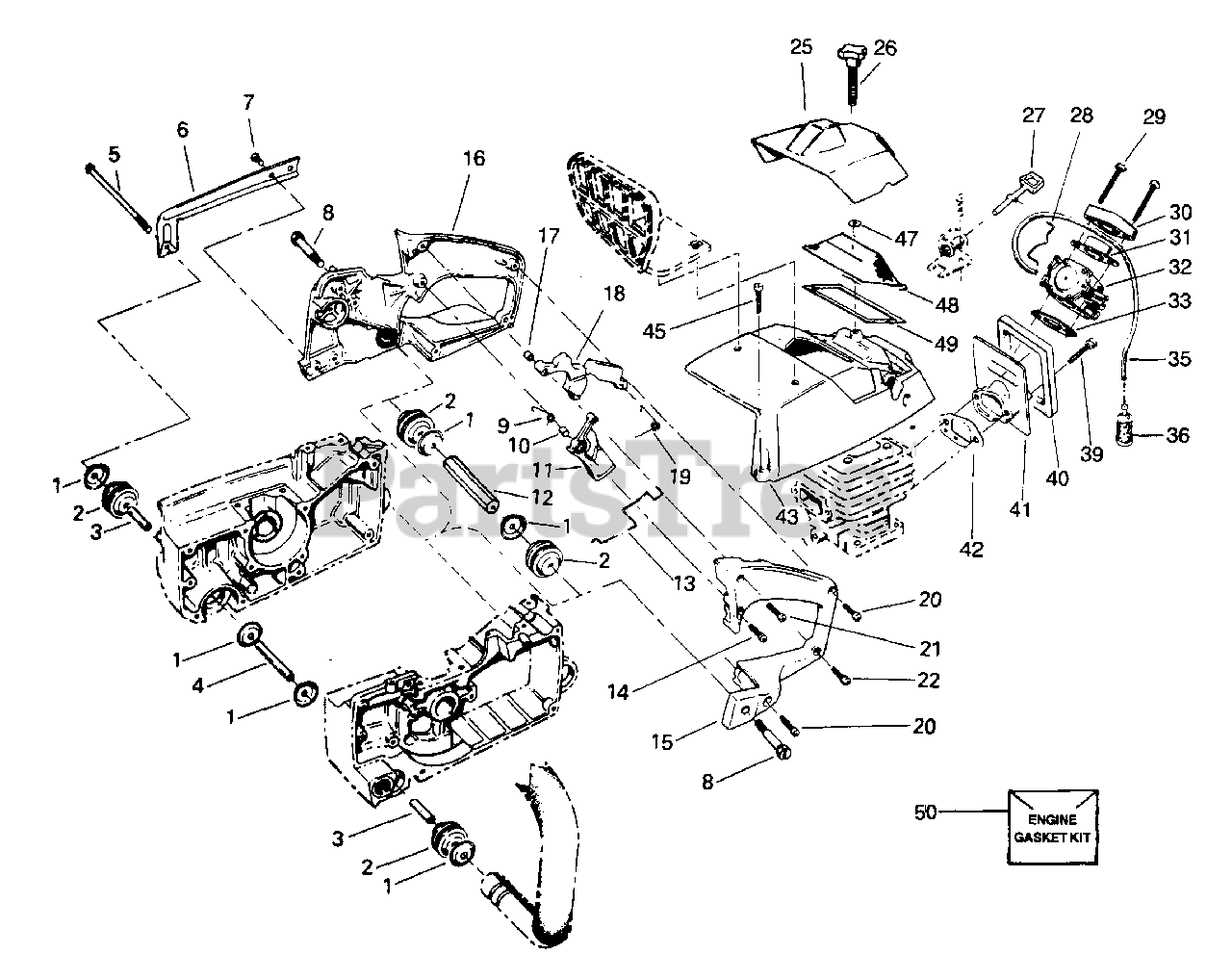

External Power Unit Parts Diagram

  • Title

1

Poulan 530024376

Cup Isolator

Note: See Drawing Note No. 3.

$4.99

$

Usually ships in 3-10 days

0

1

New Style Rear Isolation System

$

$

Not available

1

Old Style Rear Isolation System

$

$

Not available

2

Isolator - Powerhead Rear Handle

$

$

Not available

2

Poulan 530024373

Use on Guide Bar Powerhead

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530024528

Use on Bow Guide Powerhead

$

$

Not available

3

Poulan 530015362

Spacer - Front Handlebar Isolator Mount

$

$

Not available

4

Poulan 530015361

Spacer - Front Handlebar - Center - Isolator Mount

$

$

Not available

5

Poulan 530015391

Screw - 1/4-20 x 5-5/16

Note: Part Change

$15.99

$

Usually ships in 3-10 days

0

6

Handle Brace

Note: See Drawing Note No. 4.

$

$

Not available

7

Screw - 1/4-20 x 3/4 Button Hd.

Note: See Drawing Note No. 3.

$

$

Not available

8

Poulan 530015462

Shoulder Screw 1/4-20 - Isolator Mount

$

$

Not available

9

Poulan 530025469

Spring - Trigger

$

$

Not available

10

Poulan 530032059

Bushing - Trigger

$

$

Not available

11

Poulan 530026013

Throttle - Trigger

$

$

Not available

12

Poulan 530025258

Spacer - Isolator (Center)

$

$

Not available

13

Poulan 530024699

Wire Throttle

$

$

Not available

14

Poulan 530015369

Shoulder Screw - 10-24 x 5/8 - Fil. Hd. - Throttle Trigger

Note: Part Change

$

$

Not available

15

Rear Handle Left

Note: See Drawing Note No. 3.

$

$

Not available

16

Rear Handle Right

Note: See Drawing Notes No. 3 & 4.

$

$

Not available

17

Poulan 530032053

Bushing - Throttle Lock

$

$

Not available

18

Poulan 530024357

Throttle Lock

$

$

Not available

19

Poulan 530024378

Spring - Throttle Lock

$

$

Not available

20

Poulan 530015403

Screw - 10-24 x 13/16 - Fil. Hd.- Rear Handle

Note: Part Change

$3.99

$

In Stock, only 1 left!

0

21

Poulan 530015393

Screw - 8-32 x 13/16 - Fil. Hd. - Rear Handle Throttle Lock

$

$

Not available

22

Poulan 530015608

Screw - 8-32 x 9/16 - Fil. Hd. - Rear Handle Lower

Note: Part Change

$3.99

$

In Stock, Qty 5

0

25

Poulan 530025892

Cover - Carburetor

$

$

Not available

26

Poulan 530024482

Knob - Carburetor Cover

$7.49

$

In Stock, only 3 left!

0

27

Poulan 530025919

Choke Rod

$

$

Not available

28

Poulan 530024383

Wire - Choke

$

$

Not available

29

Poulan 530015245

Screw - 10-24 x 11/16 - Fil. Hd. Carburetor to Adaptor

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530019104

Seal - Adaptor Shield

$4.99

$

In Stock, only 2 left!

0

31

Poulan 530024349

Bracket - Carburetor Seal

$

$

Not available

32

Poulan 530035094

Carburetor

$

$

Not available

33

Poulan 530019099

Gasket - Carburetor to Adaptor

$

$

Not available

35

Poulan 530021028

Fuel Line

$

$

Not available

36

Poulan 530091878

Fuel Pick-up Ass'y.

Note: Part Change

$

$

Not available

39

Poulan 530015414

Screw - 10-24 x 13/16 - Hex Hd. Adaptor to Cylinder

$

$

Not available

40

Poulan 530019107

Seal - Carburetor Adaptor

$

$

Not available

41

Poulan 530024229

Carburetor Adaptor

$

$

Not available

42

Poulan 530019101

Gasket - Adaptor to Cylinder

$

$

Not available

43

Poulan 530025893

Cylinder Shield

Note: Part Change

$

$

Not available

45

Poulan 530015168

Screw - 10-24 x 5/8 - Fil. Hd. Cylinder Shield to Crankcase

$

$

Not available

47

Poulan 530024877

Retainer - Carb. Cover Knob

$3.99

$

In Stock, Qty 10

0

48

Poulan 530024548

Air Filter

$

$

Not available

49

Poulan 530019123

Gasket - Air Filter

Note: Part Change

$

$

Not available

50

Poulan 530069190

Kit - Engine Gasket

Note: Part Change; Optional

$

$

Not available
