3700 - Poulan Chainsaw Handlebar Assembly Parts Diagram

Chainsaw

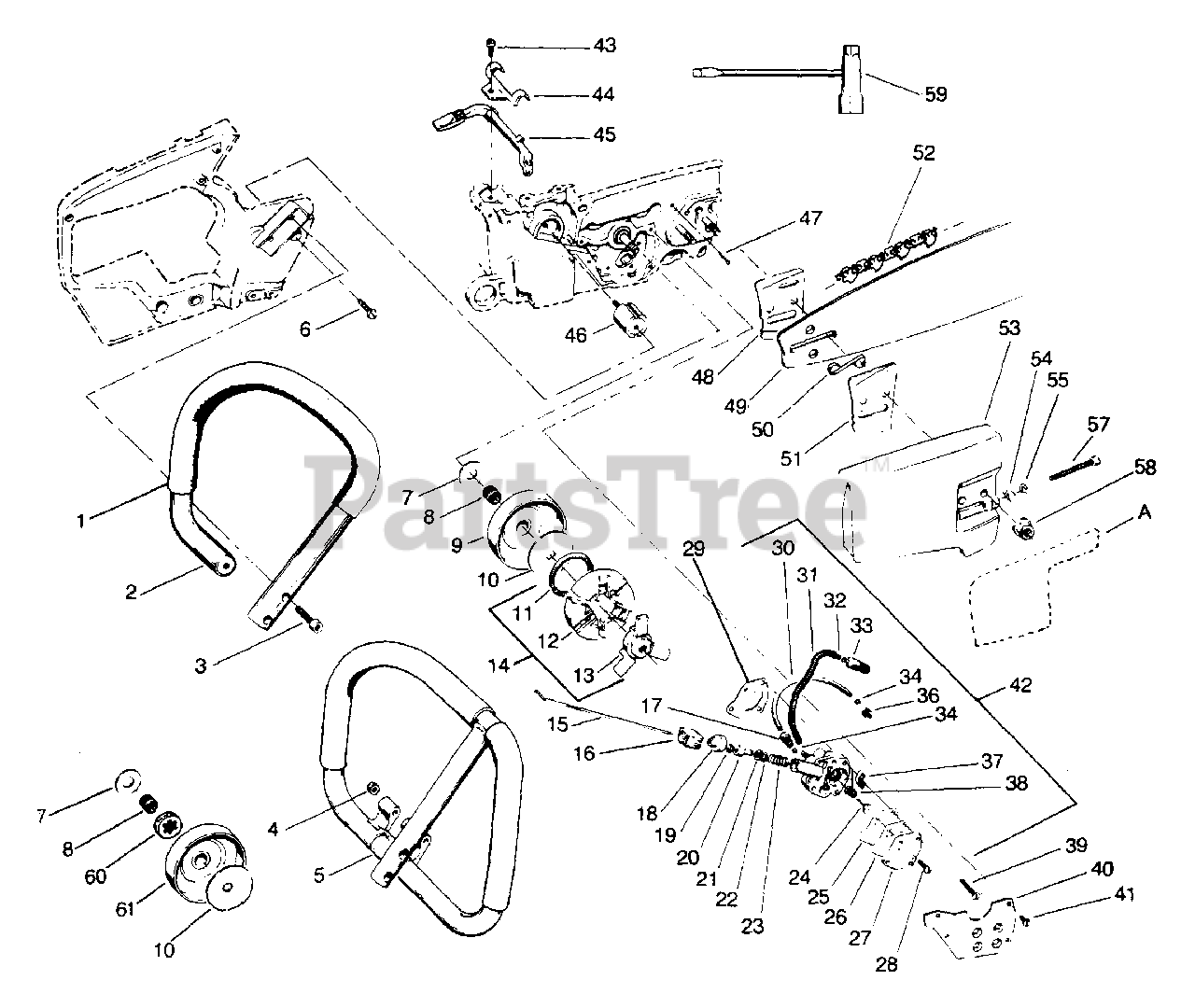

Handlebar Assembly Parts Diagram

  • Title

1

Poulan 530069171

Kit - Grip - Handlebar (Velvet)

$

$

Not available

2

Handlebar Assembly

$

$

Not available

2

Poulan 530022276

For new Style Handguard

Note: See "Handguard" illustration and parts list

$

$

Not available

2

Poulan 530022196

For Old Style Handguard

Note: See "Handguard" illustration and parts list

$

$

Not available

3

Poulan 530001711

Screw - 1/4-20 x 1 - Socket Hd. - Handlebar to Crankcase

$1.99

$

In Stock, only 1 left!

0

4

Poulan 530001615

Locknut - 1/4-20 - Wraparound Handle

$

$

Not available

5

Poulan 530069163

Handlebar - Wraparound Handle

Note: Optional for Guide Bar; Powerhead only

$

$

Not available

6

Poulan 530015406

Screw - 10-24 x 1/2 - Pan. Hd. - Side Isolator

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015357

Thrust Washer

$

$

Not available

8

Poulan 530032049

Bearing - Clutch

$

$

Not available

9

Poulan 48069

Drum & Sprocket Assembly

$

$

Not available

10

Poulan 530024465

Plate Clutch

$

$

Not available

11

Poulan 530024353

Spring - Clutch

$

$

Not available

12

Poulan 530024352

Shoe - Clutch

$

$

Not available

13

Poulan 530011625

Spider - Clutch

$

$

Not available

14

Poulan 530010291

Clutch Ass'y.

Note: (Incl. 11, 12 & 13)

$

$

Not available

15

Poulan 530024347

Rod - Manual Oiler

$

$

Not available

16

Poulan 530023373

Boot - Oiler Rod

Note: Engine Gasket Kit Contents, Key No. 50, "External Power Unit".

$

$

Not available

17

Poulan 530002615

Tubing Nut

$

$

Not available

18

Poulan 530023356

Cap - Oil Pump

$

$

Not available

19

Poulan 530001611

Retainer Ring

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530023357

Plunger

$

$

Not available

21

Poulan 530019029

"O" Ring - Quad Ring

$4.99

$

In Stock, Qty 5

0

22

Poulan 530015418

Washer - Oiler

$3.99

$

In Stock, only 4 left!

0

23

Poulan 530023358

Spring

$

$

Not available

24

Poulan 530022197

Ass'y. - Button & Pintle

$

$

Not available

25

Poulan 530024345

Diaphragm

$

$

Not available

26

Poulan 530019102

Gasket - Cover to Body

Note: Engine Gasket Kit Contents, Key No. 50, "External Power Unit".

$

$

Not available

27

Poulan 530025987

Cover - Pump

$

$

Not available

28

Poulan 530015297

Screw - 8-16 x 5/8 Pan. Hd. - Oil Pump Cover

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530019103

Gasket - Oiler Ass'y to Crankcase

Note: Engine Gasket Kit Contents, Key No. 50, "External Power Unit".

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530021038

Discharge Line Oil

Note: (Bulk 8115)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 24677

Spring-Oil Line Protector

$

$

Not available

32

Poulan 530021031

Oil Line

Note: (Bulk 8132)

$

$

Not available

32

Poulan 530010289

Oil Line Pick-up Assembly

Note: (Incl. 30 & 31)

$

$

Not available

33

Poulan 24676

Weight - Oil Pick-up Line
(Superseded to 532134149)

$15.99

$

Usually ships in 3-10 days

0

34

Poulan 530002464

Sleeve - 1/8 Tubing

$3.99

$

In Stock, only 1 left!

0

36

Poulan 530015422

Tubing Nut - Slotted

$

$

Not available

37

Poulan 24691

Foam - Oil Pump Vent
(Superseded to 532025036)

$27.99

$

Usually ships in 3-10 days

0

38

Poulan 530023699

Spring - Diaphragm

$

$

Not available

39

Poulan 530015401

Screw - 8-32 x 1 - Pan.Hd. - Pump to Crankcase

$

$

Not available

40

Poulan 530024399

Cover Plate - Oiler

$

$

Not available

41

Poulan 530015004

Screw - 8-32 x 5/16 - Pan. Hd. - Cover Plate

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530069062

Kit - Oil Pump Ass'y.

Note: Part Change; (Incl. 17 - 28, 30 - 33, one of 34 & 36 - 38); See Drawing Note No. 2.

$

$

Not available

43

Poulan 530015319

Screw - 10-24 x 3/8-Fil. Hd. - Bracket to Crankcase

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 530024351

Bracket Lever to Crankcase

$

$

Not available

45

Poulan 530024348

Lever - Manual Oiler

$

$

Not available

46

Isolator Side

$

$

Not available

46

Poulan 24225

Use on Guide Bar Powerhead

$

$

Not available

46

Poulan 530024637

Use on Bow Guide Powerhead

$

$

Not available

47

Poulan 530069185

Kit - Oil Vent Replacement

Note: Part Change

$

$

Not available

48

Poulan 530025925

Guide Bar Plate - Inner

$9.99

$

In Stock, Qty 7

0

49

Guide Bar and Bow Guide

Note: See "Bow Guide Assembly" and "Guide Bar Information" illustrations and parts lists.

$

$

Not available

50

Poulan 530055044

"S" Clip

Note: (See "Guide Bar Information" illustration and parts list.)

$

$

Not available

51

Poulan 530025924

Guide Bar Plate - Outer

$

$

Not available

52

Chain

Note: See "Guide Bar And Chain Information" for parts lists.

$

$

Not available

53

Bar Clamp Ass'y

Note: (Incl. 54 - 57)

$

$

Not available

53

Poulan 530011637

Use on Guide Bar Powerhead

$

$

Not available

53

Poulan 530011692

Use on Bar Guide Powerhead

$

$

Not available

54

Poulan 530025044

Pin-Bar Adj.
(Superseded to 530023064)

$8.99

$

Usually ships in 3-10 days

0

55

Poulan 530024419

"E" Ring Adj. Screw

$6.49

$

In Stock, Qty 10

0

57

Poulan 530015385

Screw - 10-24 x 2-5/16" Bar Adj.

$6.49

$

In Stock, Qty 8

0

58

Poulan 530015445

Flange Nut Mounting - 5/16-18
(Superseded to 530015251)

$

$

Not available

59

Poulan 530031107

Scrench

$

$

Not available

60

Poulan 530004746

Rim-Floating

$

$

Not available

61

Poulan 48063

Ass'y Drum & Sprocket

$

$

Not available

A

Poulan 530024759

Decal - Bar Clamp

$

$

Not available
