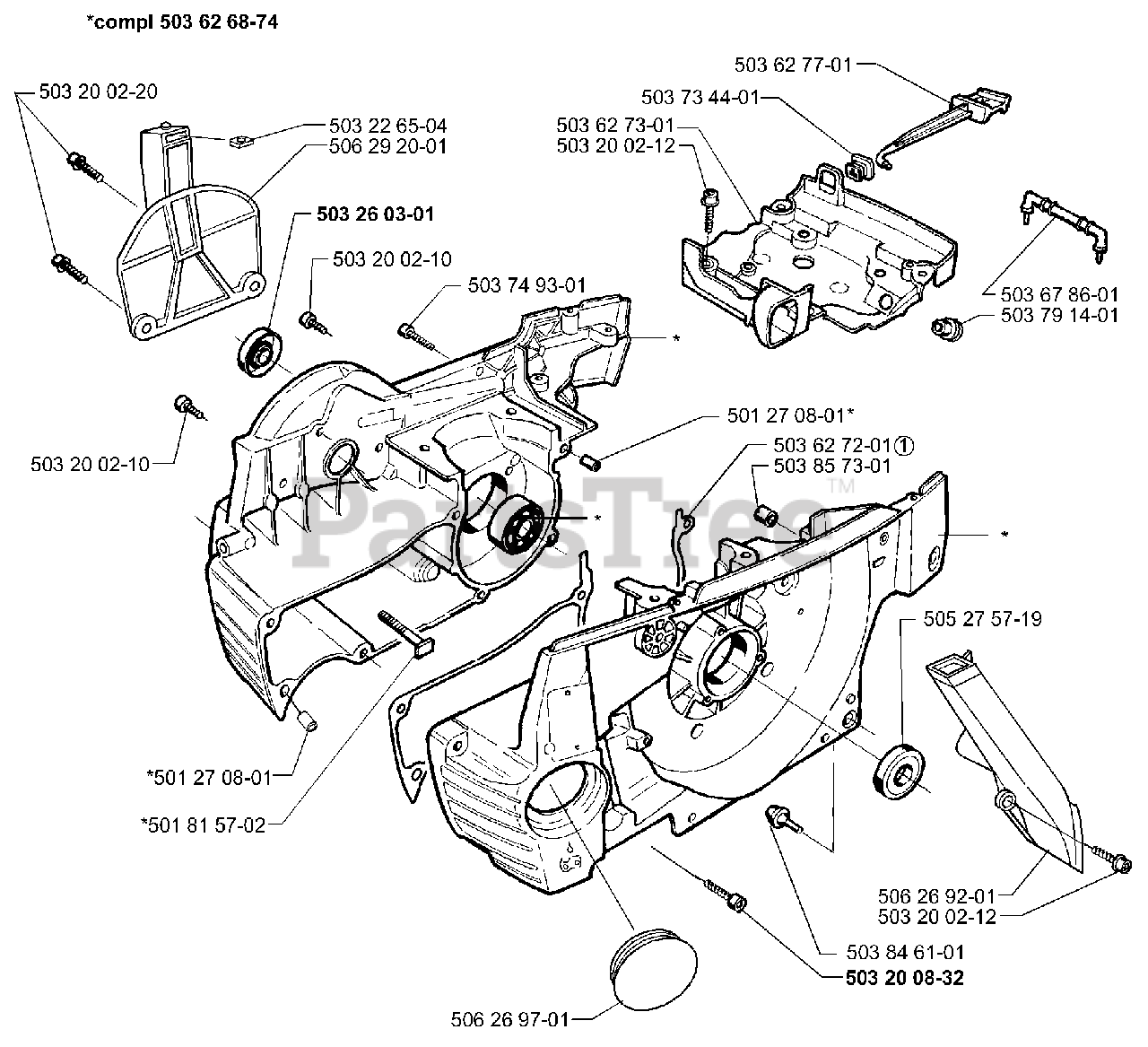

371 K EPA - Husqvarna Cut-Off Saw (1999-04) Crankcase Parts Diagram

Cut-Off Saw

Crankcase Parts Diagram

  • Title

503626874

Husqvarna 503626874

CRANKCASE
(Superseded to 503626819)

Note: (New Part)

$227.99

$

Usually ships in 3-10 days

0

503200220

Husqvarna 503200220

SCREW

$5.49

$

In Stock, Qty 12

0

503200210

Husqvarna 503200210

SCREW
(Superseded to 503200710)

$4.99

$

Usually ships in 3-10 days

0

501270801

Husqvarna 501270801

SLEEVE
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

501815702

Husqvarna 501815702

%BAR BOLT
(Superseded to 501815701)

$6.99

$

In Stock, Qty 14

0

506269701

Husqvarna 506269701

COVER

$9.49

$

In Stock, only 3 left!

0

506269201

Husqvarna 506269201

JET

$

$

Not available

503200212

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$4.99

$

In Stock, Qty 7

0

503846101

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 9

0

503200832

Husqvarna 503200832

SCREW

Note: (New Part)

$

$

Not available

505275719

Husqvarna 505275719

SEAL RING

$22.99

$

In Stock, Qty 8

0

501270801

Husqvarna 501270801

SLEEVE
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

503857301

Husqvarna 503857301

PROTECTOR

$4.99

$

Usually ships in 3-10 days

0

503627201

Husqvarna 503627201

GASKET

Note: (Included in Set of Gaskets 503647201

$5.99

$

In Stock, only 2 left!

0

503678601

Husqvarna 503678601

SPACER
(Superseded to 579468901)

$4.99

$

In Stock, only 2 left!

0

503791401

Husqvarna 503791401

Grommet
(Superseded to 537095401)

$5.99

$

In Stock, only 3 left!

0

503627701

Husqvarna 503627701

CONTROL

$7.99

$

In Stock, only 2 left!

0

503734401

Husqvarna 503734401

GROMMET

$4.99

$

In Stock, Qty 10

0

503627301

Husqvarna 503627301

BASE
(Superseded to 588093701)

$

$

Not available

503200212

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$4.99

$

In Stock, Qty 7

0

506292001

Husqvarna 506292001

SUPPORT

$

$

Not available

503260301

Husqvarna 503260301

SEAL

Note: (New Part)

$22.99

$

In Stock, Qty 6

0

503200210

Husqvarna 503200210

SCREW
(Superseded to 503200710)

$4.99

$

Usually ships in 3-10 days

0

503226504

Husqvarna 503226504

NUT

$5.49

$

In Stock, Qty 20+

0

503749301

Husqvarna 503749301

SCREW

$3.49

$

In Stock, Qty 6

0

Husqvarna 503647201

GASKET SET

$20.99

$

In Stock, only 1 left!

0
