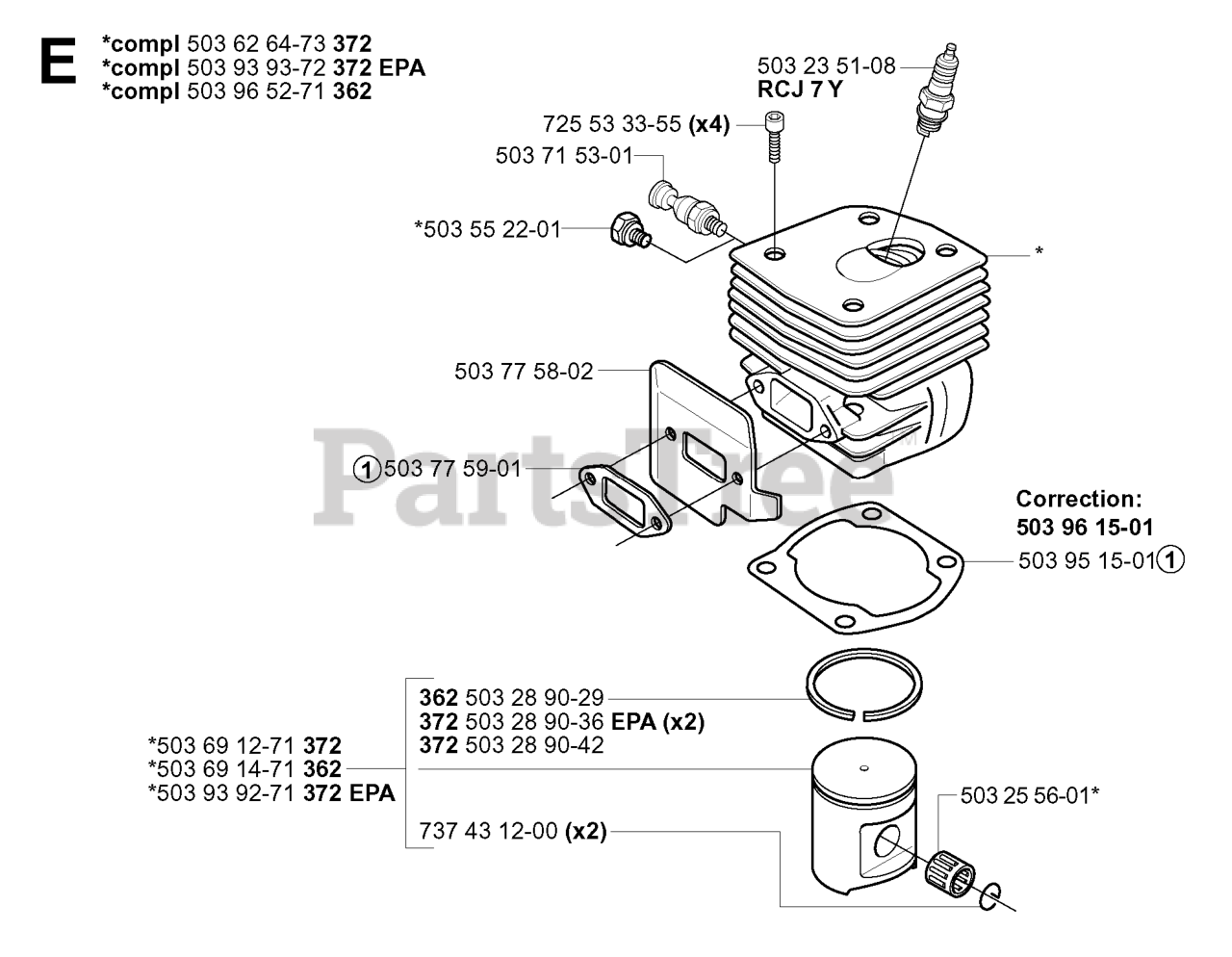

372 XP/XPG - Husqvarna Chainsaw (SN: 20034000001 - 20051800000) CYLINDER PISTON 2 Parts Diagram

Chainsaw

CYLINDER PISTON 2 Parts Diagram

  • Title

503 96 52-71

Husqvarna 503965271

CYLINDER COMPLETE

Note: 362

$

$

Not available

503 77 59-01

Husqvarna 503775901

GASKET

$7.99

$

In Stock, Qty 20+

0

503 62 64-73

Husqvarna 503626473

CYLINDER ASSY
(Superseded to 593665502)

Note: 372

$

$

Not available

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ 7 Y

$3.99

$

In Stock, Qty 20+

0

503 28 90-36

Husqvarna 503289036

RP PISTON RING
(Superseded to 576818401)

Note: 372 EPA

$20.99

$

Usually ships in 3-10 days

0

503 25 56-01

Husqvarna 503255601

SUPPORT BUSHING

$17.99

$

In Stock, Qty 7

0

503 93 93-72

Husqvarna 503939372

CYLINDER ASSY
(Superseded to 593665504)

Note: 372 EPA

$284.99

$

In Stock, only 1 left!

0

503 69 12-71

Husqvarna 503691271

PISTON ASSY

Note: 372

$113.99

$

Usually ships in 3-10 days

0

503 77 58-02

Husqvarna 503775802

DEFLECTOR

$6.99

$

Usually ships in 3-10 days

0

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 5

0

503 71 53-01

Husqvarna 503715301

DECOMPRESSION VALVE

$37.99

$

In Stock, only 3 left!

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$12.99

$

In Stock, only 1 left!

0

503 69 14-71

Husqvarna 503691471

PISTON ASSY

Note: 362

$

$

Not available

503 28 90-42

Husqvarna 503289042

PISTON RING

Note: 372

$

$

Not available

503 96 15-01

Husqvarna 503961501

GASKET

Note: CORRECTION:

$7.99

$

In Stock, Qty 20+

0

503 93 92-71

Husqvarna 503939271

PISTON CPL 50 MM

Note: 372 EPA

$

$

Not available

503 28 90-29

Husqvarna 503289029

%PISTON RING
(Superseded to 503289050)

Note: 362

$14.99

$

In Stock, only 2 left!

0

737 43 12-00

Husqvarna 737431200

WRIST PIN CLIP

$3.49

$

In Stock, only 4 left!

0
