372 XP/XPG - Husqvarna Chainsaw (SN: 20070100001 - 20101800000) CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

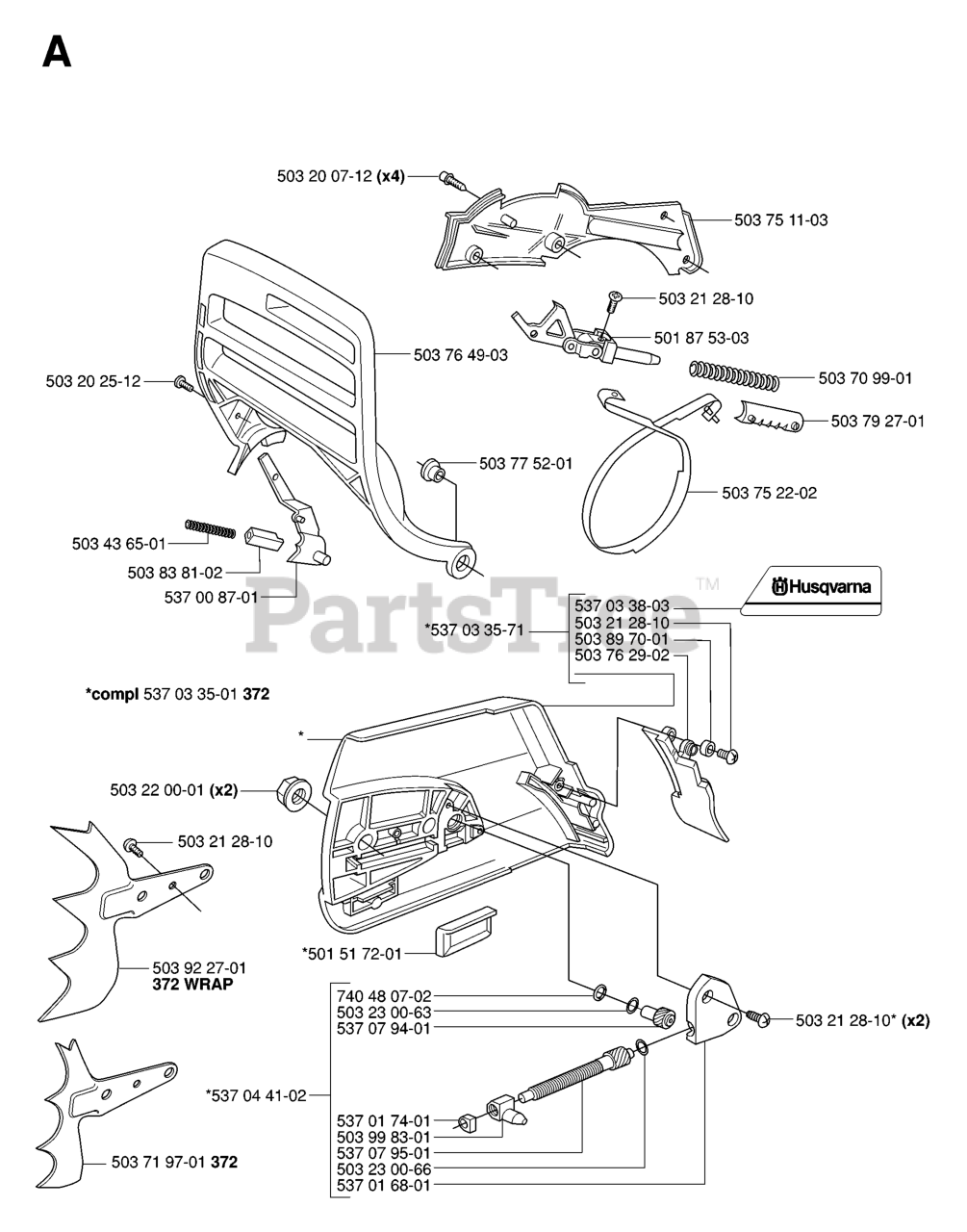

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

503 23 00-63

Husqvarna 503230063

WASHER

$3.99

$

In Stock, Qty 12

0

501 87 53-03

Husqvarna 501875303

KNEE LINK

$26.99

$

In Stock, only 1 left!

0

537 01 74-01

Husqvarna 537017401

SLEEVE

$5.99

$

In Stock, Qty 20+

0

503 20 25-12

Husqvarna 503202512

SCREW

$4.99

$

In Stock, Qty 8

0

503 21 28-10

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 8

0

503 83 81-02

Husqvarna 503838102

CATCH

$6.99

$

In Stock, only 3 left!

0

503 99 83-01

Husqvarna 503998301

PAWL

$9.49

$

In Stock, only 2 left!

0

537 04 41-02

Husqvarna 537044102

KIT-CHAIN TENSIONER

$45.99

$

In Stock, only 2 left!

0

503 70 99-01

Husqvarna 503709901

BRAKE SPRING
(Superseded to 503709902)

$6.99

$

In Stock, only 1 left!

0

537 03 38-03

Husqvarna 537033803

DECAL

$4.99

$

In Stock, only 2 left!

0

537 03 35-71

Husqvarna 537033571

CHAIN BRAKE COVER

$62.99

$

In Stock, only 2 left!

0

503 43 65-01

Husqvarna 503436501

LOCK SPRING

$3.49

$

In Stock, Qty 20+

0

503 76 49-03

Husqvarna 503764903

HANDGUARD

$37.99

$

In Stock, only 2 left!

0

503 92 27-01

Husqvarna 503922701

FELLING DOG

$28.99

$

In Stock, only 2 left!

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.49

$

In Stock, Qty 20+

0

537 00 87-01

Husqvarna 537008701

BRAKE LEVER

$20.99

$

In Stock, only 2 left!

0

503 76 29-02

Husqvarna 503762902

PROTECTOR

$13.99

$

In Stock, only 3 left!

0

537 01 68-01

Husqvarna 537016801

COVER

$6.99

$

In Stock, Qty 18

0

740 48 07-02

Husqvarna 740480702

O-RING

$4.99

$

In Stock, Qty 9

0

537 07 94-01

Husqvarna 537079401

RP ADJUSTER
(Superseded to 537079402)

$14.99

$

In Stock, Qty 12

0

503 20 07-12

Husqvarna 503200712

SCREW

$4.99

$

In Stock, only 4 left!

0

503 75 22-02

Husqvarna 503752202

BRAKE BAND

$13.99

$

In Stock, only 2 left!

0

503 77 52-01

Husqvarna 503775201

BUSHING

$9.49

$

In Stock, Qty 10

0

503 79 27-01

Husqvarna 503792701

%SUPPORT
(Superseded to 503792702)

$5.99

$

In Stock, only 2 left!

0

537 03 35-01

Husqvarna 537033501

CHAIN BRAKE COVER

$

$

Not available

503 21 28-10

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 8

0

503 75 11-03

Husqvarna 503751103

COVER

$7.99

$

In Stock, only 1 left!

0

501 51 72-01

Husqvarna 501517201

CHAIN GUIDE

$5.99

$

In Stock, Qty 12

0

537 07 95-01

Husqvarna 537079501

ADJUSTER
(Superseded to 537079502)

$20.99

$

In Stock, only 2 left!

0

503 89 70-01

Husqvarna 503897001

WASHER

$5.99

$

In Stock, Qty 12

0

503 23 00-66

Husqvarna 503230066

WASHER

$3.49

$

In Stock, only 1 left!

0

503 71 97-01

Husqvarna 503719701

SPIKE OUTER

$20.99

$

In Stock, only 2 left!

0
