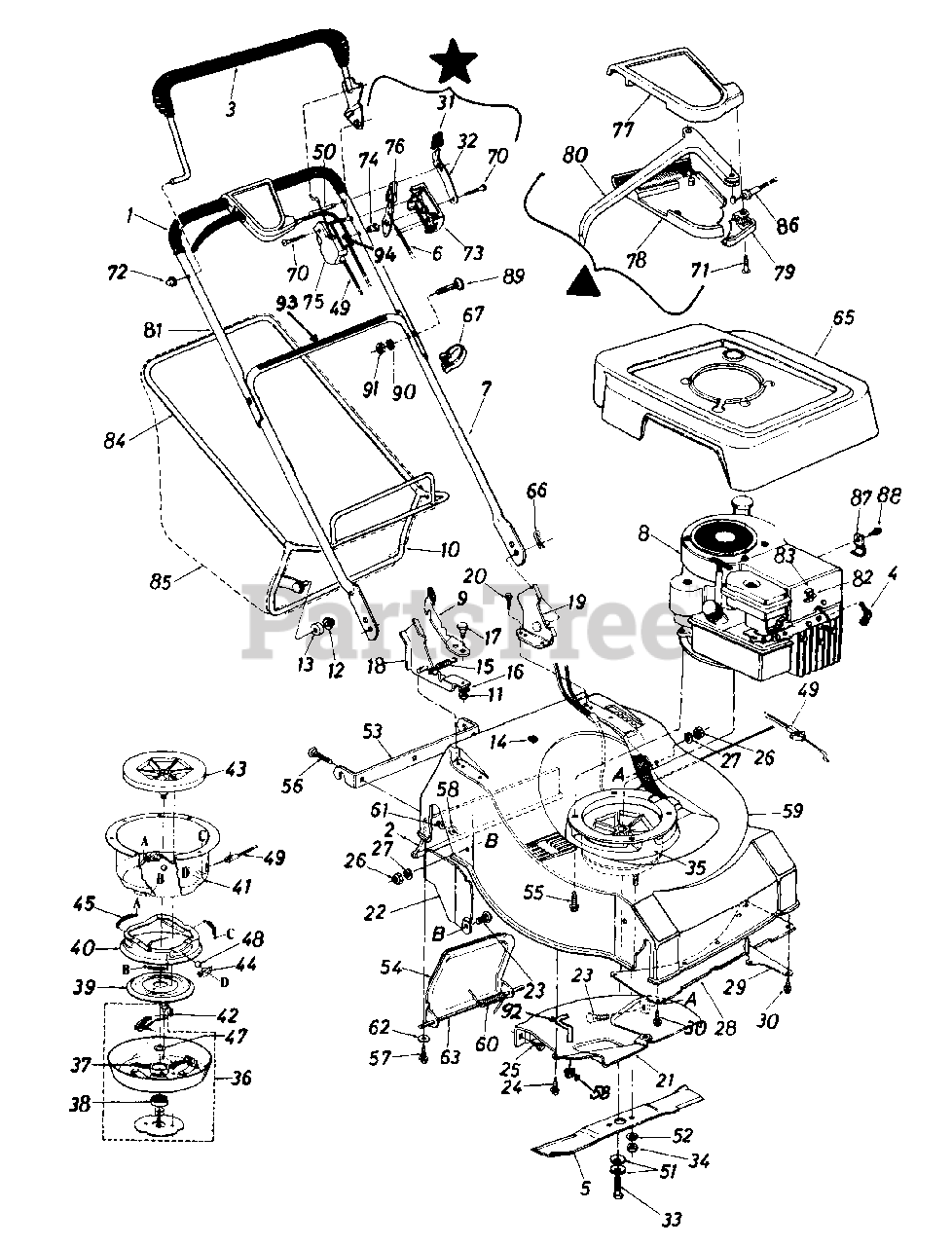

373 (373123) - Cub Cadet Walk-Behind Mower (1983) Handle Bracket, Clutch Blade Housing And Shroud Assemblies Parts Diagram

Walk-Behind Mower

Handle Bracket, Clutch Blade Housing And Shroud Assemblies Parts Diagram

  • Title

Cub Cadet 753-0361

Control Housing Complete

Note: (Incl. Ref. Nos. 31, 32, 50, 70, 73, 74, 75, 76 & 94)

$

$

Not available

Cub Cadet 753-0362

Clutch Control Housing Complete

Note: (Incl. Ref. Nos. 71, 77, 78, 79 & 80)

$

$

Not available

1

Cub Cadet 718-0145

Grip

$

$

Currently unavailable

2

Cub Cadet 731-0585

Rear Flap Ass'y.

$

$

Not available

3

Cub Cadet 731-0609

Control Handle - L.H.

Note: Code N

$

$

Not available

4

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

5

Cub Cadet 742-0222

22" Blade

$

$

Not available

6

Cub Cadet 746-0472

Throttle Wire - 58.0"
(Superseded to 946-0674A)

$19.99

$

In Stock, only 2 left!

0

7

Cub Cadet 749-0505

Lower Handle
(Superseded to 749-0907B)

$53.99

$

In Stock, only 2 left!

0

8

Engine

$

$

Not available

9

Cub Cadet 14845

Grass Catcher Lock Lever

$

$

Not available

10

Cub Cadet 14582

Grass Catcher Lower Frame Ass'y.

Variations

14582-0637

Cub Cadet 14582-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0100

Push Nut 3/8" Rod

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 731-0430

Plastic Roller

$

$

Not available

14

Cub Cadet 731-0564

Plug

$

$

Not available

15

Cub Cadet 732-0357

Extension Spring
(Superseded to 932-0357A)

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 14593

Handle Brkt. Ass'y. - R.H.

$

$

Not available

19

Cub Cadet 14597

Handle Brkt. Ass'y. - L.H.

$

$

Not available

20

Cub Cadet 710-0588

Hex Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

21

Cub Cadet 15248

Rear Baffle - L.H.

$

$

Currently unavailable

22

Cub Cadet 15254

Side Baffle

$

$

Currently unavailable

23

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

24

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

25

Cub Cadet 710-0782

Hex Wash. Hd. Drill Scr. 1/4 x .75" Lg.

$

$

Not available

26

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

28

Cub Cadet 15568

Front Cover Plate
(Superseded to 15568A)

$

$

Not available

29

Cub Cadet 15253

Left Strap

$

$

Currently unavailable

30

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

31

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$14.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0401

Lockout Spring

$

$

Not available

33

Cub Cadet 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

Note: Code N

$7.49

$

In Stock, only 2 left!

0

34

Cub Cadet 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

Note: Code N

$4.99

$

In Stock, only 2 left!

0

35

Cub Cadet 717-0485

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

36

Cub Cadet 14300

Clutch Blade Housing Ass'y.

$

$

Not available

37

Cub Cadet 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

38

Cub Cadet 741-0124

Ball Brg. .669" I.D. x 1.574" O.D. x .47
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

39

Cub Cadet 14304

Clutching Cone

$

$

Not available

40

Cub Cadet 14305

Brake Cup Cone

$

$

Currently unavailable

41

Cub Cadet 14307

Clutch Housing

$

$

Not available

42

Cub Cadet 710-0875

Hex TT-Tap L-Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

43

Cub Cadet 719-0256

Fan Adapter

$

$

Not available

44

Cub Cadet 731-0520

Ball Block

$

$

Not available

45

Cub Cadet 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

47

Cub Cadet 736-0333

Fl-Wash. .690" I.D. x 1.060 O.D. x .030

$

$

Not available

48

Cub Cadet 741-0326

Steel Ball .500" Dia.

$

$

Not available

49

Cub Cadet 746-0400

Clutch Cable - 46.0"

$

$

Not available

50

Cub Cadet 731-0607

Lock Pin .314" Dia. x 1.70

$

$

Not available

51

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 6

0

52

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

53

Cub Cadet 14012

Grass Catcher Hitch Brkt.

$

$

Not available

54

Cub Cadet 15245

Chute Door

$

$

Currently unavailable

55

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 9

0

57

Cub Cadet 710-0776

Hex Wash. Hd. "AB"-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

58

Cub Cadet 712-0271

Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

59

Cub Cadet 719-0253

22" Deck Ass'y.

$

$

Currently unavailable

60

Cub Cadet 732-0408

Torsion Spring .34" I.D. x 2.38" Lg.

$

$

Not available

61

Cub Cadet 736-0173

Fl-Wash. .281" I.D. x .73" O.D. x .063

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0211

Fl-Wash. .285" I.D. x 1.25" O.D. x .060

$7.49

$

In Stock, only 2 left!

0

63

Cub Cadet 747-0353

Rod .25" Dia. x 8.25" Lg.

$

$

Not available

65

Cub Cadet 15492

Shroud Ass'y.

Note: Code N

$

$

Currently unavailable

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 10

0

67

Cub Cadet 726-0192

Cable Tie

$

$

Not available

70

Cub Cadet 710-0796

Truss Mach. B-Tap Scr. #12 x 1.50" Lg.

$5.99

$

In Stock, Qty 6

0

71

Cub Cadet 710-0841

Flat C-Sunk AB-Tap Scr. #10 x .75" Lg.

$4.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 726-0135

Cap Speed Nut 5/16" Rod

$7.49

$

In Stock, Qty 10

0

73

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

74

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

75

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

76

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$10.99

$

In Stock, Qty 13

0

77

Cub Cadet 731-0617

Control Cover Half - Upper
(Superseded to 731-0617A)

Note: Code N

$

$

Not available

78

Cub Cadet 731-0618

Control Cover Half - Lower
(Superseded to 753-0833)

Note: Code N

$53.99

$

In Stock, only 2 left!

0

79

Cub Cadet 731-0619

Cable Mtg. Cap

Note: Code N

$

$

Not available

80

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

Note: Code N

$16.99

$

In Stock, Qty 6

0

81

Cub Cadet 749-0437

Upper Handle

$

$

Currently unavailable

82

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38
(Superseded to 910-0429)

Note: Code N

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 751-0333

Casing Clamp

$

$

Not available

84

Cub Cadet 749-0278

Grass Catcher Upper Frame

$

$

Not available

85

Cub Cadet 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

86

Cub Cadet 746-0463

Self-Propelled Clutch Cable - 50.0" Lg.

$

$

Not available

87

Cub Cadet 12894

Casing Clamp

$

$

Not available

88

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

90

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

91

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

92

Cub Cadet 711-0629

Pulley Scraper Finger

$

$

Currently unavailable

93

Cub Cadet 777-3453

Control Label - Handle

$

$

Currently unavailable

94

Cub Cadet 777-3455

Control Label - Throttle

$

$

Not available
