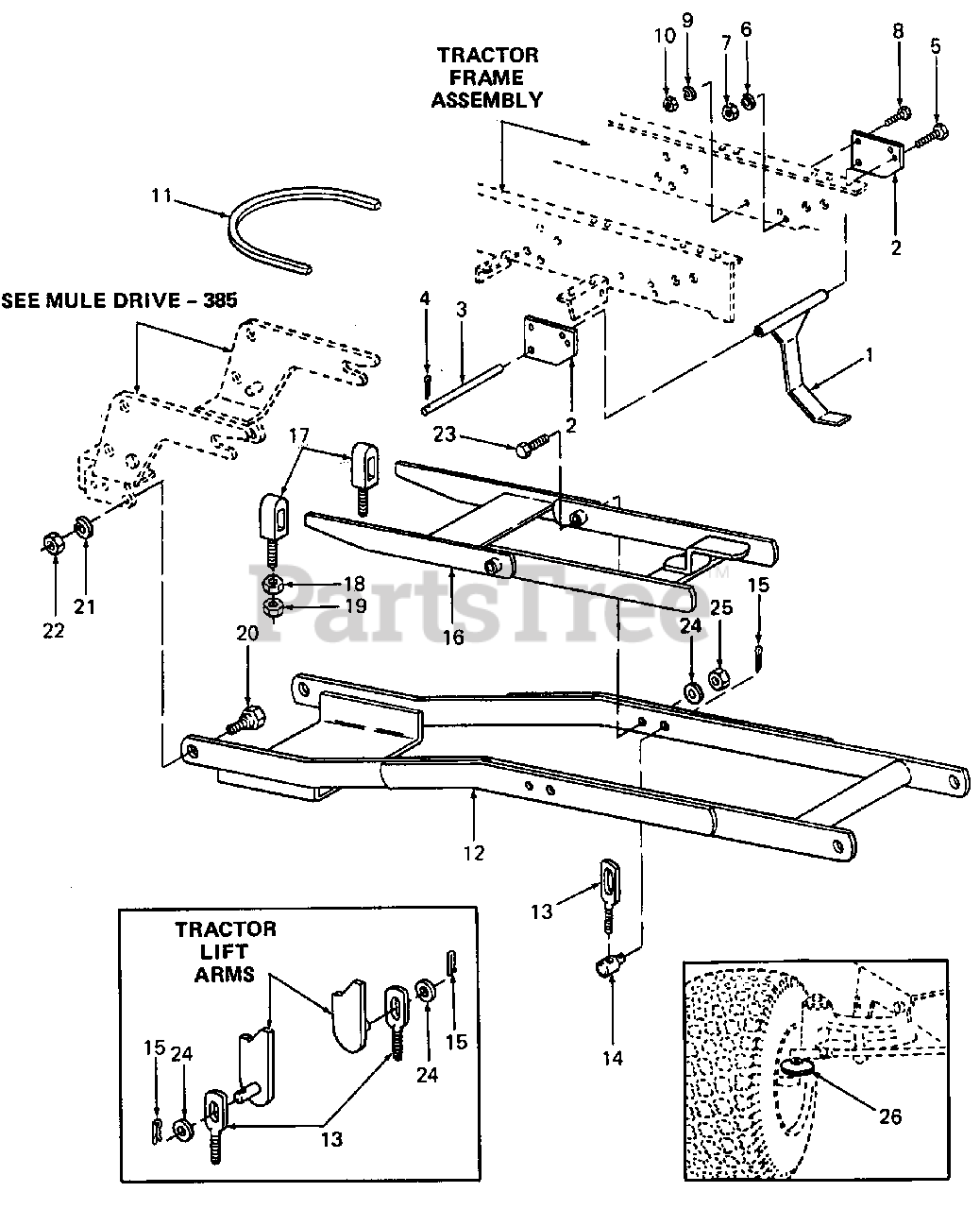

374 (190-374-100) - Cub Cadet 60" Mower Deck att Hitch & Mounting Parts Diagram

60" Mower Deck

Hitch & Mounting Parts Diagram

  • Title

1

Cub Cadet HA-14496

Bar, Rear Stabilizer

$

$

Not available

2

Cub Cadet HA-14300

Plate, Anchor

$

$

Not available

3

Cub Cadet HA-12359

Pin

$

$

Not available

4

Cub Cadet HA-3341

Pin, Quick Attach

$

$

Not available

5

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.75 Lg GR5

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 9

0

7

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 754-3023

Belt, Mule Drive
(Superseded to 954-3023)

$87.99

$

In Stock, only 1 left!

0

12

Cub Cadet HA-14469

Bracket, Mower Mounting

$

$

Not available

13

Cub Cadet 719-3010

Link, Adjustable
(Superseded to 919-3010)

$

$

Not available

14

Cub Cadet 711-3021

Ferrule, Adjustment
(Superseded to 911-3021)

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet HA-14473

Bracket, Mower Lift

$

$

Not available

17

Cub Cadet 719-3009

Hanger, Front Mower Support
(Superseded to 919-3009)

$73.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3015

Nut, Hex Jam, 5/8-11 GR5

$4.99

$

In Stock, Qty 16

0

19

Cub Cadet 712-3016

Nut, Hex Insert Top Lock, 5/8-11 GR5

$7.49

$

In Stock, Qty 14

0

20

Cub Cadet 738-3004

Bolt, Shoulder

$16.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 710-0182

Screw, Hex Cap, 1/2-13 X 3.0 Lg GR5
(Superseded to 710-0182A)

$8.49

$

In Stock, Qty 15

0

24

Cub Cadet 736-0272

Washer, Flat, .531 X 1.062 X .074 Thk

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$4.49

$

In Stock, Qty 13

0

26

Cub Cadet HA-15178

Washer, Wheel Stop

$

$

Not available
