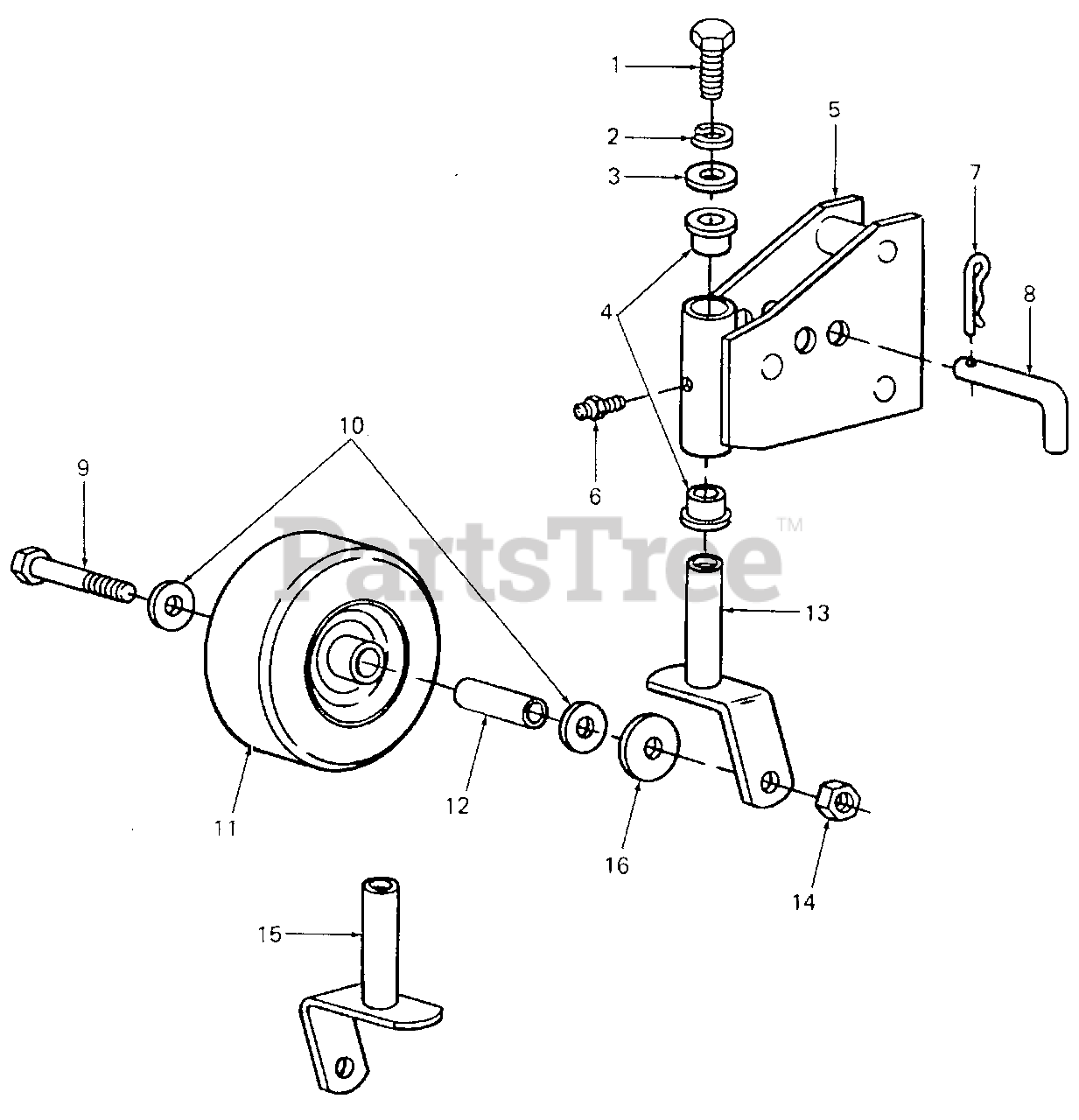

374 (190-374-100) - Cub Cadet 60" Mower Deck att Pivoting Gauge Wheel Parts Diagram

60" Mower Deck

Pivoting Gauge Wheel Parts Diagram

  • Title

1

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 8

0

2

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-3054

Washer, Flat, .438 ID X 1.00 OD X .064 Thk
(Superseded to 936-0406)

$7.49

$

In Stock, Qty 7

0

4

Cub Cadet HA-12976

Bushing, Flange
(Superseded to 941-0339)

$13.99

$

In Stock, Qty 20+

0

5

Cub Cadet HA-13875

Mounting Assy, Front Caster

$

$

Not available

6

Cub Cadet HA-5074

Fitting, Grease
(Superseded to 937-0146)

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$7.49

$

In Stock, only 1 left!

0

8

Cub Cadet HA-14359

Pin, Front Wheel Axle

$

$

Not available

9

Cub Cadet 710-0786

Screw, Hex Cap, 1/2-13 X 4.0 Lg GR5

$17.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HA-GM120390

Washer, Flat, .562 ID X 1.375 OD X .109 Thk
(Superseded to 736-3042)

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HA-14501

Wheel, Front Gauge, 6"
(Superseded to 759-3609A)

$83.99

$

In Stock, only 2 left!

0

12

Cub Cadet HA-5579

Spacer, Wheel

$

$

Not available

13

Cub Cadet HA-13880

Bracket, Front Caster - RH
(Superseded to HA-13880-0498)

Variations

Cub Cadet HA-13880-0498

CASTER-FRONT FROM - OLD CUB YELLOW (0498)

$

$

Not available

$

$

14

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet HA-13879

Bracket, Front Caster - LH
(Superseded to HA-13879-0498)

Variations

Cub Cadet HA-13879-0498

CASTER-FRONT FROM - OLD CUB YELLOW (0498)

$

$

Not available

$

$

16

Cub Cadet HA-14306

Washer, Flat

$

$

Not available
