37492 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler

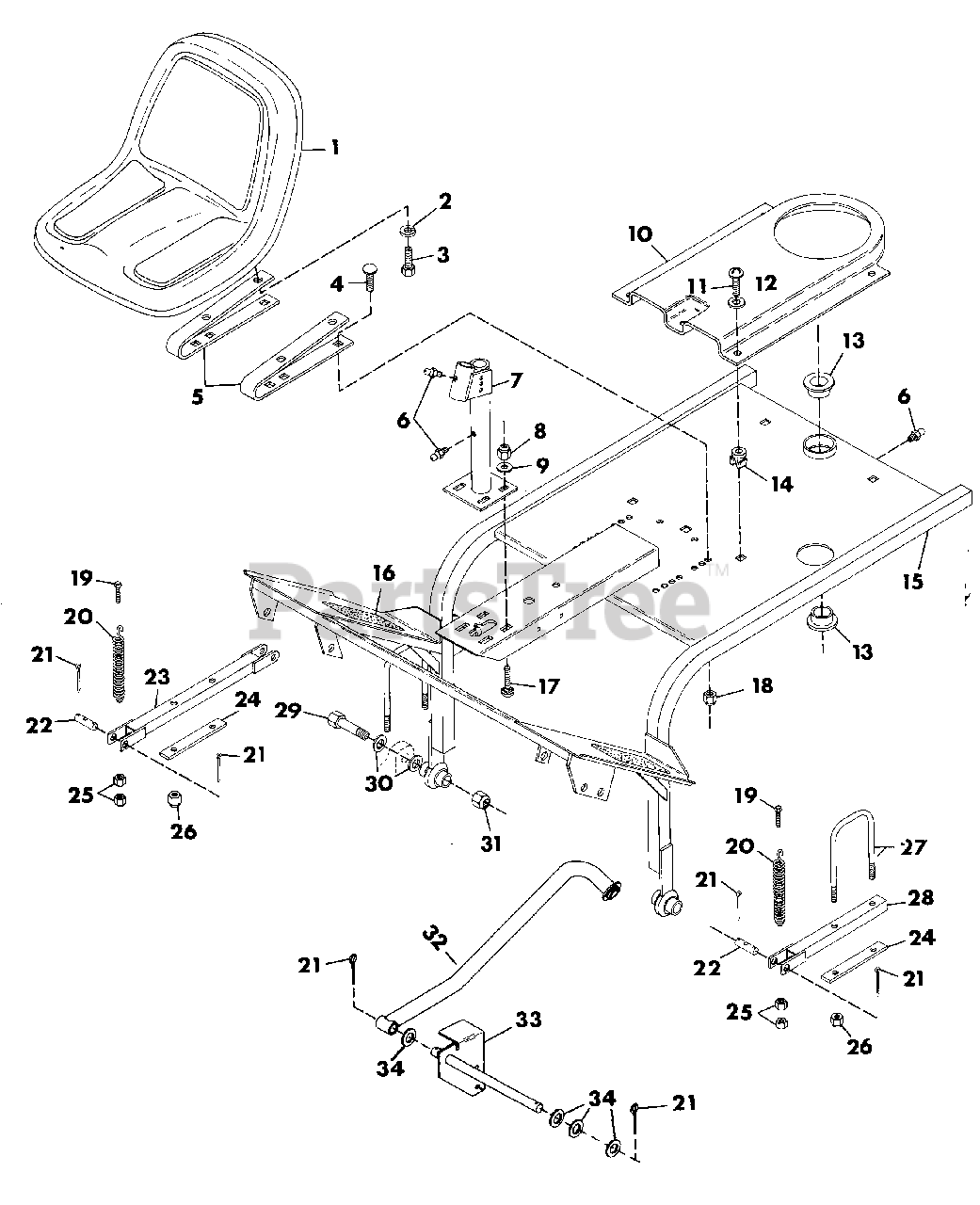

MAIN FRAME Parts Diagram

  • Title

1

Gravely 021423

SEAT KIT W/ SWITCH
(Superseded to 59100200)

$

$

Not available

2

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 035406

SPR,SEAT
(Superseded to 20624000)

$

$

Not available

6

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

7

Gravely 034515

TUBE,STEERING
(Superseded to 08908200)

$

$

Not available

8

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 035412

CVR,CHAIN
(Superseded to 20624300)

$

$

Not available

11

Gravely 160536

SCR-MCH .25-20X.625 RDHD
(Superseded to 06113400)

$

$

Not available

12

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035170

BSHG-FLG 1.503X1.754X1.500X2.0
(Superseded to 05525500)

$

$

Not available

14

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 035402

WLDMT,FRAME OFC
(Superseded to 21238900)

$

$

Not available

16

Gravely 011653

CVR,LARGE FOOTBOARD
(Superseded to 09023200)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 014718

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 011865

SPRG,TRIP B/HARDY B-551
(Superseded to 20083400)

$

$

Not available

21

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 035660

PIN,PVT
(Superseded to 21241800)

$

$

Not available

23

Gravely 035451

WLDMT,LIFT ARM
(Superseded to 21240600)

$

$

Not available

24

Gravely 035632

PLT,AXLE
(Superseded to 08922600)

$

$

Not available

25

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 272739

NUT,LK .625-188 HEX W/INSR
(Superseded to 06528000)

$

$

Not available

27

Gravely 035516

BLT,U
(Superseded to 09027700)

$

$

Not available

28

Gravely 035661

ARM,SPR PVT
(Superseded to 21241900)

$

$

Not available

29

Gravely 271778

BLT-HEX .75-10X3.75
(Superseded to 05939700)

$

$

Not available

30

Gravely 131000

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

31

Gravely 456007

NUT-LK-NYL .75-10 YWZC
(Superseded to 06540800)

$6.99

$

Usually ships in 4-12 days

0

32

Gravely 037045

WLDMT,LIFT LEVER
(Superseded to 08925200)

$

$

Not available

33

Gravely 037042

WLDMT,LIFT BRACKET
(Superseded to 08924900)

$

$

Not available

34

Gravely 421879

WSHR-FL-STL .656X1.250X.10 YZC
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0
