37492 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler (SN: 000101 & Above) STEERING Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler

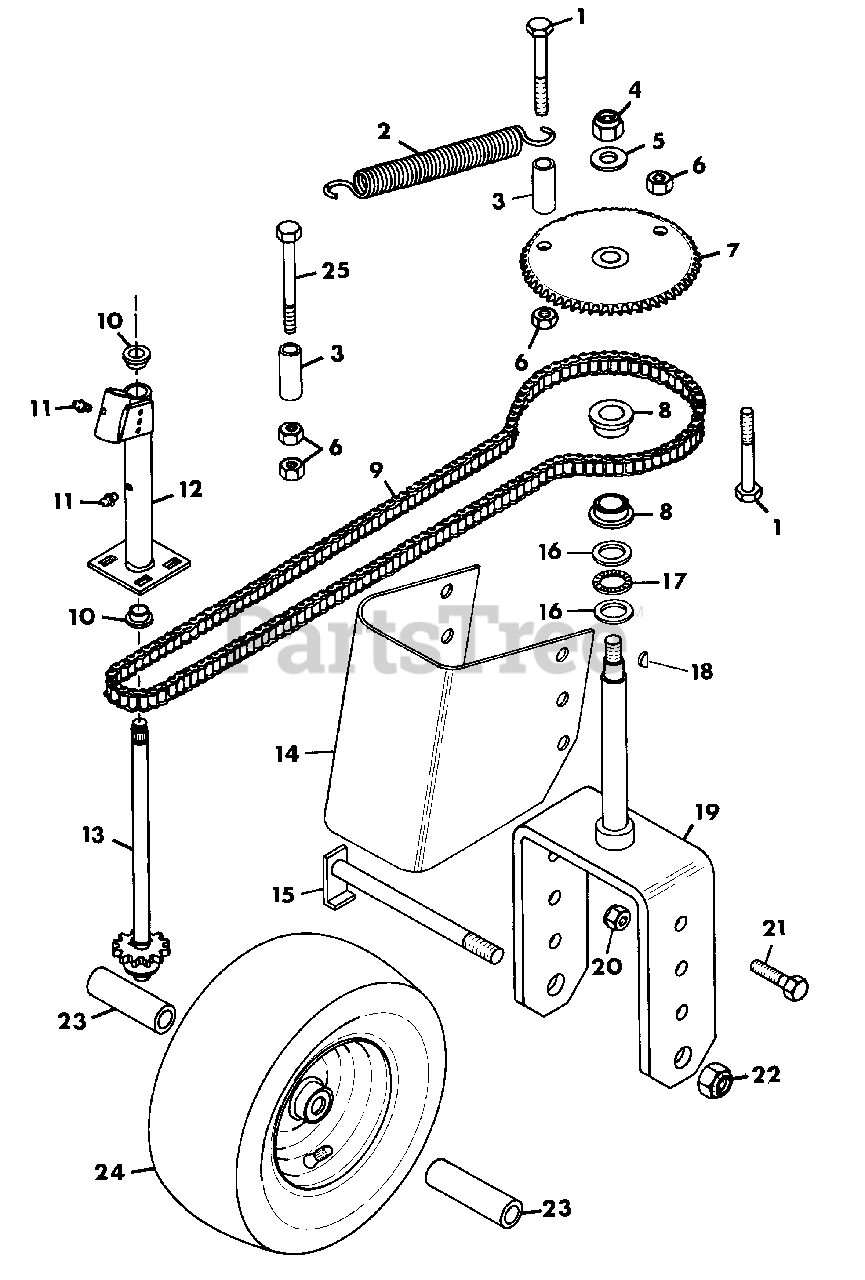

STEERING Parts Diagram

  • Title

1

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 031689

SG-LIFT .140X1.25X8.46
(Superseded to 08330800)

$

$

Not available

3

Gravely 022414

SPACER .510X.750X2.02 ST
(Superseded to 08522700)

$22.99

$

In Stock, Qty 9

0

4

Gravely 273670

NUT-LK .875-9 HEX W/INSRT
(Superseded to 06528100)

$

$

Not available

5

Gravely 131001

WSHR-FL-STL .969X2.250X.165
(Superseded to 06429700)

$

$

Not available

6

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 035626

SPRKT, 60T #40
(Superseded to 21241551)

$

$

Not available

8

Gravely 035170

BSHG-FLG 1.503X1.754X1.500X2.0
(Superseded to 05525500)

$

$

Not available

9

Gravely 034489

CHAIN,O.F.C.
(Superseded to 00920900)

$

$

Not available

10

Gravely 022098

BRG-FLG 1.001X1.252X.75X1.5
(Superseded to 05422400)

$

$

Not available

11

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

12

Gravely 034515

TUBE,STEERING
(Superseded to 08908200)

$

$

Not available

13

Gravely 035533

WLDMT,STEERING SHAFT
(Superseded to 08920500)

$

$

Not available

14

Gravely 034902

SHIELD,GRASS
(Superseded to 20613600)

$

$

Not available

15

Gravely 034452

AXLE,
(Superseded to 21228600)

$

$

Not available

16

Gravely 018954

WSHR-THRST 1.50X2.18X.063
(Superseded to 06432200)

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 035639

BRG-N-THRUST; 1.50X2.187X.0781
(Superseded to 05424700)

$

$

Not available

18

Gravely 124551

KEY-WDRF .25X.875 HRD #A
(Superseded to 06608800)

$3.99

$

In Stock, Qty 12

0

19

Gravely 035627

WLDMT,WHEEL FORK
(Superseded to 20626000)

$

$

Not available

20

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

22

Gravely 456008

NUT,LOCK 3/4-16 W/INSR
(Superseded to 21305000)

$

$

Not available

23

Gravely 034472

BUSH.,S.760X.995X4.08 ST
(Superseded to 21228900)

$

$

Not available

24

Gravely 034962

WHL,PRO-MASTER 50 REAR
(Superseded to 20615300)

$

$

Not available

25

Gravely 180193

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0
