375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Brake Group Parts Diagram

50" Zero-Turn Mower, 20hp

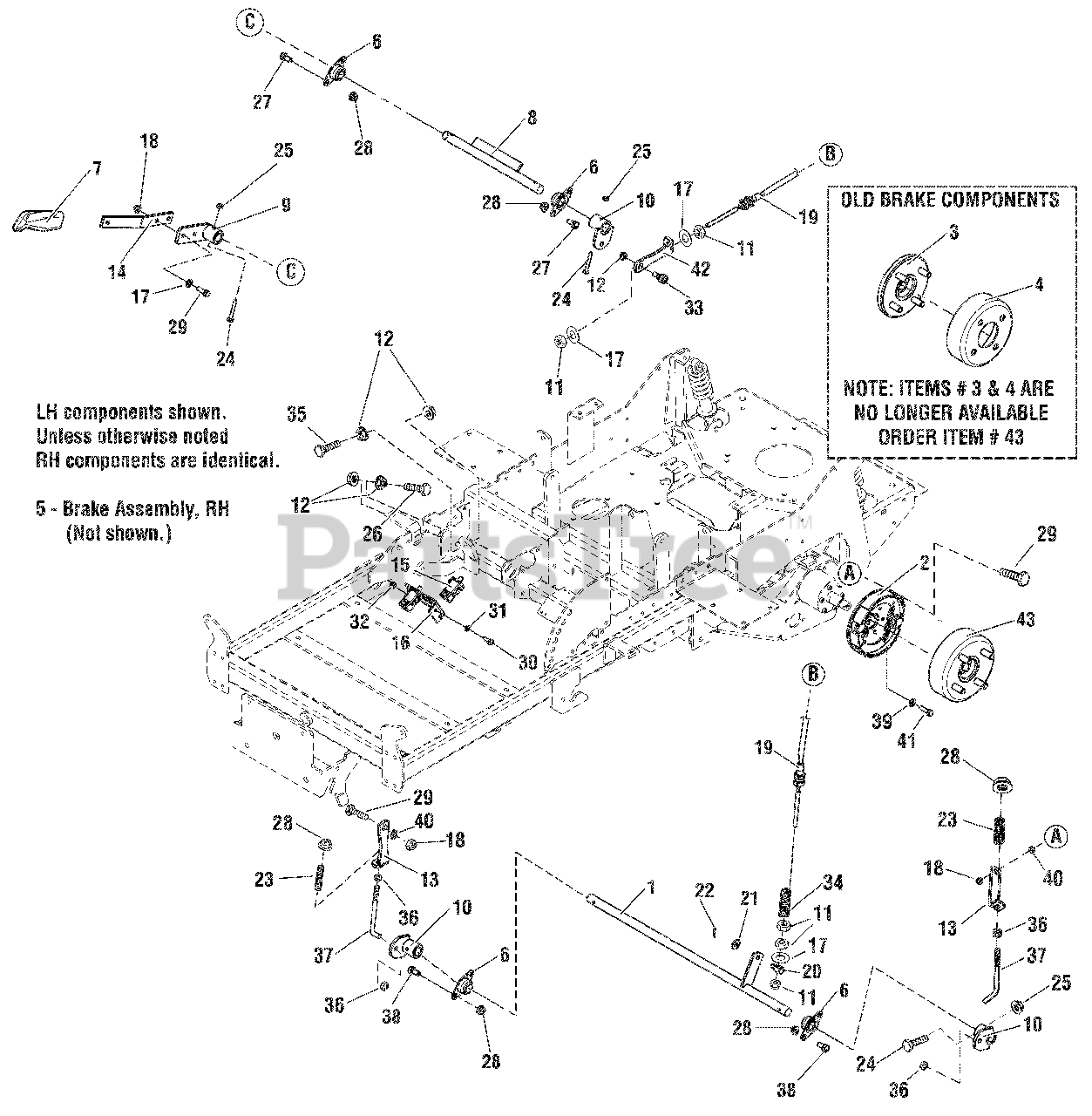

Brake Group Parts Diagram

  • Title

1

Snapper 5401014D

WELD, SHAFT, REAR BRAKE - RED

$

$

Currently unavailable

2

Snapper 5023188

BRAKE ASSY, LH # HGB-BPW1-2X.
(Superseded to 5023188SM)

$188.99

$

Usually ships in 2-12 days

0

3

Snapper 5023309

HUB, W/STUD, 1TPR 800645
(Superseded to 5023309SM)

Note: (Replaced by Ref. No 43)

$207.99

$

Usually ships in 2-12 days

0

4

Snapper 5023367

BRAKE DRUM
(Superseded to 5102903YP)

Note: (Replaced by Ref. No 43)

$243.99

$

In Stock, only 1 left!

0

5

Snapper 5023106

BRAKE ASSY, RH.# HGB-BPW9-2X.
(Superseded to 5102904YP)

Note: (Not Shown)

$176.99

$

Usually ships in 2-12 days

0

6

Snapper 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

7

Snapper 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

8

Snapper 5048163D

WELD,SHAFT, BRAKE LEVER
(Superseded to 5048163DYP)

$25.99

$

Usually ships in 2-12 days

0

9

Snapper 5048401D

WELD, MOUNT, BRAKE LEVER
(Superseded to 5048401DYP)

$49.99

$

Usually ships in 2-12 days

0

10

Snapper 5045618D

WELD, PIVOT LINKAGE MOUNT
(Superseded to 5045618DYP)

$30.99

$

Usually ships in 2-12 days

0

11

Snapper 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5401172D

LINK, BRAKE LOCK - RED

$

$

Currently unavailable

14

Snapper 5045619D

HANDLE, BRAKE LEVER
(Superseded to 5045619DYP)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper 7022886YP

SWITCH, PLUNGER, NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

16

Snapper 5045621D

BRACKET, SWITCH MOUNT
(Superseded to 5045621DYP)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 5023324

* CABLE, PARKING BRAKE
(Superseded to 5023324SM)

$81.99

$

In Stock, only 1 left!

0

20

Snapper 5045947

ADJUSTER, BRAKE LINKAGE
(Superseded to 5045947SM)

$26.99

$

Usually ships in 2-12 days

0

21

Snapper 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 5022361

SPRING, COMP, .428ID X 2.50LG X .155WR
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

24

Snapper 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper 5025287

NUT, 1/4-20 HEX SIDE LOCK
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

27

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 5025010X5

BOLT, 1/4-20 X 5/8 GD5 YZ
(Superseded to 5025010X5SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 5025356

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

34

Snapper 5021494

SPRING, COMPRESSION, 5-1/2
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

35

Snapper 5025058X16

BOLT, 3/8-16 X 2 GD5 TFL CZ
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

36

Snapper 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

37

Snapper 5047091

ROD, BRAKE ADJUSTMENT
(Superseded to 5047091SM)

$13.99

$

Usually ships in 2-12 days

0

38

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

39

Snapper 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 5041930

SPACER, .38 X .50 X.27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper 5023215

CAPSCREW, HEX HEAD M6-1.0X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 5045633D

LINK, BRAKE LOCK - RED

$

$

Currently unavailable

43

Snapper 5023094

BRAKE DRUM, 4-BOLT
(Superseded to 5102903YP)

Note: (Replaces Ref. Nos. 3 & 4)

$243.99

$

In Stock, only 1 left!

0
