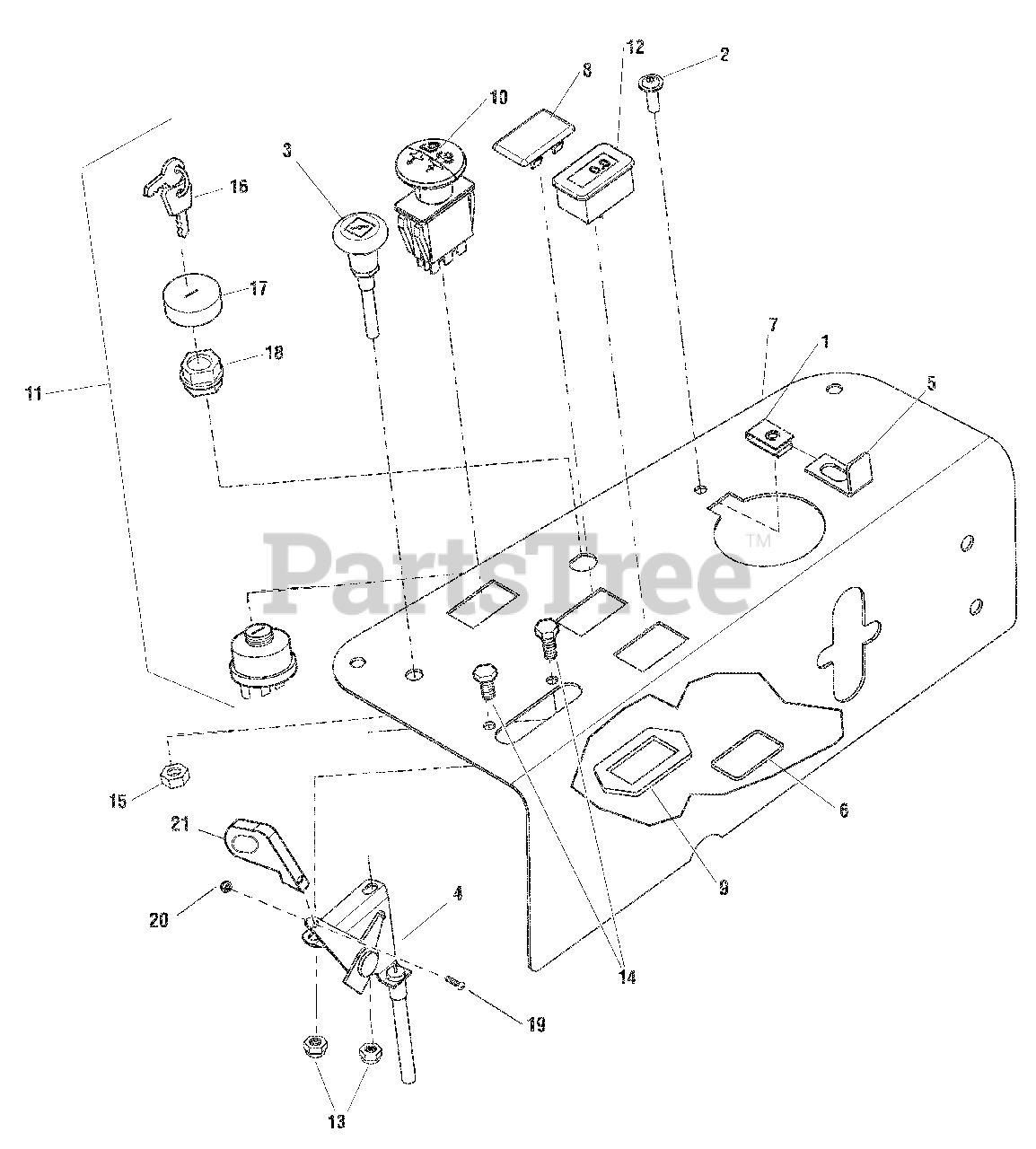

375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Control Group Panel Parts Diagram

50" Zero-Turn Mower, 20hp

Control Group Panel Parts Diagram

  • Title

1

Snapper 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 5025299X6

SCREW, 1/4-20 X 3/4" ALLEN BH
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

$43.99

$

In Stock, only 2 left!

0

4

Snapper 5100182

CABLE, THROTTLE CONTROL, 36"
(Superseded to 5100182SM)

$81.99

$

Usually ships in 2-12 days

0

5

Snapper 5049022A

BRACKET, LOCK
(Superseded to 5049022ASM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5400717A

PLATE, CONTROL PANEL
(Superseded to 5400717ASM)

$39.99

$

Usually ships in 2-12 days

0

8

Snapper 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 5

0

9

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 1722887

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

11

Snapper 1686734

SWITCH, IGNITION, 6 POST
(Superseded to 1686734SM)

Note: (Includes Ref. Nos. 16 - 18)

$34.99

$

In Stock, Qty 13

0

12

Snapper 5100996

METER, HOUR DIGITAL
(Superseded to 5102417YP)

$69.99

$

In Stock, only 2 left!

0

13

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

14

Snapper 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 1717163

KEY, Ignition Molded
(Superseded to 1717163SM)

Note: (Set of 2)

$9.49

$

In Stock, only 3 left!

0

17

Snapper 1704346

COVER
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 6

0

18

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

19

Snapper 5025270

SCREW, #10-24 X 1" RS
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 1725337

KNOB, THROTTLE
(Superseded to 1725337SM)

$13.99

$

In Stock, only 1 left!

0
