375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Control Group Upper Parts Diagram

50" Zero-Turn Mower, 20hp

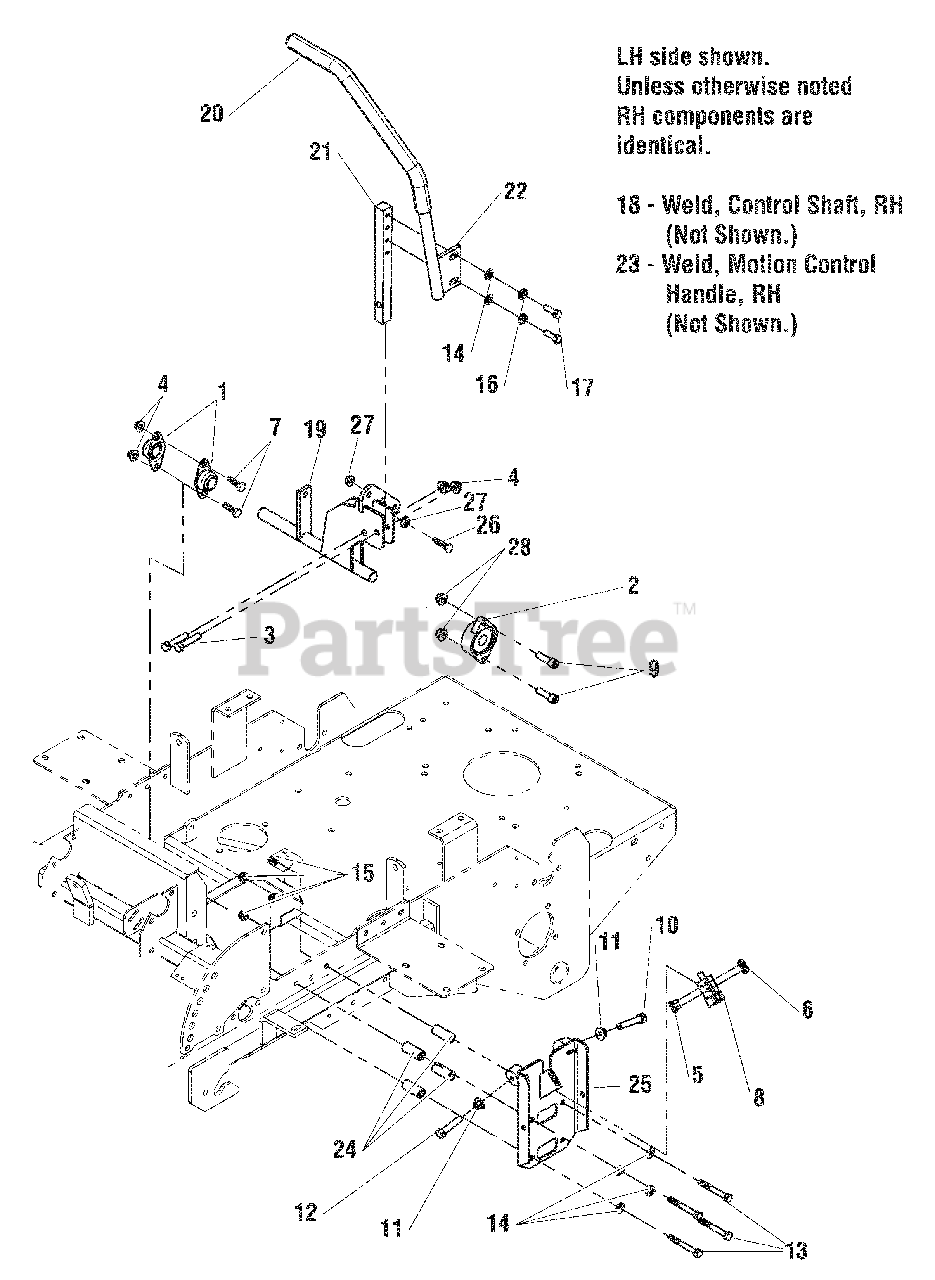

Control Group Upper Parts Diagram

  • Title

1

Snapper 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$14.99

$

In Stock, only 3 left!

0

2

Snapper 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$57.99

$

In Stock, only 1 left!

0

3

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 16

0

4

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025179X4

SCREW, #10-24 X 1/2 ROUND PHILLIPS
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

8

Snapper 5022095

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050)

$18.99

$

In Stock, only 2 left!

0

9

Snapper 5025327

BOLT, 3/8-16 X 1-1/4 SHCS (SOCKET HEAD)
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

12

Snapper 5025055X14

BOLT, 5/16-18 X 1-3/4 GD5 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

18

Snapper 5401020D

WELD, CONTROL SHAFT - RH
(Superseded to 5401020DYP)

$77.99

$

Usually ships in 2-12 days

0

19

Snapper 5401017D

WELD, CONTROL SHAFT - LH
(Superseded to 5401017DYP)

$61.99

$

Usually ships in 2-12 days

0

20

Snapper 5022068

GRIP, FOAM, 3/4 ID, 16 LONG
(Superseded to 5022068SM)

$12.99

$

In Stock, only 1 left!

0

21

Snapper 5047004

MOUNT, CONTROL ARM
(Superseded to 5047004SM)

$63.99

$

Usually ships in 2-12 days

0

22

Snapper 5401096D

WELD, HANDLE MOTION CONTROL-LH
(Superseded to 5401096DSM)

$50.99

$

Usually ships in 2-12 days

0

23

Snapper 5401097D

WELD, HANDLE MOTION CONTROL-RH
(Superseded to 5401097DSM)

$49.99

$

Usually ships in 2-12 days

0

24

Snapper 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$6.49

$

Usually ships in 2-12 days

0

25

Snapper 5048169D

WELD, PLATE, NEUTRAL
(Superseded to 5048169DYP)

$75.99

$

Usually ships in 2-12 days

0

26

Snapper 5023157

BOLT, 5/16-18 X 1 1/2 FLANGE
(Superseded to 5023157SM)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

28

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0
