375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Engine & PTO Group Parts Diagram

50" Zero-Turn Mower, 20hp

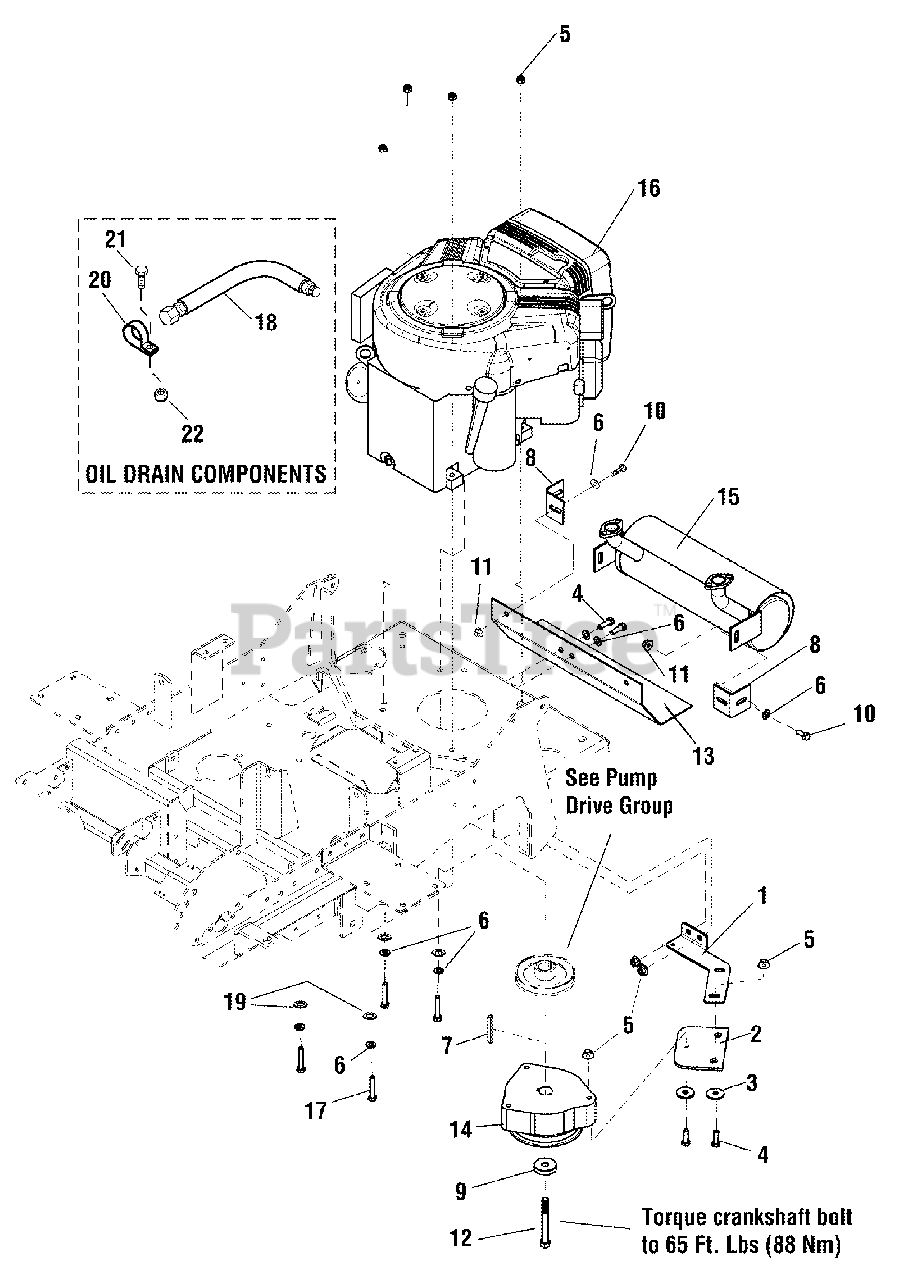

Engine & PTO Group Parts Diagram

  • Title

1

Snapper 5061857D

PLATE, CLUTCH ANCHOR - RED

$

$

Currently unavailable

2

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

3

Snapper 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

4

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Snapper 5050407X18

KEY, 1/4" SQ. X 2 1/4
(Superseded to 5050407X18SM)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5048262D

BRACKET, SUPPORT, MUFFLER
(Superseded to 5048262DYP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

11

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

12

Snapper 5023253

CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4,YZ
(Superseded to 5103300YP)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper 5401071D

PLATE, HEAT SHIELD - RED
(Superseded to 5401071DYP)

$27.99

$

Usually ships in 2-12 days

0

14

Snapper 5023100

CLUTCH, #51110100,ELECTRIC, 1 SHAFT
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

15

Snapper 5023187

MUFFLER, ACS - 20HP BRIGGS
(Superseded to 5023187SM)

$335.99

$

Usually ships in 2-12 days

0

16

Snapper 358777-0120-G1

* ENGINE, 20 HP BRIGGS VANGUARD, Mod. 358777-0120-G1

$

$

Currently unavailable

17

Snapper 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

19

Snapper 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

22

Snapper 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
