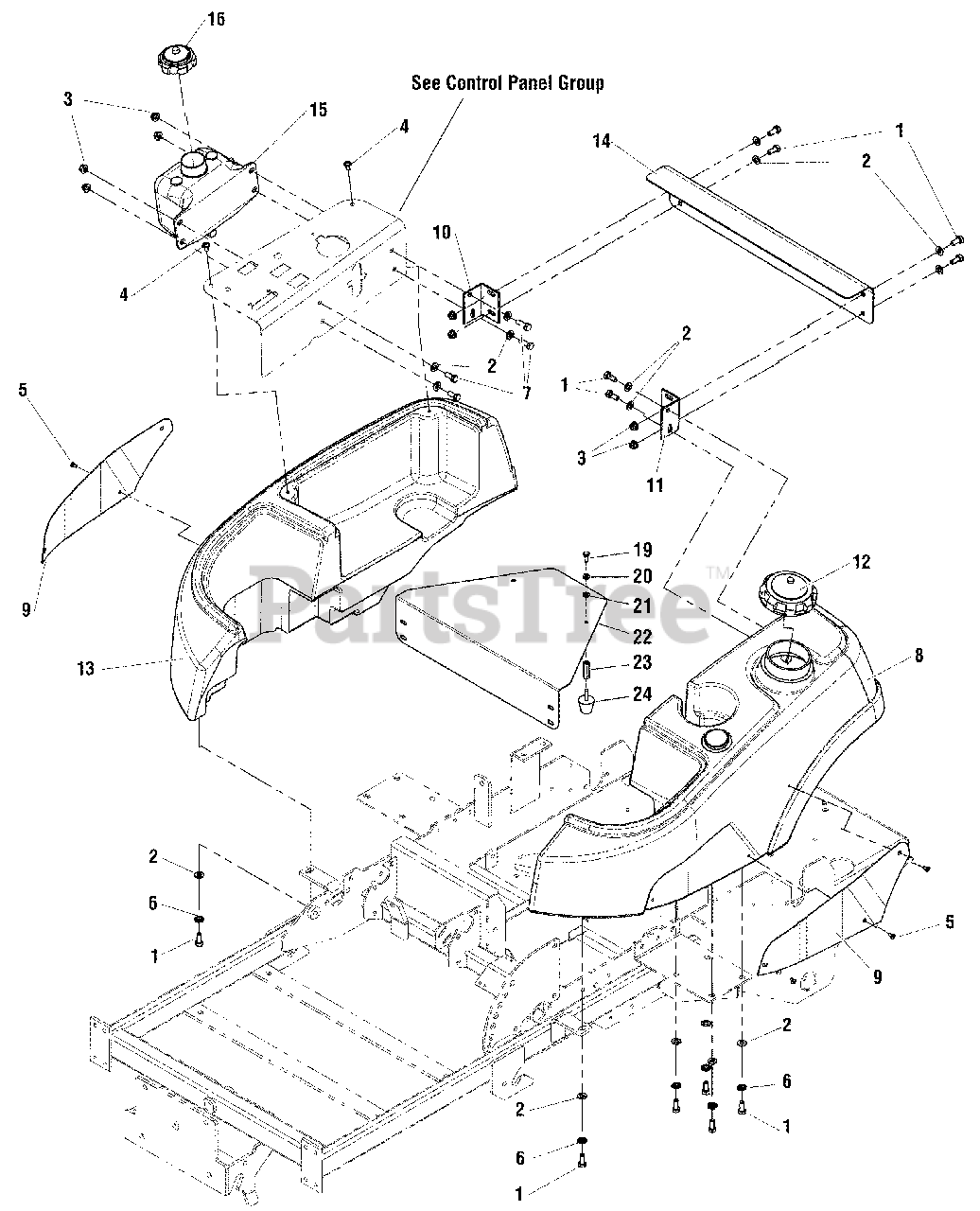

375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Fuel Tank Group Parts Diagram

50" Zero-Turn Mower, 20hp

Fuel Tank Group Parts Diagram

  • Title

1

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

2

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

7

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

8

Snapper 5101181

TANK, FUEL - LH, 2008 CONZ
(Superseded to 5102544YP)

$530.99

$

Usually ships in 2-12 days

0

9

Snapper 5048909D

PLATE, FUEL TANK BADGE
(Superseded to 5048909DYP)

$30.99

$

In Stock, only 2 left!

0

10

Snapper 5048763D

BRACKET, REAR SUPPORT - RH
(Superseded to 5048763DYP)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper 5400836D

BRACKET, REAR SUPPORT - LH - RED
(Superseded to 5400836DYP)

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$26.99

$

In Stock, only 4 left!

0

13

Snapper 5048752

TANK, FENDER, CONZ, RH
(Superseded to 5048752SM)

$296.99

$

Usually ships in 2-12 days

0

14

Snapper 5400919D

PLATE, SUPPORT, REAR TANK
(Superseded to 5400919DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 5023345

TANK, 2 QT HYDRAULIC
(Superseded to 5023345SM)

$92.99

$

Usually ships in 2-12 days

0

16

Snapper 5023191

CAP, HYDRAULIC RESERVOIR
(Superseded to 5023191SM)

$28.99

$

In Stock, only 1 left!

0

17

Snapper 5023197

GAUGE, FUEL LEVEL
(Superseded to 5023197SM)

Note: (Not Shown)

$49.99

$

Usually ships in 2-12 days

0

18

Snapper 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (Not Shown)

$7.49

$

In Stock, Qty 8

0

19

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

20

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Snapper 5402459D

PLATE, ENGINE GUARD, CE - RED
(Superseded to 5402459DYP)

$133.99

$

Usually ships in 2-12 days

0

23

Snapper 5025469

NUT, COUPLING, 5/16-18 X 1-3/4 CZ
(Superseded to 5025469YP)

$5.99

$

Usually ships in 2-12 days

0

24

Snapper 5022612

BUMPER, RUBBER, 5/16-18
(Superseded to 5022612SM)

$24.99

$

Usually ships in 2-12 days

0
