375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Main Frame & Front Suspension Group Parts Diagram

50" Zero-Turn Mower, 20hp

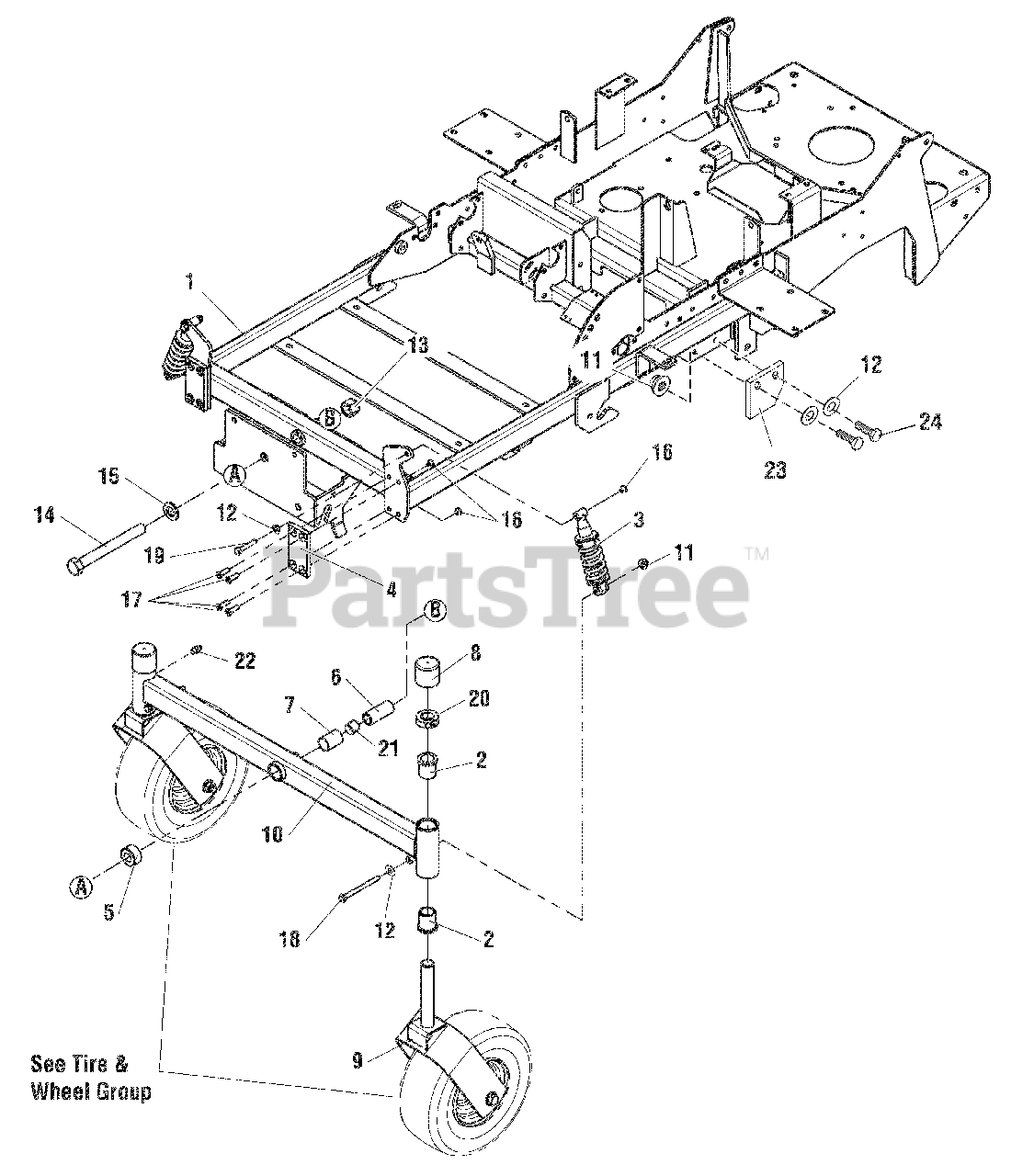

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Snapper 5401035D

WELD, MAIN FRAME, SMI

$

$

Currently unavailable

2

Snapper 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

3

Snapper 5023213

SHOCK
(Superseded to 5023213SM)

$52.99

$

In Stock, only 2 left!

0

4

Snapper 5045990

FRICTION PLATE
(Superseded to 5045990SM)

$20.99

$

Usually ships in 2-12 days

0

5

Snapper 5400756

SPACER, .76X 1.50 X .79, CZ
(Superseded to 5400756SM)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 5047489

SPACER, .75 x 1.00 x 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, only 1 left!

0

7

Snapper 5022852

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$33.99

$

In Stock, only 1 left!

0

8

Snapper 5023214

CAP, VINYL 1.687 X 1-1/2
(Superseded to 5023214SM)

$6.49

$

In Stock, only 4 left!

0

9

Snapper 5048775D

WELD, CASTER YOKE - RED
(Superseded to 5048775DYP)

$170.99

$

Usually ships in 2-12 days

0

10

Snapper 5400962D

WELD, PIVOTING FRONT END - ORG
(Superseded to 5400962DYP)

$264.99

$

Usually ships in 2-12 days

0

11

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Snapper 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

14

Snapper 5025265X56

3/4-16 X 7" GD 8 BOLT TZ
(Superseded to 5025265X56SM)

$43.99

$

Usually ships in 2-12 days

0

15

Snapper 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5025303

SCREW, FLAT HEAD SOCKET, 5/16-18 X 3/4
(Superseded to 5025303SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 5025011X30SM

BOLT, 5/16-18 X 3-3/4 GD5

$6.49

$

Usually ships in 2-12 days

0

19

Snapper 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

21

Snapper 5100358

PIVOT BEARING, 1.00" X 1.125" OD X .50"
(Superseded to 5100358SM)

$18.99

$

In Stock, only 1 left!

0

22

Snapper 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5401053D

PLATE, DECK STOP - SNAPPER RED
(Superseded to 5401053DYP)

$26.99

$

Usually ships in 2-12 days

0

24

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0
