375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Rear Suspension Group Parts Diagram

50" Zero-Turn Mower, 20hp

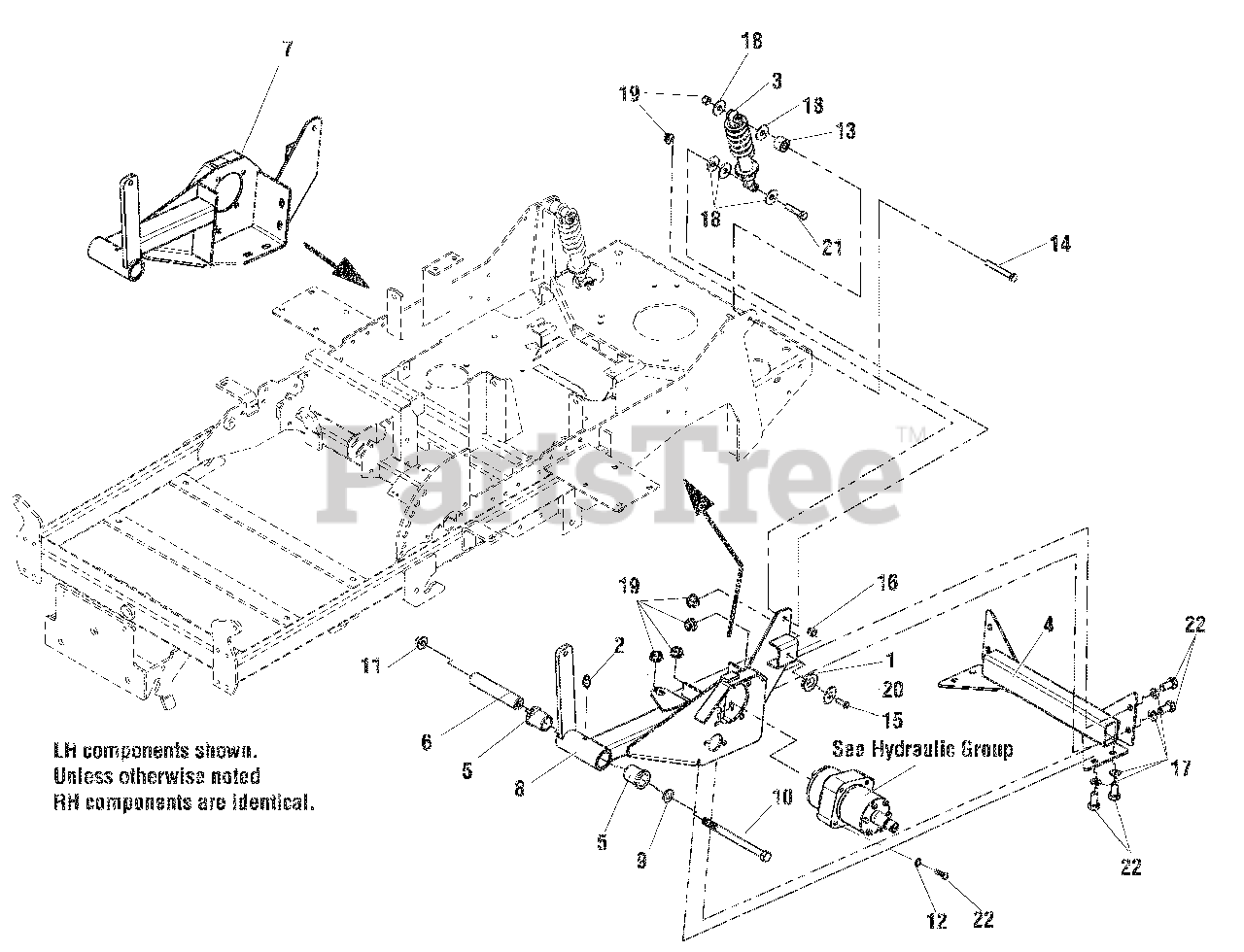

Rear Suspension Group Parts Diagram

  • Title

1

Snapper 5400065

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701)

$3.99

$

In Stock, only 1 left!

0

2

Snapper 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 5023483

SHOCK, SPRING ASSEMBLY
(Superseded to 5023483SM)

$55.99

$

In Stock, only 2 left!

0

4

Snapper 5401012D

WELD, TIE BAR - RED

$

$

Currently unavailable

5

Snapper 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

6

Snapper 5100194

SPACER, .52 X 1.00 X 5.00
(Superseded to 5100194SM)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 5400973D

WELD, TRAILING ARM, RH - RED

$

$

Currently unavailable

8

Snapper 5400972D

WELD, TRAILING ARM, LH - RED

$

$

Currently unavailable

9

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

10

Snapper 5025017X52

BOLT, 1/2-13 X 6-1/2 GD8 YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

11

Snapper 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, only 3 left!

0

12

Snapper 5025171

WASHER, 3/8 SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

13

Snapper 5100334

SPACER, .39 X 1.00X .63
(Superseded to 5100334SM)

$7.49

$

In Stock, only 1 left!

0

14

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 5025303

SCREW, 5/16-18 X 1 FLAT HD SC
(Superseded to 5025303SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

18

Snapper 5025165

WASHER, 3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

22

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0
