375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Wheel & Tire Group Parts Diagram

50" Zero-Turn Mower, 20hp

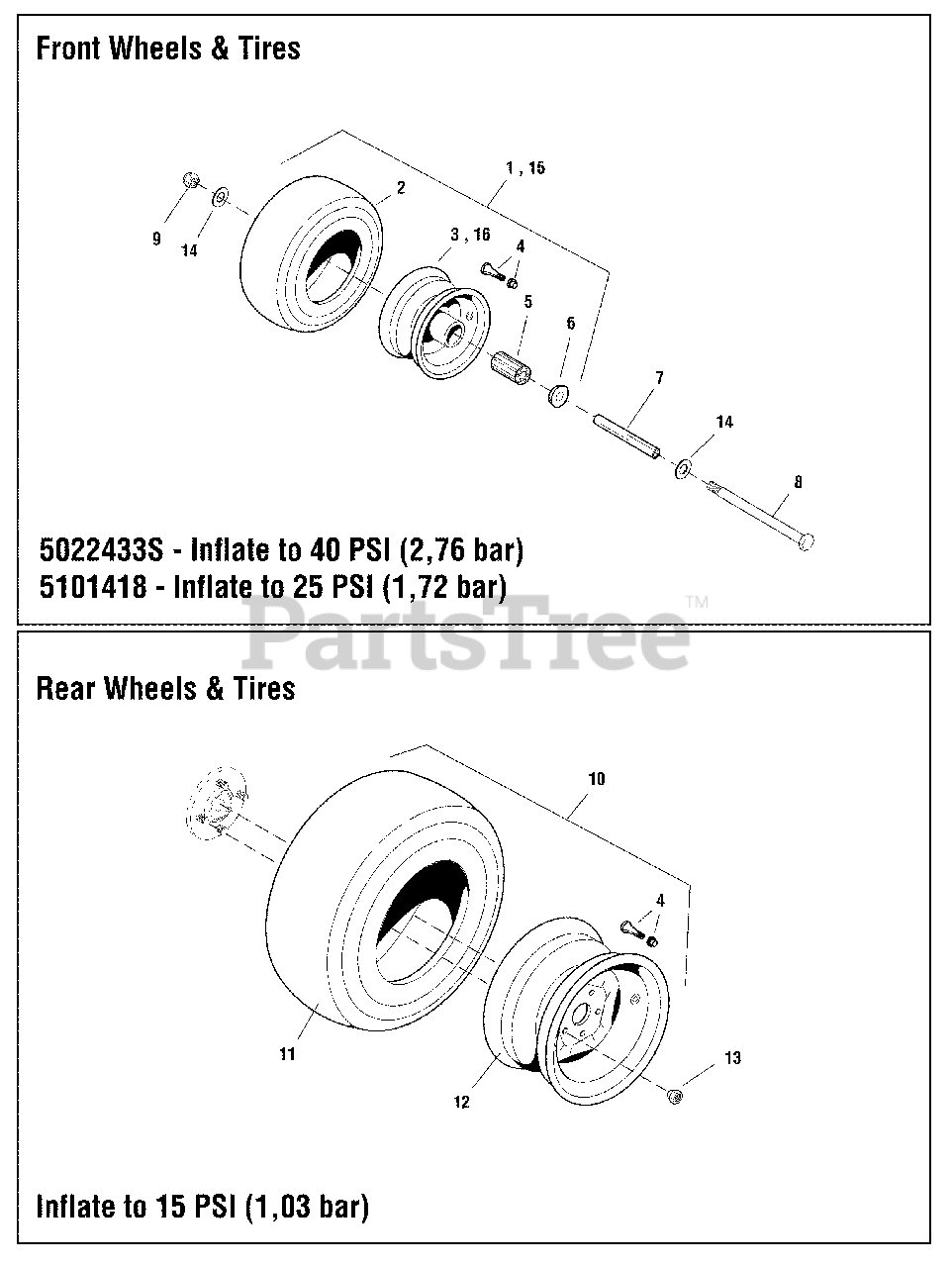

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 5022433

WHEEL, CASTER, 11X4.0-5 WHITE
(Superseded to 5101418YP)

Note: (Includes Ref. Nos. 2 - 6) (S/N: 2013129510 & Below)

$127.99

$

In Stock, only 4 left!

0

2

Snapper 5022433X1

TIRE, 11 X 4.0-5 (TIRE ONLY)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 5022433SX2

WHEEL ASSEMBLY, 11X4.0X5 SILVER
(Superseded to 5101418X2YP)

Note: (Includes Ref. Nos. 4 & 5)

$84.99

$

In Stock, only 1 left!

0

4

Snapper 2172353

VALVE STEM & CAP, AIR .453DIA 0.88LG
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 5021042

BEARING, ROLLER
(Superseded to 5021042SM)

Note: (2 Per Tire)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 5021043

RETAINER, BEARING

Note: (2 Per Tire)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, only 1 left!

0

8

Snapper 5025017X52

BOLT, 1/2-13 X 6-1/2 GD8 YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, Qty 6

0

9

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 5101293

TIRE ASSM, 20X8.00-10NHS, TURF MASTER
(Superseded to 5102329YP)

Note: (Includes Ref. Nos. 4, 11 & 12)

$349.99

$

Usually ships in 2-12 days

0

11

Snapper 5023095X1

TIRE, 20X 8.0 X 10 (TIRE ONLY)
(Superseded to 5102329)

$349.99

$

Usually ships in 2-12 days

0

12

Snapper 5023095X2

WHEEL ASSEMBLY, 20 X 8.0 X 10
(Superseded to 5102329X2YP)

$259.99

$

Usually ships in 2-12 days

0

13

Snapper 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

14

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

Note: (Includes Ref. Nos. 2, 4-6, 16) (S/N: 2013129511 & Above)

$127.99

$

In Stock, only 4 left!

0

16

Snapper 5101418X1

WHEEL ASSEMBLY, COMPLETE
(Superseded to 5101418X1YP)

Note: (Includes Ref. Nos. 4 & 5)

$28.99

$

In Stock, only 2 left!

0
