377 - Shindaiwa Chainsaw Crankcase Parts Diagram

Chainsaw

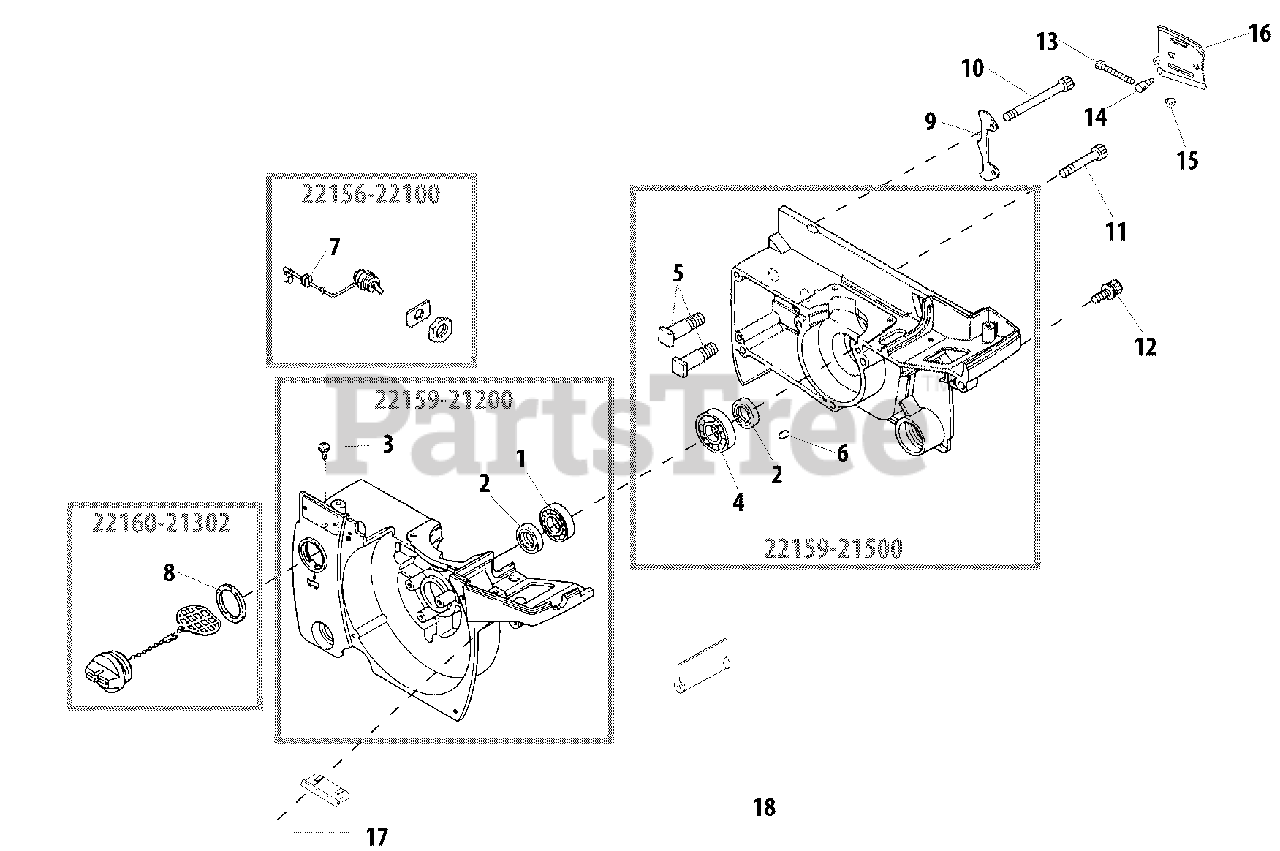

Crankcase Parts Diagram

  • Title

22159-21200

Echo 22159-21200

CRANKCASE ASSY - FRONT
(Superseded to P021022180)

$60.99

$

Usually ships in 2-4 days

0

1

Echo 12900-60010

BEARING, BALL 6001 C3
(Superseded to V592000310)

$6.99

$

In Stock, Qty 9

0

2

Echo 22150-21250

SEAL, OIL 12
(Superseded to V505000140)

$3.49

$

In Stock, only 4 left!

0

3

Echo 22115-57120

VENT ASSY
(Superseded to A356000130)

$5.49

$

Usually ships in 2-4 days

0

22159-21500

Echo 22159-21500

CRANKCASE ASSY - RIGHT
(Superseded to 22159-21501)

$

$

Not available

2

Echo 22150-21250

SEAL, OIL 12
(Superseded to V505000140)

$3.49

$

In Stock, only 4 left!

0

4

Echo 12900-62010

BEARING, BALL 6201 C3
(Superseded to V592000110)

$9.99

$

In Stock, only 3 left!

0

5

Echo 22120-12260

STUD, GUIDE BAR
(Superseded to V225000130)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 70030-21140

PIN, DOWEL
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

22156-22100

Echo 22156-22100

SWITCH ASSY, ON-OFF
(Superseded to A045000450)

$14.99

$

Usually ships in 2-4 days

0

7

Echo 22156-22150

GROMMET

$8.49

$

Usually ships in 2-4 days

0

22160-21302

Echo 22160-21302

CAP ASSY, OIL
(Superseded to C020000020)

$11.99

$

In Stock, Qty 11

0

8

Echo 22160-21351

GASKET, CAP
(Superseded to V106000080)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 22154-52530

SPIKE, BUMPER
(Superseded to C304000090)

$5.99

$

Usually ships in 2-4 days

0

10

Echo 01020-05450

BOLT
(Superseded to 90010505045)

$1.49

$

In Stock, Qty 5

0

11

Echo 01020-05300

BOLT 5×30
(Superseded to 90010505030)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 11021-05180

BOLT

$

$

Not available

13

Echo 22154-52421

SCREW, SLIDE
(Superseded to V253000590)

$1.99

$

In Stock, only 4 left!

0

14

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.99

$

In Stock, Qty 5

0

15

Echo 22154-52450

NUT, PUSH
(Superseded to V260000020)

$1.49

$

In Stock, Qty 6

0

16

Echo 22159-54150

PLATE, GUIDE A
(Superseded to C305000170)

$8.49

$

Usually ships in 2-4 days

0

17

Echo 22159-82350

STOPPER, SHUTTER
(Superseded to E131000000)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 22154-82320

PLATE, SHUTTER

$3.99

$

Usually ships in 2-4 days

0
