37917 - Gravely Pro Series Sulky Ride

Pro Series Sulky Ride

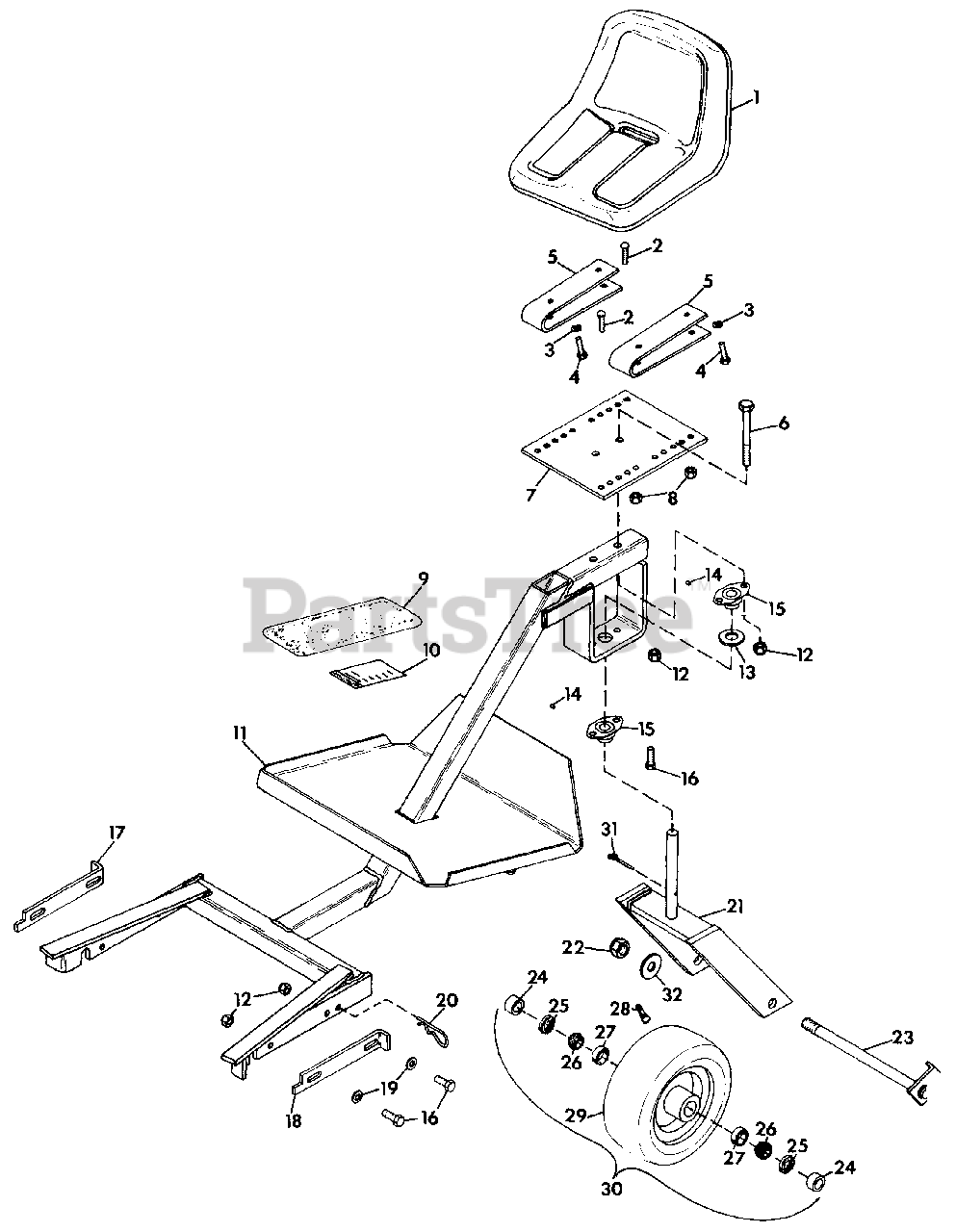

37917 - Gravely Pro Series Sulky Ride > Parts Diagrams (1) > RIDING SULKY

  • Title
021423

1

SEAT, HIGH BACK

Part# 021423 (Superseded to 59100200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

126353

2

BOLT, 5/16-18X.875 RD HD SQ NK

Part# 126353 (Superseded to 06209200)

OEM Warranty Repair Part for Gravely

Not available

120214

3

WASHER, LOCK 5/16 REG.

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180077

4

BOLT, HEX 5/16-18X.75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

024356

5

SPRING, SEAT

Part# 024356 (Superseded to 21251600)

OEM Warranty Repair Part for Gravely

Not available

180137

6

BOLT, HEX 3/8-16X2.75

Part# 180137 (Superseded to 05961400)

OEM Warranty Repair Part for Gravely

Not available

035111

7

PLATE, SEAT SUPPORT

Part# 035111 (Superseded to 21237200)

OEM Warranty Repair Part for Gravely

Not available

413447

8

NUT, LOCK 5/16-18

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011653

9

COVER, LARGE FOOTBOARD

Part# 011653 (Superseded to 09023200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

035752

10

DECAL, SULKY PRO 40/PRO 50

Part# 035752 (Superseded to 05209600)

OEM Warranty Repair Part for Gravely

Not available

035098

11

WELDMENT, SULKY FRAME

Part# 035098 (Superseded to 20656700)

OEM Warranty Repair Part for Gravely

Not available

456004

12

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

131019

13

WASHER, FLAT 1.06X2.00X.134

Part# 131019 (Superseded to 06443000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

140879

14

SCREW, SET 10-32X.137

Part# 140879

OEM Warranty Repair Part for Gravely

Not available

037923

15

BEARING, 1" BORE

Part# 037923 (Superseded to 20639200)

OEM Warranty Repair Part for Gravely

Not available

180123

16

BOLT, HEX 3/8-16X1.125

Part# 180123

OEM Warranty Repair Part for Gravely

Not available

035113

17

STRAP, SULKY LATCH R.H.

Part# 035113 (Superseded to 21237400)

OEM Warranty Repair Part for Gravely

Not available

035112

18

STRAP, SULKY LATCH L.H.

Part# 035112 (Superseded to 21237300)

OEM Warranty Repair Part for Gravely

Not available

446470

19

WASHER, FLAT .375X1.125X.065

Part# 446470 (Superseded to 06425500)

OEM Warranty Repair Part for Gravely

Not available

010405

20

PIN, HAIR

Part# 010405 (Superseded to 06714000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

037926

21

WELDMENT, CASTER WHEEL FORK

Part# 037926 (Superseded to 21245400)

OEM Warranty Repair Part for Gravely

Not available

456007

22

NUT, LOCK 3/4-10

Part# 456007 (Superseded to 06540800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

035750

23

WELDMENT, AXLE

Part# 035750 (Superseded to 20628200)

OEM Warranty Repair Part for Gravely

Not available

035764

24

BUSHING, WHEEL

Part# 035764 (Superseded to 20628500)

OEM Warranty Repair Part for Gravely

Not available

035959

25

SEAL, WHEEL

Part# 035959

OEM Warranty Repair Part for Gravely

Not available

018446

26

BEARING, CONE

Part# 018446 (Superseded to 05404500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

018445

27

BEARING, CUP

Part# 018445 (Superseded to 05404400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

011191

28

ASSEMBLY, VALVE STEM

Part# 011191 (Superseded to 07520000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

035765

29

TIRE, 13X5.00-6

Part# 035765 (Superseded to 20628600)

OEM Warranty Repair Part for Gravely

Not available

035116

30

ASM., WHEEL 13X5.00-6

Part# 035116 (Superseded to 20618200)

OEM Warranty Repair Part for Gravely

Not available

137253

31

PIN, COTTER .187X1.62

Part# 137253 (Superseded to 06705800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

131017

32

WASHER, FLAT .812X1.496X.134

Part# 131017 (Superseded to 06439000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

038051

33

WHEEL, SULKY

Part# 038051

OEM Warranty Repair Part for Gravely

Not available
