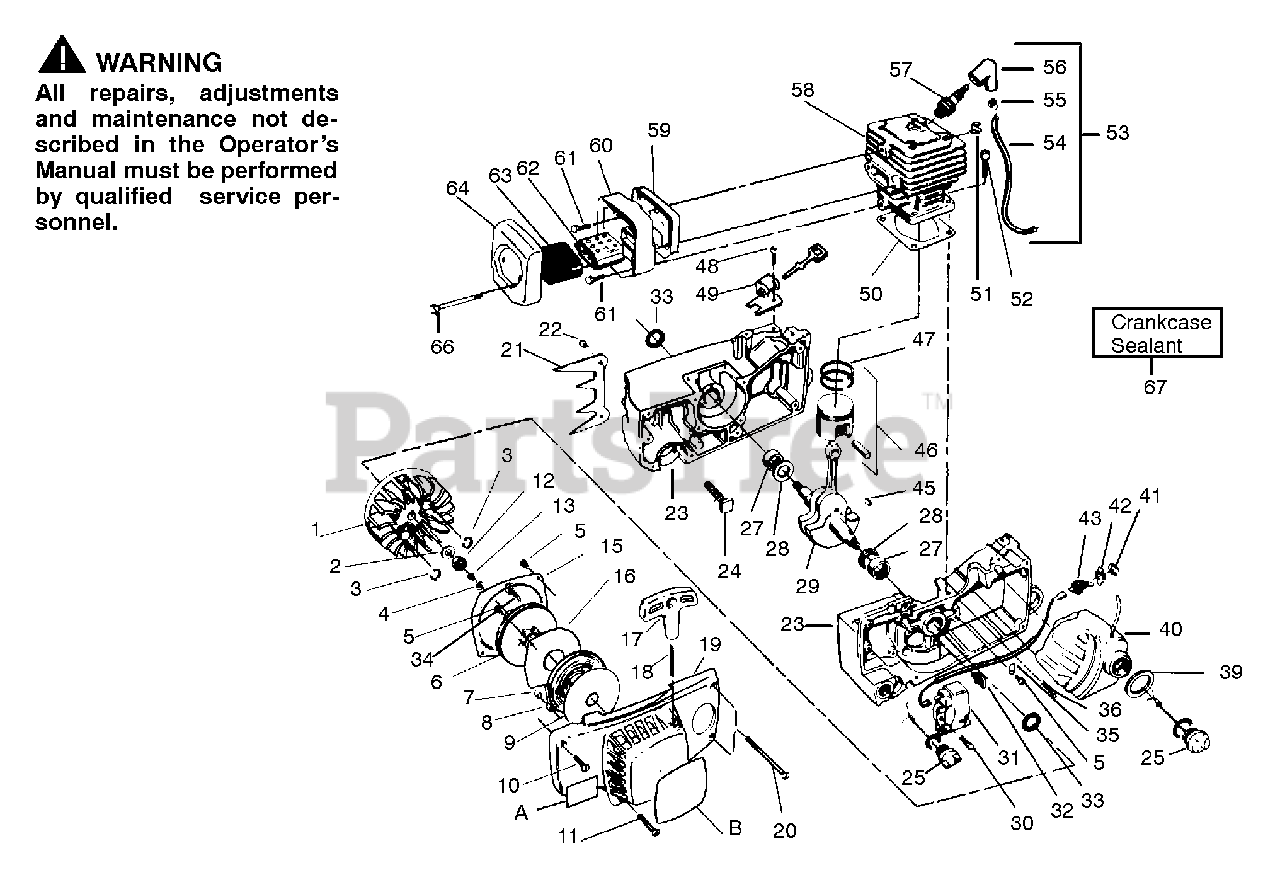

3800 - Poulan Chainsaw Winter Screen Parts Diagram

Chainsaw

Winter Screen Parts Diagram

  • Title

1

Poulan 530039095

Flywheel Ass'y.

Note: (Incl.#3

$

$

Not available

2

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

4

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Poulan 530001726

Screw

$

$

Not available

6

Poulan 530069290

Starter Pulley

$

$

Not available

7

Poulan 530024329

Bushing Recoil Spring

$

$

Not available

8

Poulan 530042051

Starter Recoil Spring
(Superseded to 545008008)

$

$

Not available

9

Poulan 530042053

Disc. Recoil Spring

$

$

Not available

10

Poulan 530015364

Screw

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530015365

Screw

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530001722

Flywheel Nut

$4.99

$

In Stock, only 4 left!

0

13

Poulan 530015036

Screw
(Superseded to 530016141)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530024232

Air Baffle

$

$

Not available

16

Poulan 530042054

Disc. Recoil Spring

$

$

Not available

17

Poulan 530042056

Starter Rope Handle

$

$

Not available

18

Poulan 530069233

Rope Kit

$7.49

$

In Stock, Qty 20+

0

19

Poulan 530012034

Fan Housing Ass'y.

$

$

Not available

20

Poulan 530015366

Screw

$4.99

$

In Stock, only 2 left!

0

21

Poulan 530024476

Spur

$

$

Not available

22

Poulan 530015434

Screw

$3.99

$

In Stock, only 1 left!

0

23

Poulan 530010696

Crankcase Ass'y.

Note: (Incl.# 24, 27, 33 & Oil Cap Ass'y.; Includes # 30, 36, 47 & one of 34 from "Clutch And Handle" illustration and parts list.

$191.99

$

Usually ships in 3-10 days

0

24

Poulan 530030039

Bar Stud Replacement Kit (5/16")

$

$

Not available

25

Poulan 952010438

Oil & Fuel Cap Kit

Note: (Incl. O-Rings)

$

$

Not available

27

Poulan 530032051

Crankshaft Bearing

$

$

Not available

28

Poulan 530015354

Thrust Washer

$6.99

$

Usually ships in 3-10 days

0

29

Poulan 530024492

Crankshaft Ass'y.

Note: (Incl. Connecting Rod and Bearing)

$194.99

$

Usually ships in 3-10 days

0

30

Poulan 530015425

Screw

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 530039093

Ignition Module

Note: (Incl. Lead & 53);

$

$

Not available

32

Poulan 530024334

Clamp

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530019097

Crankshaft Seal

$

$

Not available

34

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

35

Poulan 530023661

Module Lead Clamp

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 530015238

Screw

$2.49

$

In Stock, only 1 left!

0

39

Poulan 530019122

Fuel Tank Neck Seal

$4.99

$

In Stock, only 1 left!

0

40

Poulan 530010286

Fuel Tank Ass'y.

Note: (Incl. Fuel Cap Ass'y. & #35 & 36 from "External Power Unit" illustration and parts list.)

$

$

Not available

41

Poulan 530023575

Nut
(Superseded to 530002582)

$

$

Not available

42

Poulan 530038387

Ignition Switch Plate

$

$

Not available

43

Poulan 530023573

Toggle Switch

$

$

Not available

45

Poulan 530002595

Flywheel Key

$4.99

$

In Stock, Qty 7

0

46

Poulan 530010626

Piston Ass'y.

Note: (Incl. Piston Pin and Rings)

$

$

Not available

47

Poulan 530025933

Piston Rings

$

$

Not available

48

Poulan 530015368

Screw

$

$

Not available

49

Poulan 530010347

Bracket & Bushing Ass'y.

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 530019129

Cylinder Gasket

$

$

Not available

51

Poulan 530015195

Clip

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530039102

High Tension Lead Ass'y.

Note: (Incl. #54, 55 & 56)

$

$

Not available

54

Poulan 530039096

High Tension Lead

$

$

Not available

55

Poulan 530039071

Spark Plug Connector

$

$

Not available

56

Poulan 530039097

Spark Plug Boot

$

$

Not available

57

Poulan 952030078

Spark Plug
(Superseded to 952030201)

$3.49

$

In Stock, Qty 20+

0

58

Poulan 530012067

Cylinder

$

$

Not available

59

Poulan 530024388

Muffler Back Plate

$

$

Not available

60

Poulan 530024387

Muffler Body

$14.99

$

Usually ships in 3-10 days

0

61

Poulan 530015374

Screw

$

$

Not available

62

Poulan 530024384

Muffler Diffuser

$

$

Not available

63

Poulan 530024385

Spark Arrestor Screen Screen

$

$

Not available

64

Poulan 530026800

Muffler Cover

$

$

Not available

66

Poulan 530015375

Screw

$2.49

$

Usually ships in 3-10 days

0

67

Poulan 530030054

Crankcase Sealant

$

$

Not available

A

UNKNOWN

$

$

Not available

B

Poulan 530029124

Instruction Decal

$

$

Not available

Poulan 530067188

Operator's Manual

Note: Not Shown

$7.49

$

Usually ships in 3-10 days

0

Poulan 530066051

Bow Guide Manual

Note: Not Shown

$

$

Not available
