38000 (S-120) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

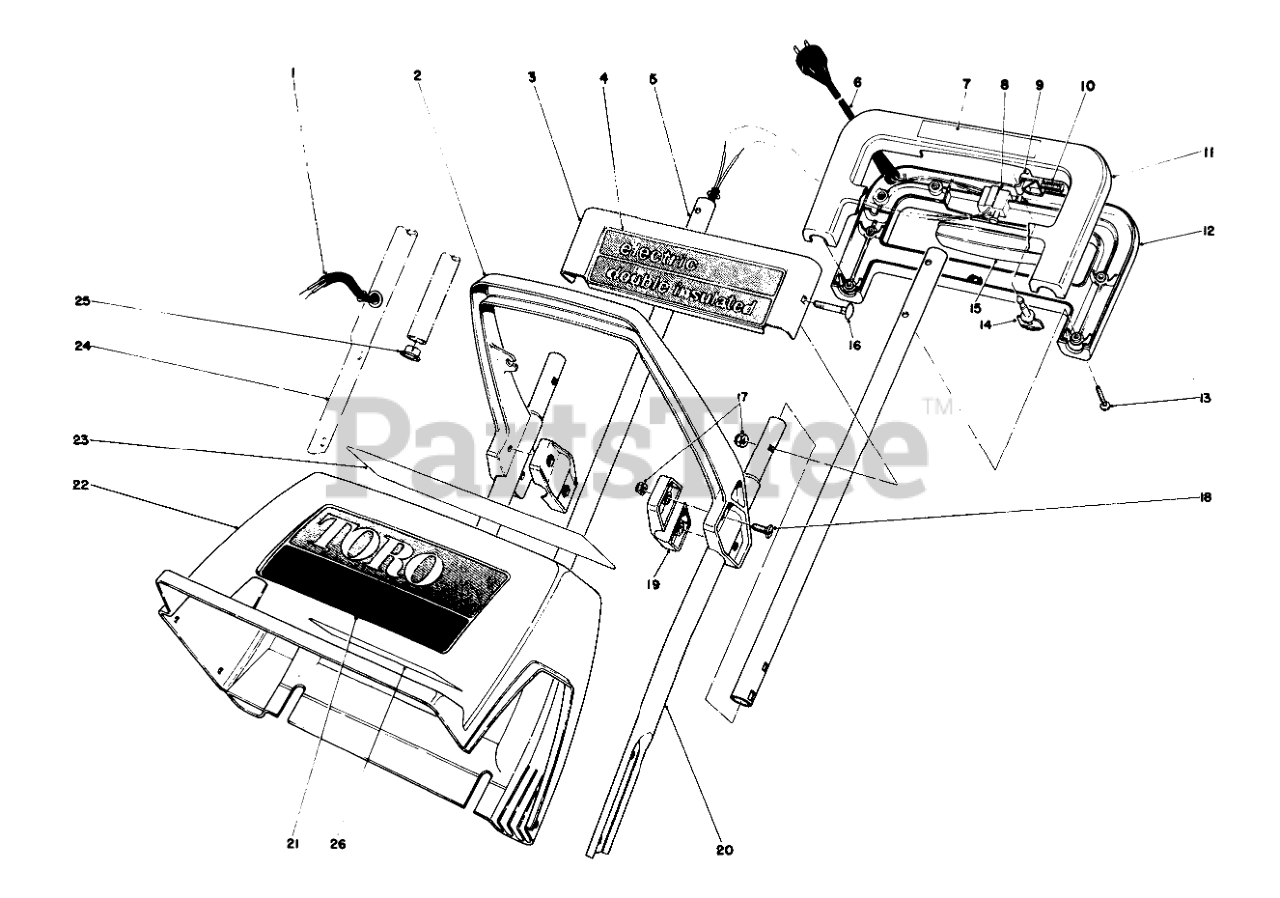

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8820

WIRE HARNESS S-120

$

$

Not available

2

Toro 37-6260

Middle Handle

$

$

Not available

3

Toro 37-6411

Escutcheon Plate

$

$

Not available

4

Toro 37-6480

Decal-Electric

$

$

Not available

5

Toro 56-6520

UPPER TUBE, S-120

$

$

Not available

6

Toro 38-8390

Cord Supply
(Superseded to 42-0775)

$

$

Not available

7

Toro 38-4590

Decal-Handle

$

$

Not available

8

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, Qty 5

0

9

Toro 37-8000

LOCKOUT, 1200

$

$

Not available

10

Toro 37-7990

COMP SPRING

$

$

Not available

11

Toro 39-2460

UPPER CONTRL HANDL HID

$

$

Not available

12

Toro 39-2470

LOWR CONTRL HANDL HID

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 38-8310

KEY

$9.49

$

In Stock, only 1 left!

0

15

Toro 37-8010

SWITCH BAR, 1200 PC

$

$

Not available

16

Toro 37-6320

Bolt-Carriage

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

19

Toro 37-6190

Clamp-Middle Handle

$

$

Not available

20

Toro 56-6540

LOWER TUBE, LH, S-120

$

$

Not available

21

Toro 37-6470

Decal-Toro S-120

$

$

Not available

22

Toro 61-8700

Shroud-S-120

$

$

Not available

23

Toro 64-7000

Decal-UL

$

$

Not available

24

Toro 64-8570

LOWER TUBE, RH, S-120

$64.99

$

Usually ships in 3-6 days

0

25

Toro 64-8910

1200PC-TUBE BUSHING

$

$

Not available

26

Toro 64-7010

Decal-Danger

$

$

Not available
