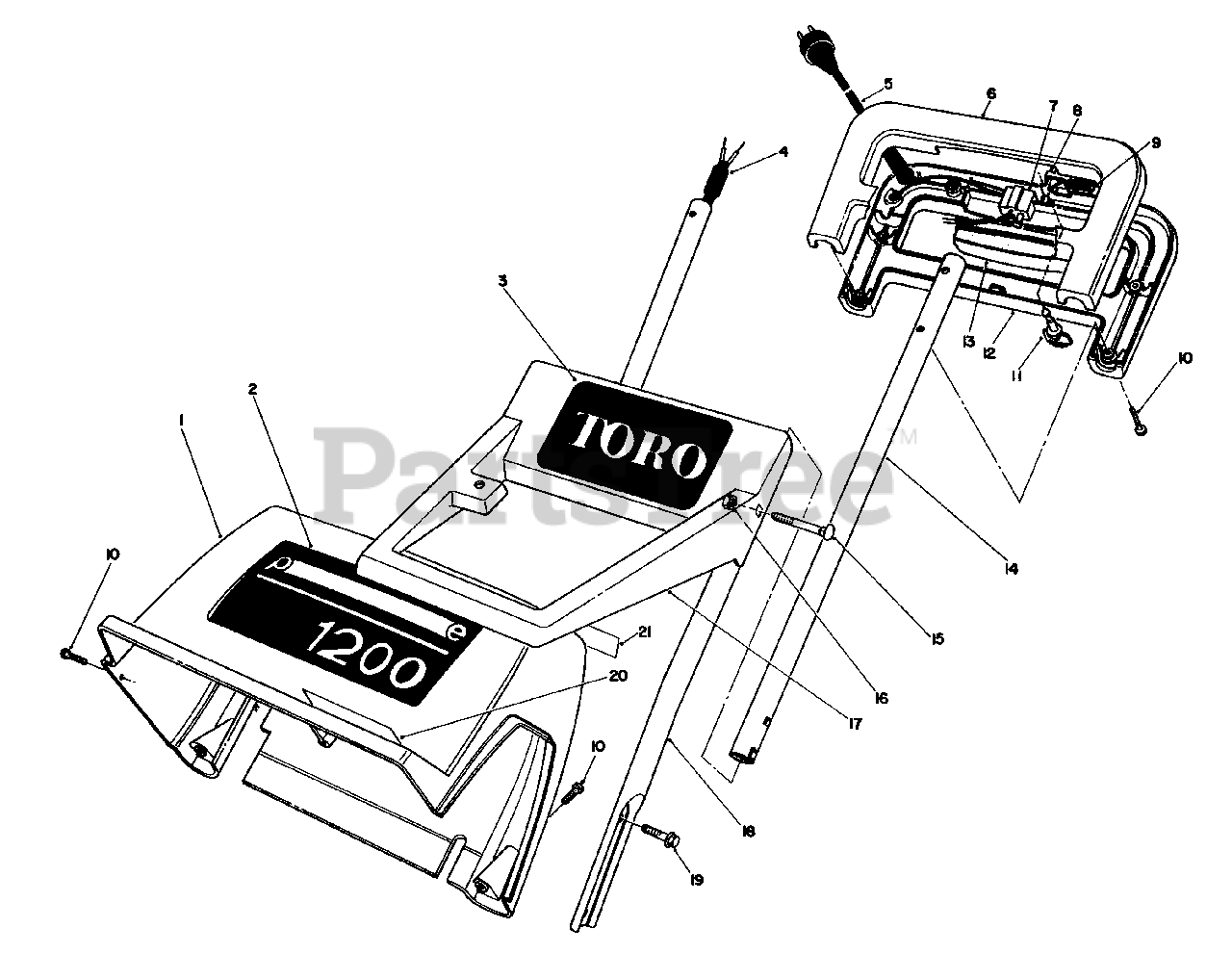

38005 (1200) - Lawn-Boy 12" Power Curve Snow Thrower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

12" Power Curve Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 13-7849

Shroud (Incl. Ref. #2, 20, & 21)

$173.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 64-9050

Decal-1200

$

$

Not available

3

Lawn-Boy 64-9020

Decal-Toro

$

$

Not available

4

Lawn-Boy 73-1600

Wire Harness

$30.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 42-0775

Cord Supply

$

$

Not available

6

Lawn-Boy 73-1690

Handle-Upper Control

$32.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 36-8340

Switch-Starter

$25.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 37-8000

Switch-Lockout

$

$

Not available

9

Lawn-Boy 37-7990

Spring-Compression

$

$

Not available

10

Lawn-Boy 32104-121

Screw-Self Tap. Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

$9.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 73-1700

Handle-Lower Control

$

$

Not available

13

Lawn-Boy 37-8010

Bar-Switch

$

$

Not available

14

Lawn-Boy 56-6520

Tube-Upper

$

$

Not available

15

Lawn-Boy 37-6320

Bolt-Carriage

$

$

Not available

16

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 64-9040

Handle-Middle

$

$

Not available

18

Lawn-Boy 56-6540

Handle-Lower L.H.

$

$

Not available

Lawn-Boy 64-8570

Handle-Lower R.H.

Note: Not Illustrated

$64.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 64-7010

Decal-Danger

$

$

Not available

21

Lawn-Boy 64-9060

Decal-U.L.
(Superseded to 64-9061)

$

$

Not available

Lawn-Boy 73-1770

Loose Parts (Incl. Ref. #11, 15, 16)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 64-8910

Insulator-Power Cord

Note: Not Illustrated

$

$

Not available
