38010 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) Engine Assembly Parts Diagram

Snow Thrower

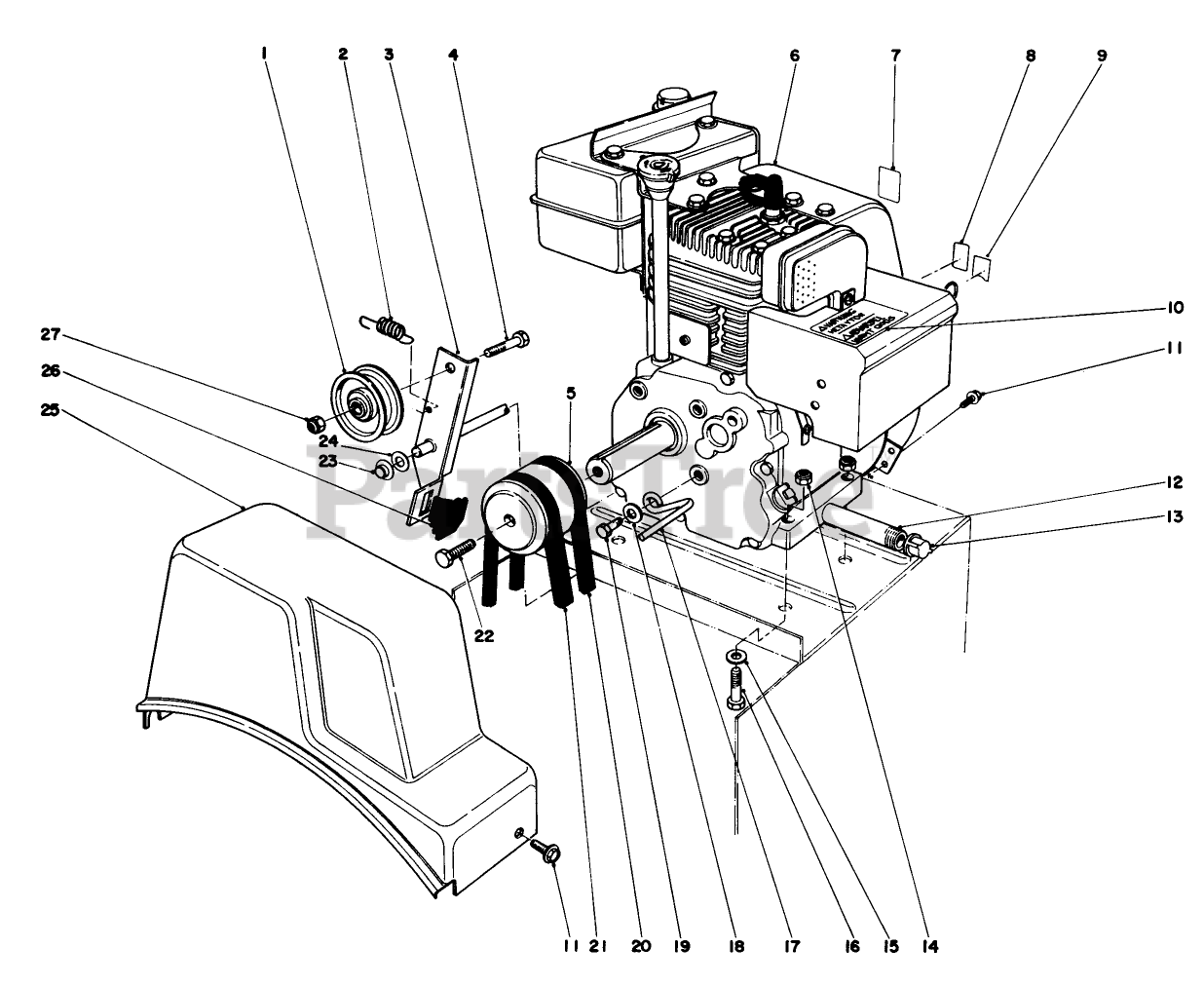

Engine Assembly Parts Diagram

  • Title

1

Toro 34244

Idler Pulley

$

$

Currently unavailable

2

Toro 10-3890

EXTENSION SPRING

$29.99

$

Usually ships in 3-6 days

0

3

Toro 8-8649

See Supercession: 14-7959
(Superseded to 14-7959)

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 12

0

5

Toro 40-8220

DISCONTINUED

$

$

Not available

6

Toro 221-664

Engine

$

$

Currently unavailable

7

Toro 39-3860

DISCONTINUED

$

$

Not available

8

Toro 37-8890

DISCONTINUED

$

$

Not available

9

Toro 39-3850

DISCONTINUED

$

$

Not available

10

Toro 29-6390

See Supercession: 53-7680
(Superseded to 53-7680)

$

$

Not available

11

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

12

Toro 289-8

DISCONTINUED

$

$

Not available

13

Toro 288-2

CAP-PIPE

$20.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

17

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0

18

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

19

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

20

Toro 37-9090

V BELT-3L, TRACTION

$15.99

$

In Stock, only 2 left!

0

21

Toro 37-9080

V-BELT

$21.99

$

In Stock, only 2 left!

0

22

Toro 41-8530

DISCONTINUED

$

$

Not available

23

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 37-6900

COVER-BELT

$77.99

$

Usually ships in 3-6 days

0

26

Toro 40-8140

See Supercession: 66-8060
(Superseded to 66-8060)

$19.99

$

In Stock, Qty 15

0

27

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0
