38010 (421) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) AUGER ASSEMBLY Parts Diagram

Snow Thrower

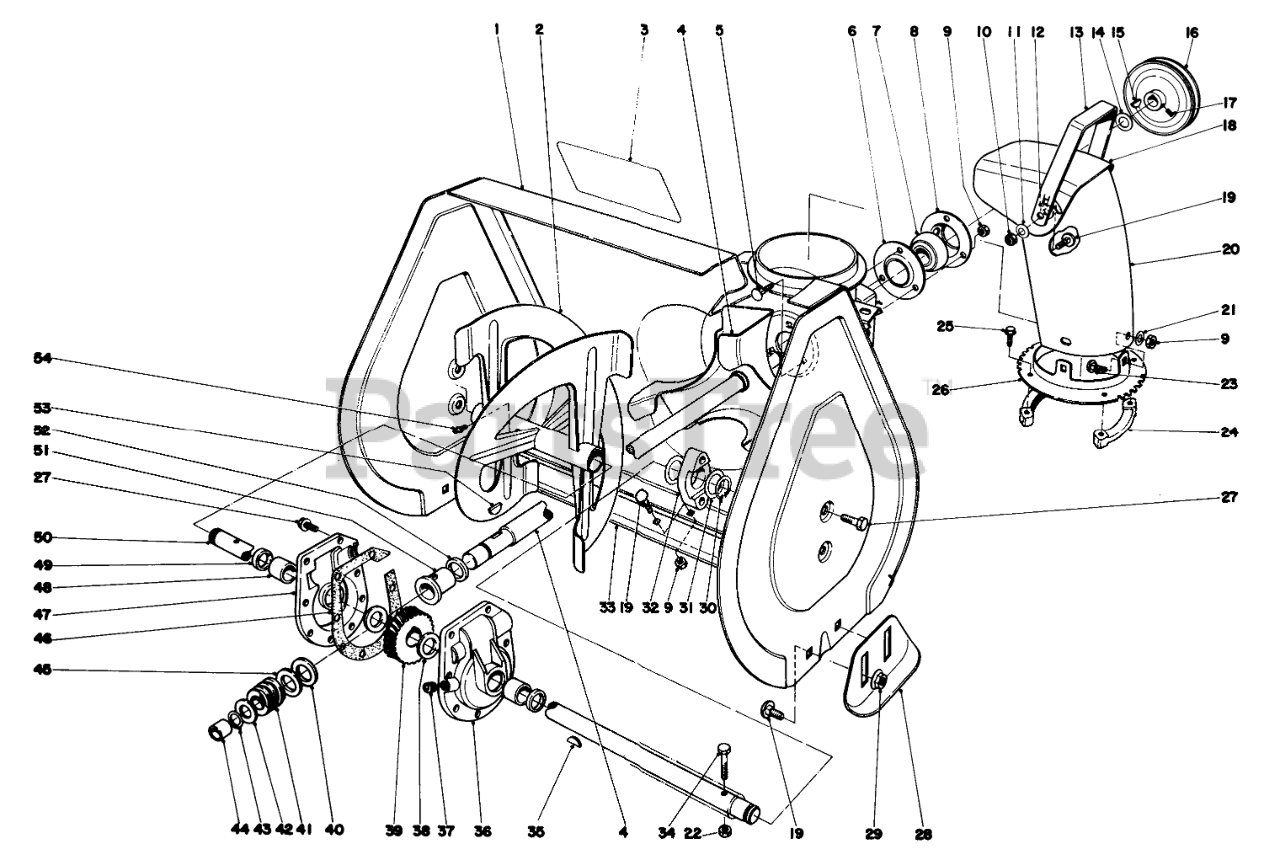

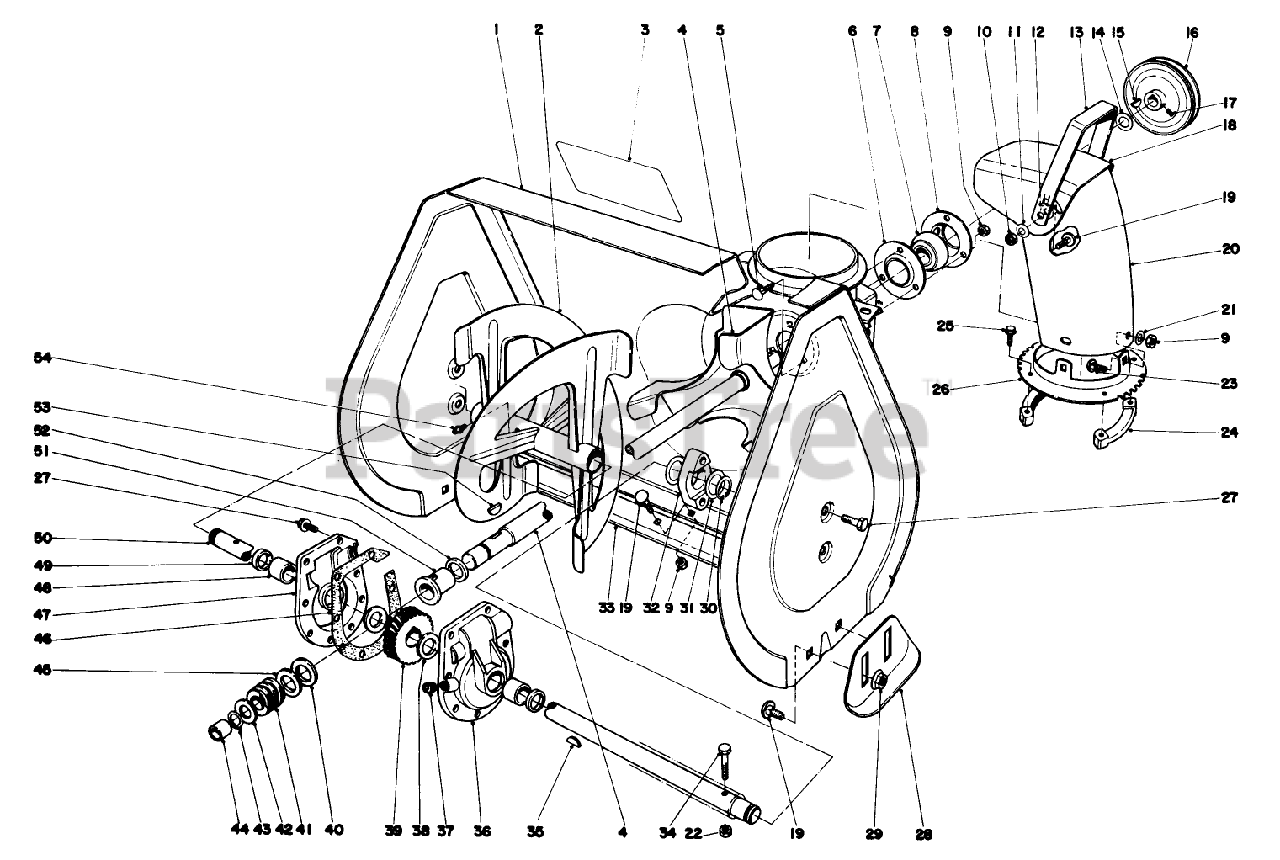

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6650

Auger Housing
(Superseded to 94-2784)

$

$

Not available

2

Toro 37-6670

Auger L.H.

$

$

Not available

Toro 37-6660

Auger R.H.

Note: Not illustrated

$

$

Not available

3

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

4

Toro 37-6990

Shaft & Impeiler
(Superseded to 37-6990-03)

$463.99

$

Usually ships in 3-6 days

0

5

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

6

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, only 1 left!

0

7

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$29.99

$

In Stock, only 1 left!

0

8

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, only 1 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

11

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

12

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

13

Toro 37-8930

Handle Deflector

$

$

Not available

14

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

15

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

16

Toro 37-6890

PULLEY

$216.99

$

Usually ships in 3-6 days

0

17

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

18

Toro 37-8920

Deflector
(Superseded to 11-9359)

$

$

Not available

19

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 37-8910

Chute-Discharge

$

$

Not available

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

23

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

24

Toro 37-6490

RING-CHUTE, RETAINER

$16.99

$

In Stock, Qty 5

0

25

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

26

Toro 37-8940

Chute Ring

$

$

Not available

27

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

28

Toro 3-3866

Skid
(Superseded to 40-8160-01)

$23.99

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 11

0

31

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

32

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$73.99

$

Usually ships in 3-6 days

0

33

Toro 37-6710

Scraper Blade
(Superseded to 39-1551-01)

$64.99

$

In Stock, Qty 6

0

34

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

36

Toro 37-8850

Gear Case R.H. (Incl. Ref. #48 & #49)
(Superseded to 14-2449)

$151.99

$

Usually ships in 3-6 days

0

37

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

38

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

39

Toro 23-9050

Gear
(Superseded to 5-7180)

$158.99

$

In Stock, only 2 left!

0

40

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

41

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

42

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

43

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

44

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

45

Toro 252-77

THRUST-WASHER

$10.99

$

In Stock, only 2 left!

0

46

Toro 19-8520

Gasket
(Superseded to 51-0460)

$7.99

$

In Stock, Qty 9

0

47

Toro 37-8860

Gear Case L.H. (Incl. Ref. #48 & #49)
(Superseded to 14-2459)

$151.99

$

Usually ships in 3-6 days

0

48

Toro 256-237

BUSHING

$15.99

$

In Stock, only 2 left!

0

49

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

50

Toro 37-6800

AUGER SHAFT

$229.99

$

Usually ships in 3-6 days

0

51

Toro 37-6560

BUSHING-INPUT

$42.99

$

In Stock, only 3 left!

0

52

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 2 left!

0

53

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

54

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

Toro 37-6960

21 GEAR CASE ASM

Note: Not illustrated

$

$

Not available
