38015 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981)

Snow Thrower

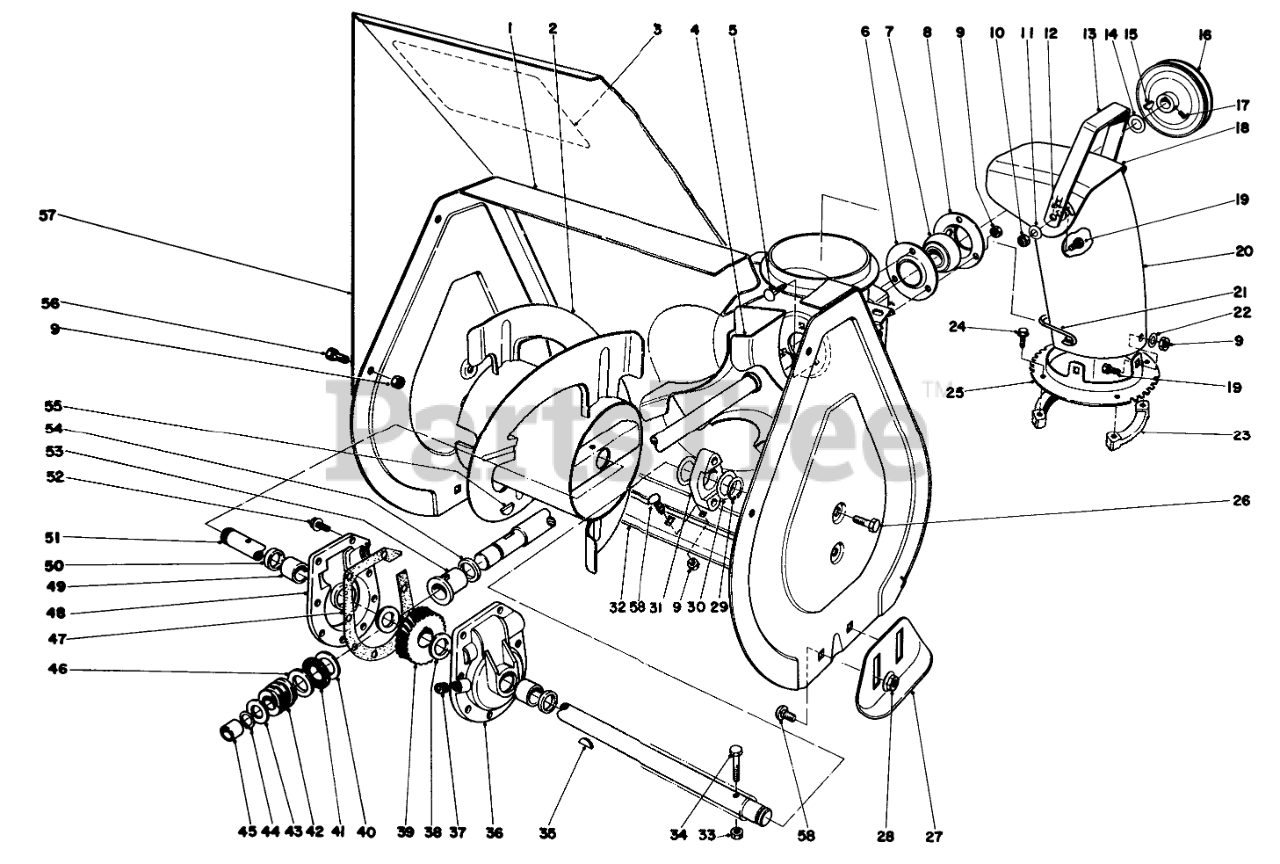

38015 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) > Parts Diagrams (9) > AUGER ASSEMBLY

  • Title
43-7320

1

Auger Housing

Part# 43-7320 (Superseded to 94-2784)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $793.21

39-1180

2

Auger R.H.

Part# 39-1180 (Superseded to 39-1180-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $329.89

39-1190

Auger L.H.

Part# 39-1190 (Superseded to 39-1190-03)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $328.31

42-1770

3

Decal

Part# 42-1770 (Superseded to 94-2568)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.88

37-6990

4

Shaft & Impeiler

Part# 37-6990 (Superseded to 37-6990-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $324.19

3230-10

5

BOLT-CARR

Part# 3230-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.82

26-6110

6

FLANGE-CUP, BEARING

Part# 26-6110

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.22

26-6100

7

Ball Bearing

Part# 26-6100 (Superseded to 12-8789)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.08

26-6120

8

FLANGE-CUP, BEARING

Part# 26-6120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.76

3296-29

9

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

32152-1

10

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

3290-340

11

WASHER-BELLEVILLE

Part# 3290-340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.47

204320

12

Rubber Washer

Part# 204320

OEM Warranty Repair Part for Toro

Currently unavailable

37-8930

13

Handle Deflector

Part# 37-8930

OEM Warranty Repair Part for Toro

Not available

3-0737

14

WASHER

Part# 3-0737

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.69

3257-5

15

KEY-WOODRUFF

Part# 3257-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.03

37-6890

16

PULLEY

Part# 37-6890

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $144.45

32424

17

Set Screw

Part# 32424

OEM Warranty Repair Part for Toro

Currently unavailable

37-8920

18

Deflector

Part# 37-8920 (Superseded to 11-9359)

OEM Warranty Repair Part for Toro

Not available

322-4

19

SCREW-HH

Part# 322-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

37-8910

20

Chute-Discharge

Part# 37-8910

OEM Warranty Repair Part for Toro

Not available

39-6370

21

Chute Guard

Part# 39-6370

OEM Warranty Repair Part for Toro

Not available

3256-23

22

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.72

37-6490

23

RING-CHUTE, RETAINER

Part# 37-6490

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.63

27-0220

24

SCREW-SPECIAL

Part# 27-0220

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.36

37-8940

25

Chute Ring

Part# 37-8940

OEM Warranty Repair Part for Toro

Not available

32144-11

26

SCREW-HWHTF

Part# 32144-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

40-8160

27

Skid

Part# 40-8160 (Superseded to 40-8160-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.46

32128-20

28

NUT-HF

Part# 32128-20

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

32151-36

29

RING-RETAINING

Part# 32151-36

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.65

5-1550

30

WASHER

Part# 5-1550

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.08

37-6550

31

BEARING-AUGER

Part# 37-6550 (Superseded to 136-8685)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.24

39-1550

32

Blade-Scraper

Part# 39-1550 (Superseded to 39-1551-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $49.63

32152-4

33

NUT-LOCK, CONE

Part# 32152-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-10

34

SCREW-HH

Part# 321-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

3257-33

35

KEY-WOODRUFF

Part# 3257-33

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.54

37-8860

36

Gear Case L.H. (Incl. Ref. #49 & 50)

Part# 37-8860 (Superseded to 14-2459)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.92

281-1

37

PLUG-PIPE, SQH

Part# 281-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.82

252-71

38

WASHER-THRUST

Part# 252-71

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.57

23-9050

39

Gear

Part# 23-9050 (Superseded to 5-7180)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $111.96

257-3

40

WASHER-THRUST

Part# 257-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.04

252-76

41

BEARING-THRUST

Part# 252-76

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.86

5-7170

42

GEAR

Part# 5-7170

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $88.87

3-8664

43

WASHER-THRUST

Part# 3-8664

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.30

32120-72

44

Ring-Snap

Part# 32120-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.76

256-32

45

BUSHING

Part# 256-32

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.01

252-80

46

WASHER-THRUST

Part# 252-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.10

40-8330

47

asket

Part# 40-8330 (Superseded to 51-0460)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.76

37-8850

48

Gear Case R.H. (Incl. Ref. #49 & 50)

Part# 37-8850 (Superseded to 14-2449)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.92

256-237

49

BUSHING

Part# 256-237

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.90

7-0045

50

SEAL-OIL

Part# 7-0045

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.53

37-6800

51

AUGER SHAFT

Part# 37-6800

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $160.66

32144-41

52

SCREW-TAPTITE

Part# 32144-41

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.14

37-6560

53

BUSHING-INPUT

Part# 37-6560

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.91

237-87

54

RING-QUAD

Part# 237-87

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.76

3257-23

55

KEY-WOODRUFF

Part# 3257-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.10

322-2

56

SCREW-HH

Part# 322-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.91

39-6270

57

AUGER EXT 21 SCAND

Part# 39-6270

OEM Warranty Repair Part for Toro

Not available

3230-1

58

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

37-6960

21 GEAR CASE ASM

Part# 37-6960

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $732.61
