38015 (421) - Toro Snow Thrower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

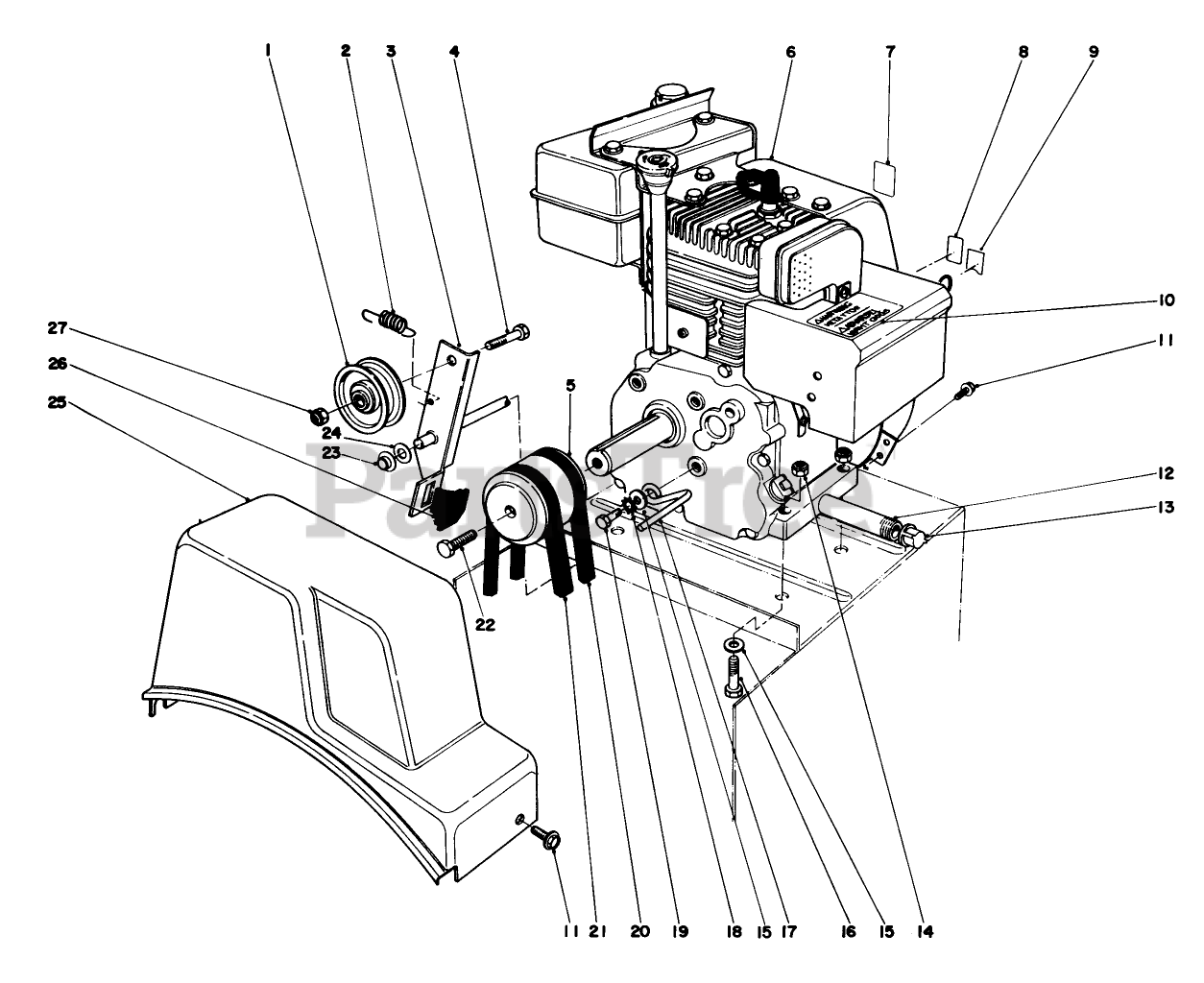

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

2

Toro 10-3890

EXTENSION SPRING

$22.99

$

Usually ships in 3-6 days

0

3

Toro 8-8649

Auger Clutch (Incl. Ref. #26)
(Superseded to 14-7959)

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

5

Toro 43-7370

PULLEY-ENGINE

$269.99

$

Usually ships in 3-6 days

0

6

Toro 221-664

Engine

$

$

Currently unavailable

7

Toro 39-7110

Decal-Primer

$

$

Not available

8

Toro 39-7050

Decal-Throttle

$

$

Not available

9

Toro 39-7090

CHOKE DECAL

$

$

Not available

10

Toro 39-7100

Decal
(Superseded to 53-7680)

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

12

Toro 289-8

PIPE NIPPLE

$

$

Not available

13

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 37-8990

RETAINER-BELT

$9.49

$

Usually ships in 3-6 days

0

18

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 11

0

19

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

20

Toro 37-9090

V BELT-3L, TRACTION

$14.99

$

In Stock, Qty 9

0

21

Toro 37-9080

V-BELT (29.50 INCH)

$20.99

$

In Stock, Qty 12

0

22

Toro 43-7290

SCREW-SPECIAL

$7.49

$

Usually ships in 3-6 days

0

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 37-6900

COVER-BELT

$61.99

$

In Stock, only 1 left!

0

26

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

27

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0
