38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 000000001 - 000999999) (1990) HOUSING & ROTOR ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

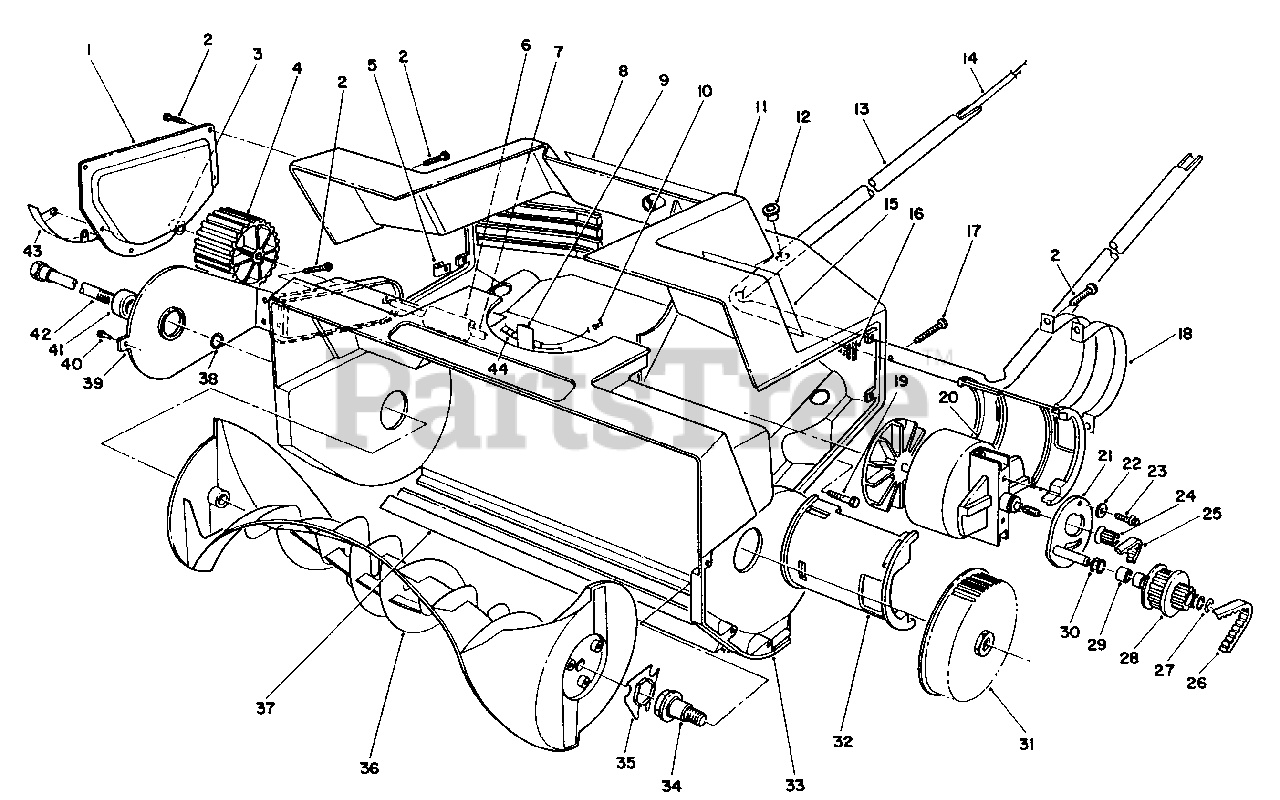

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-0220

Plate-Side

$

$

Not available

2

Lawn-Boy 32104-121

Screw-Pan Hd. Form
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 32112-1

Push Nut

$6.49

$

Usually ships in 3-6 days

0

$

$

Not available

5

Lawn-Boy 249-42

U-Clip-Tinnerman

$

$

Not available

6

Lawn-Boy 73-0250

Sleeve-Axle

$

$

Not available

7

Lawn-Boy 73-0370

Shaft-Axle

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 73-0450

Decal-Danger
(Superseded to 104-9382)

$

$

Not available

9

Lawn-Boy 249-44

Clip-Cord

$

$

Not available

10

Lawn-Boy 218-511

Connector

$

$

Not available

11

Lawn-Boy 73-0300

Shroud-Housing
(Superseded to 73-0301)

$

$

Not available

12

$0.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 73-0280

Tube-Lower Handle
(Superseded to 104-9365-03)

$73.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 73-0270

Wire Harness

$

$

Not available

15

Lawn-Boy 73-0460

Decal-Warning

$

$

Not available

16

Lawn-Boy 73-1800

Filter-Foam

$2.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 32144-88

Screw-Pan Hd. Form

$1.49

$

In Stock, only 4 left!

0

18

Lawn-Boy 73-0120

Strap-Motor

$6.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 32104-97

Hex Hd. Capscrew

$6.99

$

Usually ships in 3-6 days

0

20

$

$

Not available

21

Lawn-Boy 73-1540

Idler Bracket Assembly

$

$

Not available

22

Lawn-Boy 3256-49

Flat Washer

$0.99

$

In Stock, Qty 8

0

23

Lawn-Boy 32144-34

Hex Washer Hd. Screw

$4.99

$

In Stock, Qty 15

0

24

Lawn-Boy 73-0110

Pulley-Driver

$12.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 73-0160

Belt-Timing

$33.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 73-0210

Belt-Timing

$

$

Not available

27

Lawn-Boy 32120-46

Retaining Ring-External

$2.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 73-1910

Pulley-Idler (Incl. Ref. #29)

$

$

Not available

29

Bearing-Needle

$

$

Not available

30

Lawn-Boy 73-0041

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 73-0070

Pulley-Driven

$

$

Not available

32

Lawn-Boy 73-0090

Clamp-Motor Bracket

$

$

Not available

33

Lawn-Boy 73-0200

Housing-Rotor

$

$

Not available

34

Lawn-Boy 73-0990

Shaft-Rotor Driver

$41.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 73-0860

Coupler-Rotor

$15.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 73-0400

Rotor
(Superseded to 73-8590)

$34.99

$

In Stock, Qty 12

0

37

Lawn-Boy 73-1610

Scraper
(Superseded to 99-5390)

$

$

Not available

38

$1.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 73-1900

Bracket-Wheel (Incl. Ref. #41)

$

$

Not available

40

Lawn-Boy 3290-271

Rivet-Pop

$0.99

$

Usually ships in 3-6 days

0

41

Bearing-Ball

$

$

Not available

42

Lawn-Boy 73-0020

Shaft-Rotor
(Superseded to 107-3341)

$63.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 73-1570

Skid-Housing

$29.99

$

In Stock, Qty 7

0

44

Lawn-Boy 64-5820

Relief-Strain

$

$

Not available
