38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 003900001 - 003999999) (1993) HANDLE ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

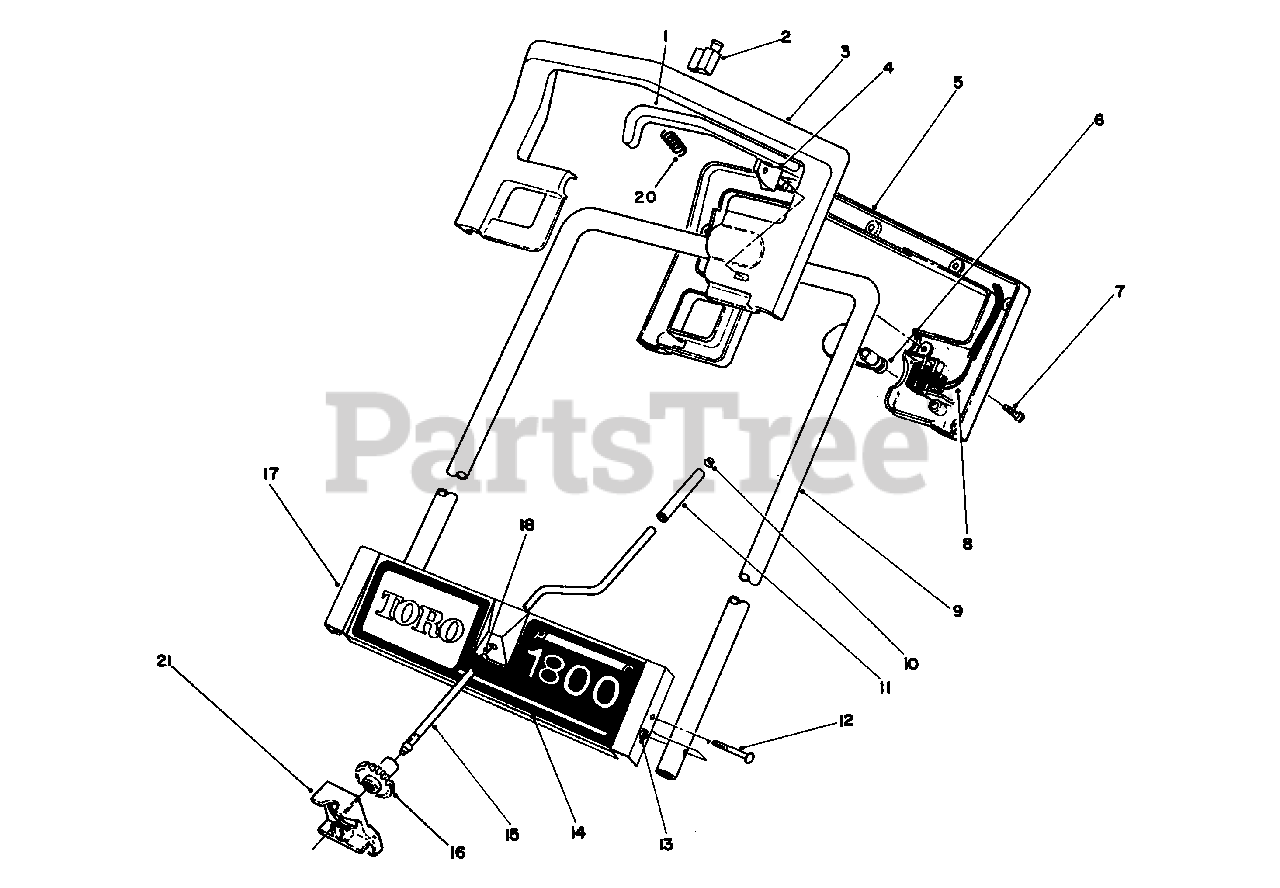

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 73-3510

Bar-Switch

$18.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 64-4930

Switch
(Superseded to 107-3323)

$16.99

$

In Stock, Qty 9

0

3

Lawn-Boy 73-5700

Handle-Upper Control

$32.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 73-5190

Key

$7.49

$

In Stock, Qty 7

0

5

Lawn-Boy 73-5710

Handle-Lower Control

$32.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 73-5690

Tab-Lock

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 32104-121

Screw-Pan Hd. Form.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 73-5640

Cord-Supply
(Superseded to 73-5642)

$12.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 73-3460

Tube-Upper Handle
(Superseded to 104-9364-03)

$

$

Not available

10

Lawn-Boy 32112-1

Push Nut

$6.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 73-0251

Sleeve-Chute Crank

$

$

Not available

12

Lawn-Boy 33-8951

Screw-Hex. Hd. Mach.

$1.49

$

In Stock, Qty 10

0

13

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 12

0

14

Lawn-Boy 73-0490

Decal-Escutcheon

$

$

Not available

15

Lawn-Boy 73-0240

Rod-Chute Crank

$30.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 73-0230

Gear-Chute Crank

$9.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 73-0310

Plate-Escutcheon
(Superseded to 73-0310-03)

$

$

Not available

18

Lawn-Boy 256-306

Bushing-Snap In

$1.49

$

In Stock, Qty 9

0

20

Lawn-Boy 73-3450

Spring

$1.49

$

In Stock, Qty 6

0

21

Lawn-Boy 73-3710

Brake-Gear

$5.99

$

Usually ships in 3-6 days

0
