38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 049000001 - 049999999) (1994) HOUSING & ROTOR ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

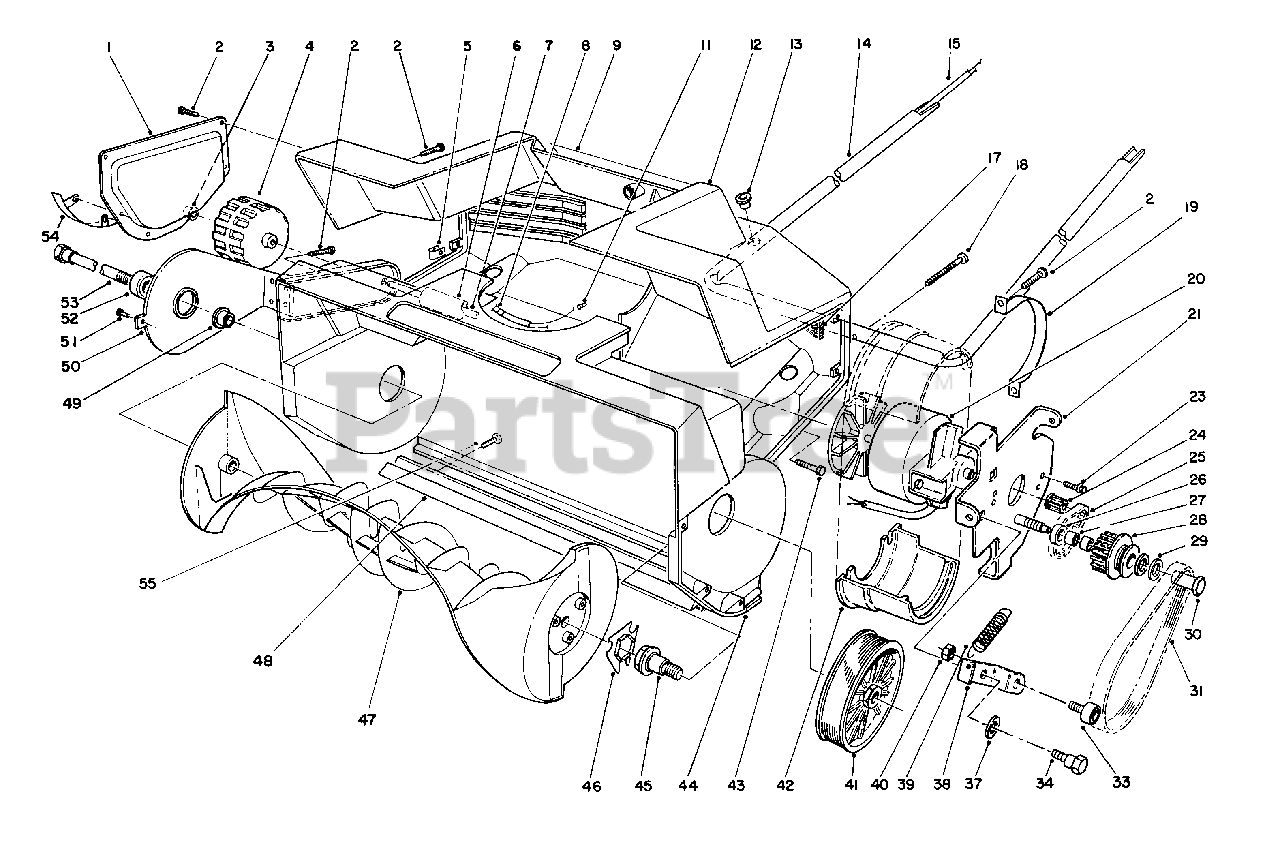

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-0220

Plate-Side

$

$

Not available

2

Lawn-Boy 32104-121

Screw-Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 32112-1

Push Nut

$6.49

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 249-42

U-Clip-Tinnerman

$

$

Not available

6

Lawn-Boy 73-0250

Sleeve-Axle

$

$

Not available

7

Lawn-Boy 73-0370

Shaft-Axle

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 64-5820

Relief-Strain

$

$

Not available

9

Lawn-Boy 73-0450

Decal-Danger
(Superseded to 104-9382)

$

$

Not available

11

Lawn-Boy 218-511

Connector

$

$

Not available

12

Lawn-Boy 73-0302

Shroud-Housing

$189.99

$

Usually ships in 3-6 days

0

13

$0.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 73-0280

Tube-Lower Handle
(Superseded to 104-9365-03)

$73.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 73-3630

Wire Harness
(Superseded to 110-3111)

$26.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 73-1800

Filter-Foam

$2.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 32144-88

Screw-Pan Hd.

$1.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 73-0120

Strap-Motor

$6.99

$

Usually ships in 3-6 days

0

20

$

$

Not available

21

Lawn-Boy 73-8680

Motor Plate Assembly

$83.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 32144-100

Screw-Hex. Washer Hd.

$1.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 73-3660

Pulley-Driver

$16.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 73-0160

Belt-Timing

$33.99

$

In Stock, only 3 left!

0

26

$4.49

$

In Stock, Qty 10

0

27

Lawn-Boy 252-102

Bearing-Needle

$

$

Not available

28

Lawn-Boy 73-3810

PulleyAssembly-Idler (Incl. Ref. #27)

$

$

Not available

29

Lawn-Boy 73-0041

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 73-3530

Bolt-Idler

$15.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 61-8801

Belt-Drive
(Superseded to 61-8802)

$34.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 73-5730

Bearing Assembly (Incl. Ref. #40)

$34.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 27-0411

Screw-Shoulder

$2.99

$

Usually ships in 3-6 days

0

37

$3.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 73-3600

Bracket-Idler

$

$

Not available

39

$4.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 3296-47

Nut-Lock

$3.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 73-3550

Pulley-Driven

$39.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 73-3650

Clamp-Motor Bracket

$

$

Not available

43

Lawn-Boy 32104-97

Screw-Hex. Hd.

$6.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 73-3640

Housing-Rotor

$242.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 73-0990

Shaft-Rotor Driver

$41.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 73-0860

Coupler-Rotor

$15.99

$

Usually ships in 3-6 days

0

47

$34.99

$

In Stock, Qty 12

0

48

$30.99

$

In Stock, Qty 7

0

49

$3.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 73-1900

Bracket-Wheel (Incl. Ref. #52)

$

$

Not available

51

Lawn-Boy 3290-271

Rivet-Pop

$0.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

53

Lawn-Boy 73-0020

Shaft-Rotor
(Superseded to 107-3341)

$63.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 73-1570

Skid-Housing

$29.99

$

In Stock, Qty 7

0

55

Lawn-Boy 32144-108

Screw-Pan Hd.
(Superseded to 106-6461)

$1.99

$

Usually ships in 3-6 days

0
