38025 (1800) - Toro Power Curve Snow Thrower (SN: 059000001 - 059999999) (1995) Housing Rotor Assembly Parts Diagram

Power Curve Snow Thrower

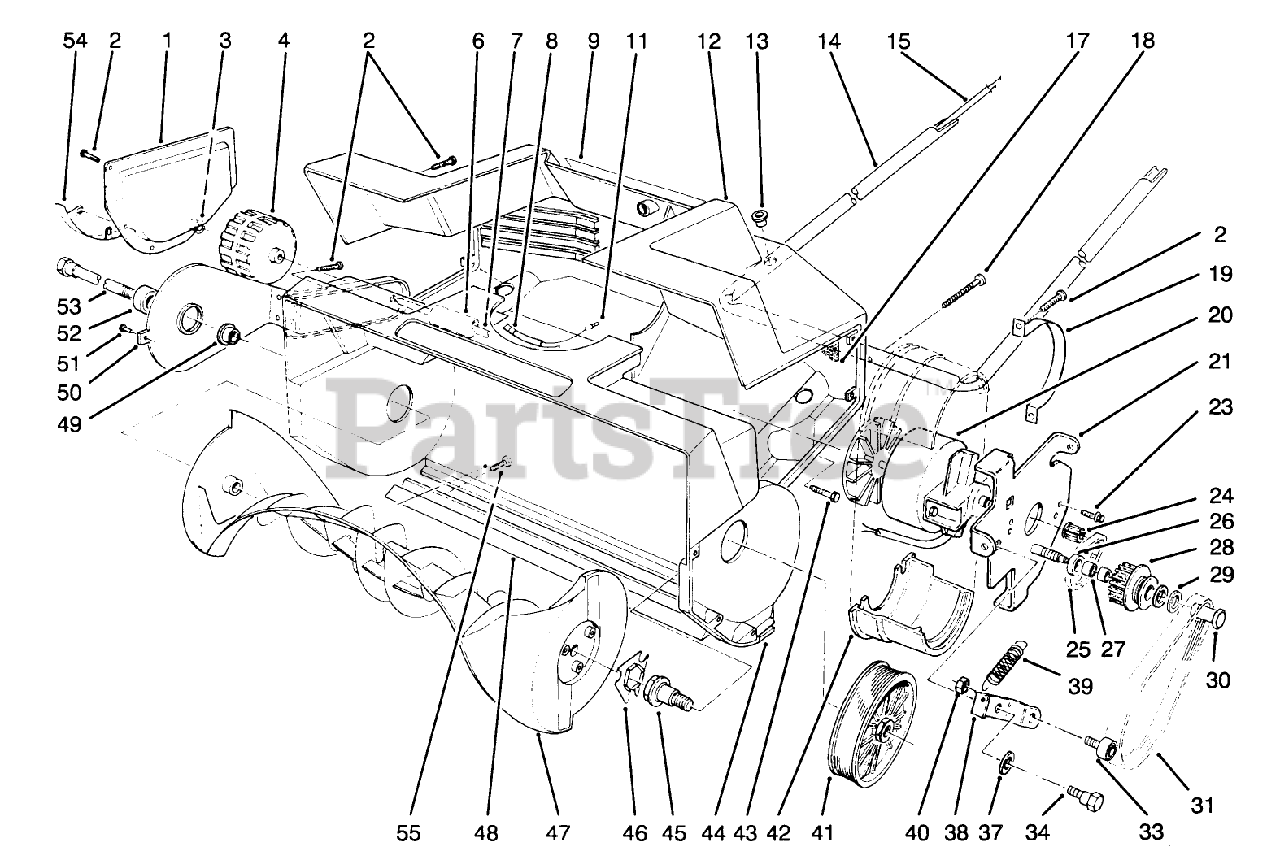

Housing Rotor Assembly Parts Diagram

  • Title

1

Toro 73-9370

See Supercession: 73-9370-03
(Superseded to 73-9370-03)

$37.99

$

Usually ships in 3-6 days

0

2

Toro 32104-121

See Supercession: 94-4496
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 73-5720

WHEEL, 1200/1800

$

$

Not available

6

Toro 73-0250

DISCONTINUED

$

$

Not available

7

Toro 73-0370

AXLE SHAFT

$14.99

$

Usually ships in 3-6 days

0

8

Toro 64-5820

STRAIN RELIEF-GRIPMASTR

$

$

Not available

9

Toro 73-0450

See Supercession: 104-9382
(Superseded to 104-9382)

$

$

Not available

11

Toro 218-511

CONNECTOR SCREW

$

$

Not available

12

Toro 73-9320

SHROUD - 1800 P.C.

$

$

Not available

13

Toro 256-307

BUSHING

$

$

Not available

14

Toro 73-0280

See Supercession: 104-9365-03
(Superseded to 104-9365-03)

$

$

Not available

15

Toro 73-3630

See Supercession: 110-3111
(Superseded to 110-3111)

$

$

Not available

17

Toro 73-1800

FOAM FILTER

$

$

Not available

18

Toro 32144-88

SCREW-PLASTIC, PPH

$1.99

$

In Stock, only 2 left!

0

19

Toro 73-0120

STRAP-MOTOR, FINISHED

$

$

Not available

20

Toro 73-3520

MOTOR, 1800

$

$

Not available

21

Toro 73-8680

PLATE - MOTOR ASSY.

$107.99

$

Usually ships in 3-6 days

0

23

Toro 32144-100

TEKS SCREW

$1.49

$

In Stock, only 1 left!

0

24

Toro 73-3660

DRIVER PULLEY

$

$

Not available

25

Toro 73-0160

BELT-PULLEY, IDLER/DRIVER

$35.99

$

In Stock, only 1 left!

0

26

Toro 73-3580

WASHER

$4.49

$

In Stock, Qty 12

0

27

Toro 252-102

DISC - ORD PULLEY

$

$

Not available

28

Toro 73-3810

DISCONTINUED

$

$

Not available

29

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

30

Toro 73-3530

IDLER BOLT

$19.99

$

Usually ships in 3-6 days

0

31

Toro 61-8802

BELT

$41.99

$

In Stock, only 3 left!

0

33

Toro 73-5730

IDLER BEARING

$43.99

$

Usually ships in 3-6 days

0

34

Toro 27-0411

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

37

Toro 25-5641

WASHER

$

$

Not available

38

Toro 73-3600

IDLER BRACKET

$

$

Not available

39

Toro 73-3680

IDLER SPRING

$5.99

$

Usually ships in 3-6 days

0

40

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

41

Toro 73-3550

DRIVEN PULLEY

$43.99

$

In Stock, only 1 left!

0

42

Toro 73-3650

1800 CLAMP MTR BRCKT

$

$

Not available

43

Toro 32104-97

SCREW-HWH THD CUT

$7.49

$

Usually ships in 3-6 days

0

44

Toro 73-3640

ROTOR/HOUSING 1800

$

$

Not available

45

Toro 73-0990

SHAFT, ROTOR DRIVE

$53.99

$

Usually ships in 3-6 days

0

46

Toro 73-0860

COUPLER, ROTOR

$19.99

$

Usually ships in 3-6 days

0

47

Toro 73-8590

ROTOR - 1800 SNOWBLOWER

$

$

Not available

48

Toro 73-3690

SCRAPER - 1800

$35.99

$

In Stock, only 2 left!

0

49

Toro 73-8580

BUSHING

$4.49

$

Usually ships in 3-6 days

0

50

Toro 73-1900

WHEEL BRKT ASSY/1800

$

$

Not available

51

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

52

Toro 61-8780

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

53

Toro 73-0020

See Supercession: 107-3341
(Superseded to 107-3341)

$

$

Not available

54

Toro 73-1570

SKID, 1800

$34.99

$

In Stock, Qty 7

0

55

Toro 32144-108

See Supercession: 106-6461
(Superseded to 106-6461)

$1.99

$

Usually ships in 3-6 days

0
