38035 (3521) - Toro Snow Thrower (SN: 004000001 - 004999999) (1984) Magneto No. 611030 Parts Diagram

Snow Thrower

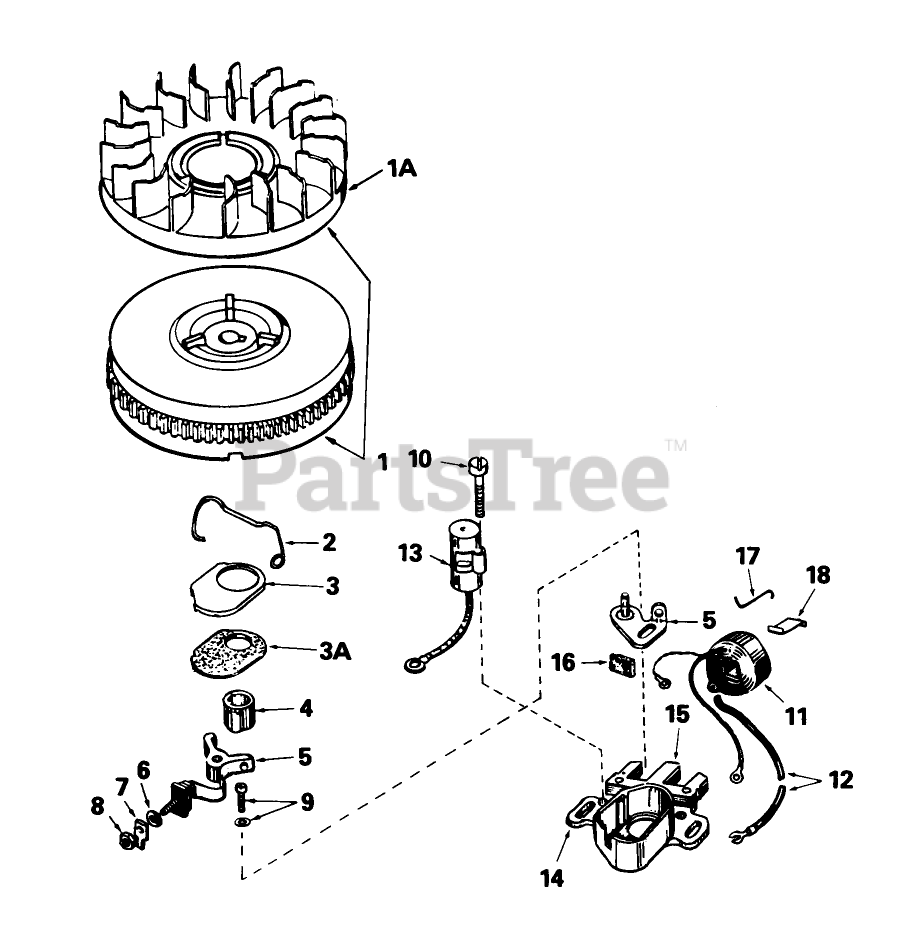

Magneto No. 611030 Parts Diagram

  • Title

1

Toro 611029

Flywheel (Incl. Ref. #1A)

$

$

Currently unavailable

1A

Toro 610933

Fan

$

$

Currently unavailable

2

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

3

Toro 610947

Cover-Dust

$

$

Currently unavailable

3A

Toro 610955

Gasket-Dust Cover

$

$

Currently unavailable

4

Toro 30992

Cam-Breaker

$

$

Currently unavailable

5

Toro 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

6

Toro 610385

Washer

$

$

Currently unavailable

7

Toro 33356

Terminal, Ground

$

$

Currently unavailable

8

Toro 610408

DECAL

$

$

Not available

9

Toro 29181

Breaker Screw

$

$

Currently unavailable

10

Toro 610593

Condenser Screw

$

$

Currently unavailable

11

Toro 30560A

Coil Assy. (Incl. No. 12)

$

$

Currently unavailable

12

Toro 30554

Wire, Lead

$

$

Currently unavailable

13

Toro 30548B

Condenser

$

$

Currently unavailable

14

Toro 30545

Core Plate

$

$

Currently unavailable

15

Toro 30561B

Stator Assy. (Incl. Ref. #2 thru 11, 13, 14, 16, 17 19)

$

$

Currently unavailable

16

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

17

Toro 31311

Clip, Coil

$

$

Currently unavailable
