38035 (3521) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) Engine Tecumseh Model H35-4559op Parts Diagram

Snow Thrower

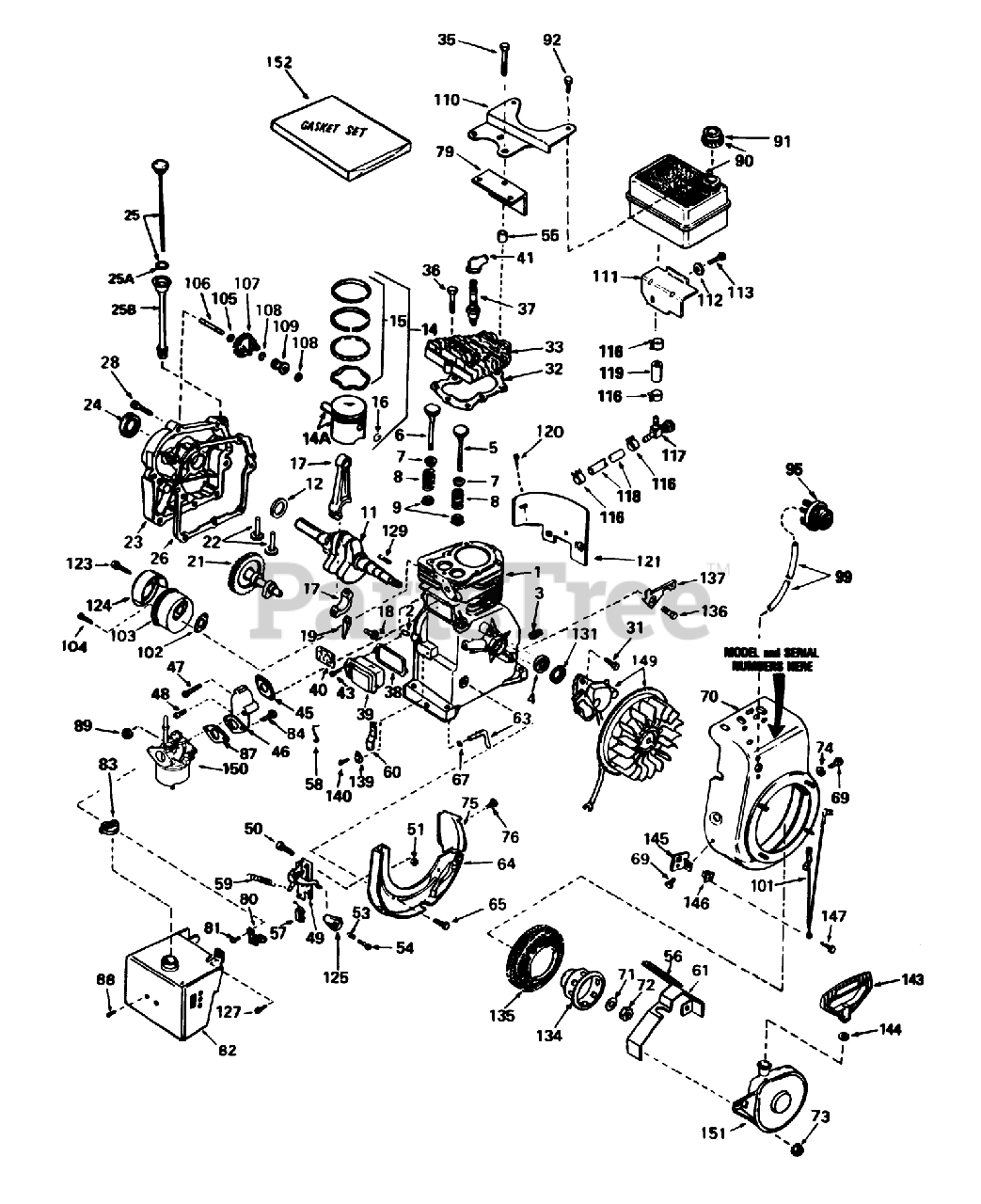

Engine Tecumseh Model H35-4559op Parts Diagram

  • Title

1

Tecumseh 34708

63580 GIL HANDLE BA
(Superseded to 36560A)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, only 3 left!

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 29314B

Valve, Intake (Std.) (Incl. Ref. #40)
(Superseded to 29314C)

$5.99

$

In Stock, only 2 left!

0

5

Tecumseh 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Not available

6

Tecumseh 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Not available

6

Tecumseh 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$

$

Not available

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 17

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 34734A

Crankshaft

$156.99

$

Usually ships in 3-12 days

0

12

Tecumseh 32323

Washer-Thrust

$8.49

$

In Stock, only 2 left!

0

14

Tecumseh 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Not available

14

Tecumseh 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Not available

14

Tecumseh 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$79.99

$

In Stock, only 1 left!

0

14A

Tecumseh 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Not available

14A

Tecumseh 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Not available

14A

Tecumseh 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)
(Superseded to 32875A)

$47.99

$

In Stock, only 2 left!

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

19

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 3 left!

0

21

Tecumseh 33149A

Camshaft (Compression Release)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 34674

Cover, Cylinder (Incl. Ref. #24 106)
(Superseded to 34674C)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 20+

0

25

Tecumseh 34676

Dipstick
(Superseded to 34676A)

$15.99

$

In Stock, only 2 left!

0

25A

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 2 left!

0

25B

Tecumseh 33893A

Tube Fill

$

$

Not available

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$7.49

$

In Stock, Qty 11

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

In Stock, only 1 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$16.99

$

In Stock, only 2 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, only 2 left!

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 4 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 20+

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.99

$

In Stock, Qty 20+

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$7.49

$

In Stock, Qty 8

0

39

Tecumseh 31337

Breather Assembly (Incl. Nos. 52 84)
(Superseded to 31337B)

$18.99

$

In Stock, only 2 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 8

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, Qty 13

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$1.99

$

In Stock, Qty 16

0

46

Tecumseh 28416A

Pipe-Intake (Incl. Ref. #47)

$

$

Not available

47

Tecumseh 650840

Screw-Hex Hd.

$1.99

$

Usually ships in 3-12 days

0

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 10

0

49

Tecumseh 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 3 left!

0

50

Tecumseh 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 3 left!

0

51

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

53

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, Qty 7

0

54

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, Qty 6

0

55

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 12

0

56

Tecumseh 32576

Seal, Snowguard

$

$

Not available

57

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 14

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

In Stock, Qty 5

0

59

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, Qty 5

0

61

Tecumseh 34127

Guard-Starter

$

$

Not available

63

Tecumseh 31334

Rod-Governor

$

$

Not available

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production, the speed control assembly is riveted to the blower housing baffle.Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 4 left!

0

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 1 left!

0

70

Tecumseh 34813

Housing-Blower
(Superseded to 33663E)

$

$

Not available

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 9

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

74

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, only 2 left!

0

76

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

79

Tecumseh 33344

Baffle-Heat

$5.49

$

Usually ships in 3-12 days

0

80

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 2 left!

0

81

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 1 left!

0

82

Tecumseh 35122

Cover-Carburetor
(Superseded to 35122A)

$60.99

$

Usually ships in 3-12 days

0

83

Tecumseh 35156

Knob-Control
(Superseded to 35439)

$3.99

$

In Stock, only 2 left!

0

84

Tecumseh 6201

See Supercession: 111-1250

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$2.99

$

In Stock, Qty 20+

0

88

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 5

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

90

Tecumseh 34711

481-1261 SENATOR TI
(Superseded to 35584)

$45.99

$

In Stock, only 2 left!

0

91

Tecumseh 34210

Cap, Fuel

$8.49

$

In Stock, Qty 5

0

92

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 20+

0

95

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

Usually ships in 3-12 days

0

99

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, Qty 12

0

101

Tecumseh 34241

Wire-Ground

$3.99

$

In Stock, only 1 left!

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates parts included in Gasket Set Ref. Num 152.

$1.49

$

In Stock, Qty 10

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650493

Screw

$3.99

$

In Stock, only 2 left!

0

105

Tecumseh 30590A

Washer-Flat
(Superseded to 651080)

$1.99

$

In Stock, only 2 left!

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, Qty 9

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 13

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 14

0

110

Tecumseh 28371

Bracket, Fuel Tank-Upper
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

111

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

112

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 4 left!

0

116

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

In Stock, Qty 11

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, only 2 left!

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, Qty 13

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

123

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 20+

0

124

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, only 4 left!

0

125

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 2 left!

0

127

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, Qty 20+

0

129

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 5

0

131

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

134

Tecumseh 34694

Cup-Starter

$11.99

$

In Stock, only 2 left!

0

135

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

136

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 17

0

137

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, only 1 left!

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, Qty 8

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 6

0

143

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 2 left!

0

144

Tecumseh 27261

Washer

$1.99

$

Usually ships in 3-12 days

0

145

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 28545

Grommet

$1.99

$

Usually ships in 3-12 days

0

147

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 4 left!

0

149

Tecumseh 611030

Magneto (The complete magneto in not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list)

$

$

Currently unavailable

150

Tecumseh 632378

Carburetor (Incl. Ref. #87)
(Superseded to 632378A)

$121.99

$

In Stock, only 1 left!

0

151

Tecumseh 590576

Starter Assy.-Rewind
(Superseded to 590604)

$

$

Not available

152

Tecumseh 33233

Gasket Set (Incl. items marked*
(Superseded to 33233A)

$16.99

$

In Stock, only 2 left!

0
