38035 (3521) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) REWIND STARTER NO. 590576 Parts Diagram

Snow Thrower

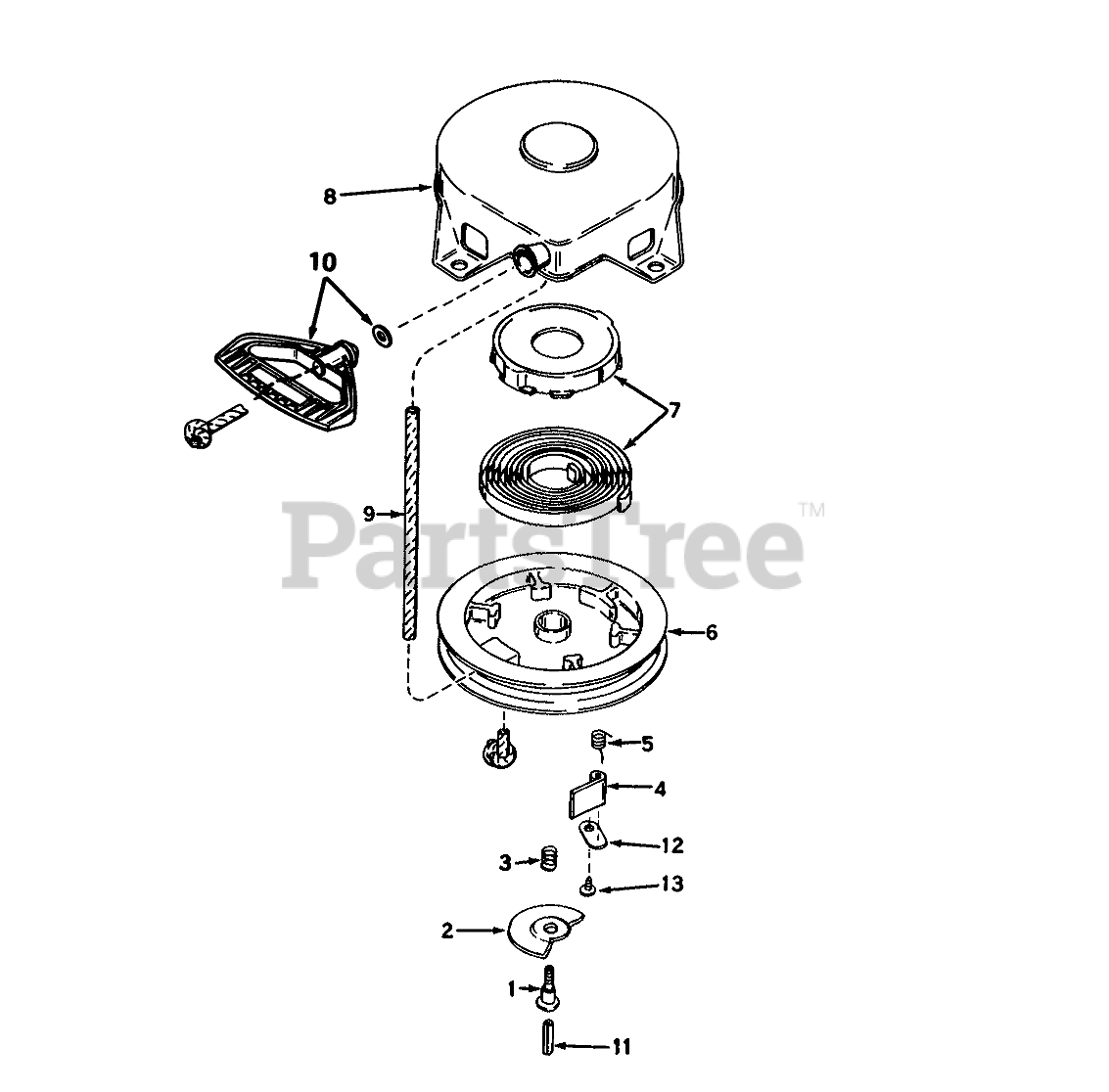

REWIND STARTER NO. 590576 Parts Diagram

  • Title

1

Tecumseh 590409A

Screw

$3.99

$

In Stock, only 1 left!

0

2

Toro 490474

Cam-Dog

$

$

Currently unavailable

3

Spring-Brake

$

$

Not available

4

Tecumseh 490148

Dog-Starter

$

$

Currently unavailable

5

Tecumseh 590475

Spring-Dog

$3.99

$

In Stock, only 1 left!

0

6

Tecumseh 590478

Pulley

$

$

Not available

7

Toro 490414

Spring & Keeper Assy.

$

$

Currently unavailable

8

Tecumseh 590577

Housing Assy.-Starter (Incl. Ref. #1)

$

$

Not available

9

Tecumseh 590451

Rope, Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 18

0

10

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

11

Tecumseh 590459

Centering

$

$

Not available

12

Tecumseh 590476

Retainer-Dog

$5.99

$

Usually ships in 3-12 days

0

13

Toro 490477

Screw

$

$

Currently unavailable
