38035 (3521) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) Engine Tecumseh Model H35-45598r Parts Diagram

Snow Thrower

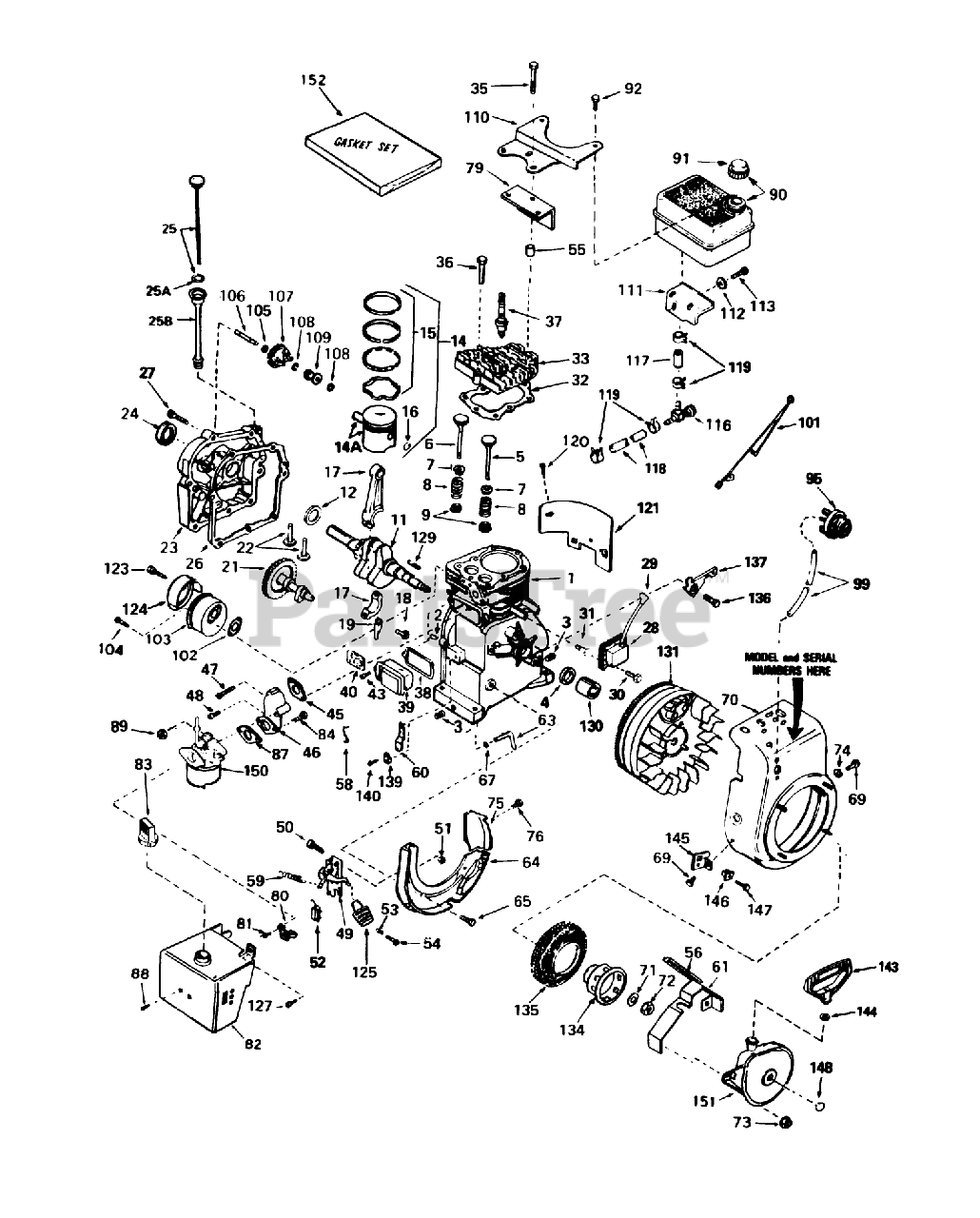

Engine Tecumseh Model H35-45598r Parts Diagram

  • Title

1

Toro 34708A

Cylinder Assembly (Incl. Ref. #2, 3 35)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 29314B

Valve, Intake (Std.) (Incl. Ref. #40)

$

$

Currently unavailable

5

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34734A

Crankshaft

$

$

Currently unavailable

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14A

Toro 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

19

Toro 32654

Dipper-Oil

$

$

Currently unavailable

21

Toro 33149A

Camshaft (Compression Release)

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 34674

Cover, Cylinder (Incl. Ref. #24 106)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

25

Toro 34676

Dipstick

$

$

Currently unavailable

25A

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

25B

Toro 33893A

Tube Fill

$

$

Currently unavailable

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

27

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

28

Toro 34443A

Solid State

$

$

Currently unavailable

29

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

30

Toro 650814

Screw

$

$

Currently unavailable

31

Toro 650872

Stud

$

$

Currently unavailable

32

Toro 29953B

Gasket-Cylinder Head

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

33

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

35

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

36

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

45

Toro 26754

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

46

Toro 28416A

Pipe-Intake (Incl. Ref. #47)

$

$

Currently unavailable

47

Toro 650840

Screw-Hex Hd.

$

$

Currently unavailable

48

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

49

Toro 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

50

Toro 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

51

Toro 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

52

Toro 610973

Terminal

$

$

Currently unavailable

53

Toro 31342

Spring-Compression

$

$

Currently unavailable

54

Toro 650549

Screw

$

$

Currently unavailable

55

Toro 28212

pacer

$

$

Currently unavailable

56

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

58

Toro 31858

Jet-Main

$

$

Currently unavailable

59

Toro 31426

Spring-Extension

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

61

Toro 34127

Guard-Starter

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 34813A

Housing-Blower

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 650863

Nut-Flywheel

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

74

Toro 650168

Washer

$

$

Currently unavailable

75

Toro 33341

Baffle-Extension

$

$

Currently unavailable

76

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

79

Toro 33344

Baffle-Heat

$

$

Currently unavailable

80

Toro 32398

Bracket-Choke

$

$

Currently unavailable

81

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

82

Toro 35122

Cover-Carburetor

$

$

Not available

83

Toro 35439

Knob-Choke

$

$

Currently unavailable

84

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

87

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

88

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

90

Toro 34711

481-1261 SENATOR TI

$3.23

$

Usually ships in 3-6 days

0

91

Toro 34210

Cap, Fuel

$

$

Currently unavailable

92

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

95

Toro 34814

Primer Assy.

$

$

Currently unavailable

99

Toro 32180C

Line-Primer

$

$

Currently unavailable

101

Toro 35253

Ground Wire

$

$

Currently unavailable

102

Toro 30081

Gasket Exhaust

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$

$

Currently unavailable

103

Toro 30996

Muffler

$

$

Currently unavailable

104

Toro 650493

Screw

$

$

Currently unavailable

105

Toro 30590A

Washer-Flat

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

111

Toro 34182

Bracket-Fuel Tank

$

$

Currently unavailable

112

Toro 650675

Washer

$

$

Currently unavailable

113

Toro 650805

Screw Assembly

$

$

Currently unavailable

116

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

117

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

123

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

124

Toro 30997

Cover-Muffler

$

$

Currently unavailable

125

Toro 35440

Knob-Control

$

$

Currently unavailable

127

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

129

Toro 610961

Key-Flywheel

$

$

Currently unavailable

130

Toro 34080

Spacer

$

$

Currently unavailable

131

Toro 611081

CLAMP

$

$

Not available

134

Toro 34694

Cup-Starter

$

$

Currently unavailable

135

Toro 35185

Screen-Starter

$

$

Currently unavailable

136

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

137

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

143

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

144

Toro 650168

Washer

$

$

Currently unavailable

145

Toro 34126

Bracket

$

$

Currently unavailable

146

Toro 28545

Grommet

$

$

Currently unavailable

147

Toro 650643

Screw

$

$

Currently unavailable

148

Toro 35161

Plug-Starter

$

$

Currently unavailable

150

Toro 632378

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

151

Toro 590604

Starter-Rewind

$

$

Currently unavailable

152

Toro 33233

Gasket Set (Incl. items marked*

$

$

Currently unavailable
