38035 (3521) - Toro Snow Thrower (SN: 009000001 - 009999999) (1989) Engine Tecumseh Model H35-45598t Parts Diagram

Snow Thrower

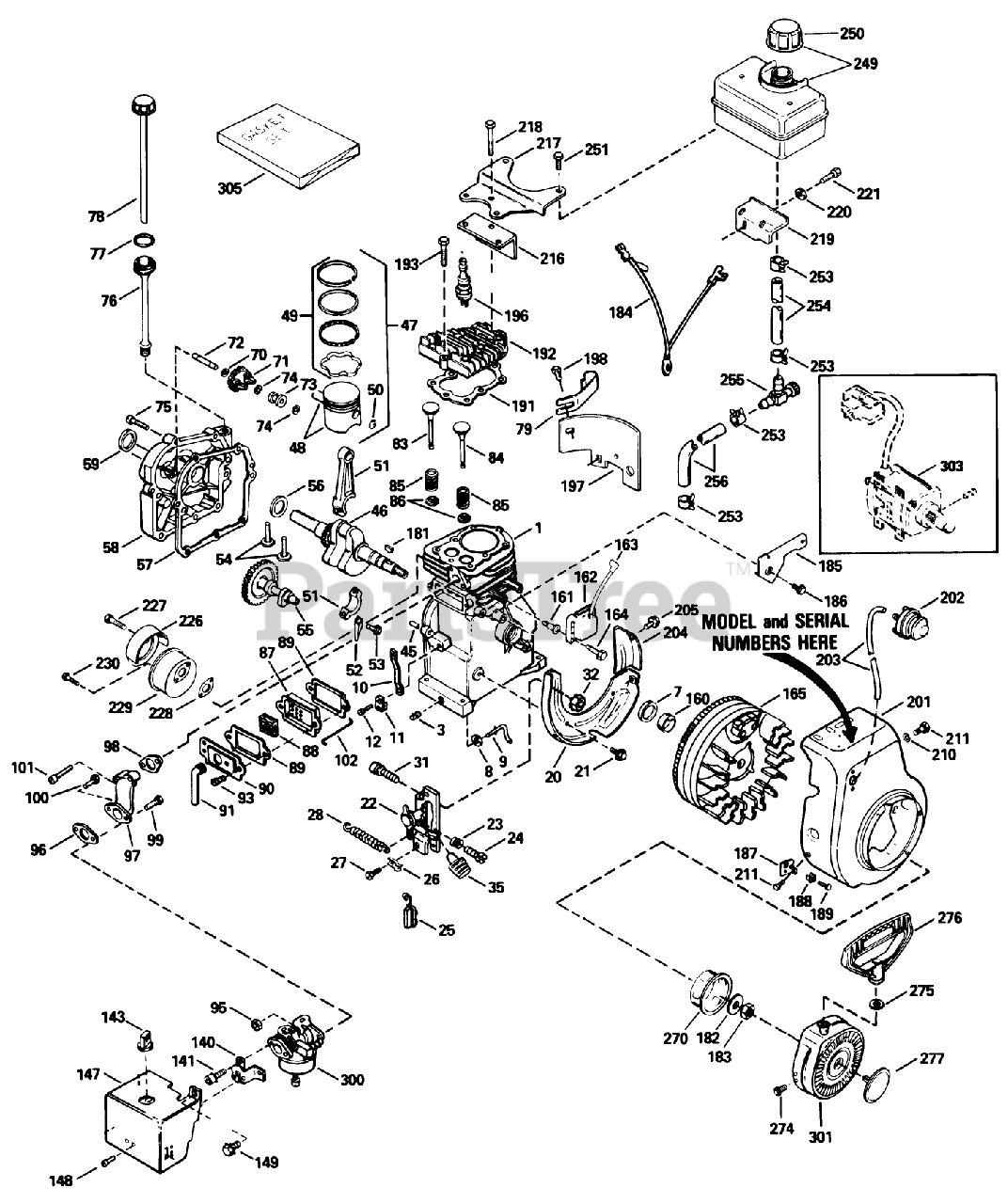

Engine Tecumseh Model H35-45598t Parts Diagram

  • Title

1

Toro 34708A

Cylinder Assembly (Incl. Ref. #2, 3 35)

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

7

Toro 32600

Seal-Oil

$

$

Currently unavailable

8

Toro 28277

Washer-Flat

$

$

Currently unavailable

9

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

10

Toro 31510

Lever-Governor

$

$

Currently unavailable

11

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

12

Toro 650548

Screw

$

$

Currently unavailable

20

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

$

$

Not available

21

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

22

Toro 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)

$

$

Currently unavailable

23

Toro 31342

Spring-Compression

$

$

Currently unavailable

24

Toro 650549

Screw

$

$

Currently unavailable

25

Toro 610973

Terminal

$

$

Currently unavailable

26

Toro 27793

Conduit

$

$

Currently unavailable

27

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

28

Toro 31426

Spring-Extension

$

$

Currently unavailable

31

Toro 650139

Screw

$

$

Currently unavailable

32

Toro 30322

Nut-Lock

$

$

Currently unavailable

35

Toro 35440

Knob-Control

$

$

Currently unavailable

45

Toro 26727

Pin-Dowel

$

$

Currently unavailable

46

Toro 34734A

Crankshaft

$

$

Currently unavailable

47

Toro 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

47

Toro 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

47

Toro 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

48

Toro 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Currently unavailable

48

Toro 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

48

Toro 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

49

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

49

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

49

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

50

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

51

Toro 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)

$

$

Currently unavailable

52

Toro 32654

Dipper-Oil

$

$

Currently unavailable

53

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

54

Toro 27241

Lifter-Valve

$

$

Currently unavailable

55

Toro 33149A

Camshaft (Compression Release)

$

$

Currently unavailable

56

Toro 32323

Washer-Thrust

$

$

Currently unavailable

57

Toro 27677

Gasket-Cylinder Cover

$

$

Currently unavailable

58

Toro 34674A

Cover-Cylinder (Incl. Ref. #59 72)

$

$

Currently unavailable

59

Toro 27897

Seal-Oil

$

$

Currently unavailable

70

Toro 30590A

Washer-Flat

$

$

Currently unavailable

71

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

72

Toro 30574

Shaft-Governor

$

$

Currently unavailable

73

Toro 30588A

Spool-Governor

$

$

Currently unavailable

74

Toro 29193

Ring-Retaining

$

$

Currently unavailable

75

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

76

Toro 35554

Tube-Fill, Oil

$

$

Currently unavailable

77

Toro 35499

O-Ring

$

$

Currently unavailable

78

Toro 35556

Dipstick

$

$

Currently unavailable

79

Toro 35539

Clip-Tube, Fill

$

$

Currently unavailable

83

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

83

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

84

Toro 29314B

Valve, Intake (Std.) (Incl. Ref. #40)

$

$

Currently unavailable

84

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

85

Toro 31672

Spring-Valve

$

$

Currently unavailable

86

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

87

Toro 27666

Body-Breather
(Superseded to 704563)

$179.99

$

Usually ships in 3-6 days

0

88

Toro 31410

Element-Breather

$

$

Currently unavailable

89

Toro 27234

Gasket-Breather

$

$

Currently unavailable

90

Toro 34146

Cover-Breather

$

$

Currently unavailable

91

Toro 35350

Tube-Breather

$

$

Currently unavailable

93

Toro 650128

Screw

$

$

Currently unavailable

95

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

96

Toro 26756

Gasket

$

$

Currently unavailable

97

Toro 28416A

Pipe-Intake (Incl. Ref. #47)

$

$

Currently unavailable

98

Toro 26754

Gasket-Intake

$

$

Currently unavailable

99

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

100

Toro 650840

Screw-Hex Hd.

$

$

Currently unavailable

101

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

102

Toro 31858

Jet-Main

$

$

Currently unavailable

140

Toro 32398

Bracket-Choke

$

$

Currently unavailable

141

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

143

Toro 35439

Knob-Choke

$

$

Currently unavailable

147

Toro 35122

Cover-Carburetor

$

$

Not available

148

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

149

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

160

Toro 34080

Spacer

$

$

Currently unavailable

161

Toro 650872

Stud

$

$

Currently unavailable

162

Toro 34443A

Solid State

$

$

Currently unavailable

163

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

164

Toro 650814

Screw

$

$

Currently unavailable

165

Toro 611081

CLAMP

$

$

Not available

181

Toro 610961

Key-Flywheel

$

$

Currently unavailable

182

Toro 650815

Washer-Belleville

$

$

Currently unavailable

183

Toro 650863

Nut-Flywheel

$

$

Currently unavailable

184

Toro 35557

Wire-Ground

$

$

Currently unavailable

185

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

186

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

187

Toro 34126

Bracket

$

$

Currently unavailable

188

Toro 28545

Grommet

$

$

Currently unavailable

189

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

191

Toro 29953C

Gasket-Cylinder Head

$

$

Currently unavailable

192

Toro 30579A

Head-Cylinder

$

$

Currently unavailable

193

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

196

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

197

Toro 29745

Extension-Blower

$

$

Currently unavailable

198

Toro 650128

Screw

$

$

Currently unavailable

201

Toro 35656

Housing-Blower

$

$

Currently unavailable

202

Toro 570682

Primer-Asm

$

$

Currently unavailable

203

Toro 32180C

Line-Primer

$

$

Currently unavailable

204

Toro 33341

Baffle-Extension

$

$

Currently unavailable

205

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

210

Toro 650168

Washer

$

$

Currently unavailable

211

Toro 29212

Screw

$

$

Currently unavailable

216

Toro 33344

Baffle-Heat

$

$

Currently unavailable

217

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

218

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

219

Toro 34182

Bracket-Fuel Tank

$

$

Currently unavailable

220

Toro 650675

Washer

$

$

Currently unavailable

221

Toro 650805

Screw Assembly

$

$

Currently unavailable

226

Toro 30997

Cover-Muffler

$

$

Currently unavailable

227

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

228

Toro 30081

Gasket Exhaust

$

$

Currently unavailable

229

Toro 30996

Muffler

$

$

Currently unavailable

230

Toro 650493

Screw

$

$

Currently unavailable

249

Toro 35584

Tank Assembly-Fuel (Incl. Ref. #250 253)
(Superseded to 704775)

$

$

Not available

250

Toro 35355

Cap-Fuel

$

$

Currently unavailable

251

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

253

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

254

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

255

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

256

Toro 30705

Line-Fuel

$

$

Currently unavailable

270

Toro 34694

Cup-Starter

$

$

Currently unavailable

274

Toro 650884

Screw, Hex Hd.

$

$

Currently unavailable

275

Toro 650168

Washer

$

$

Currently unavailable

276

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

277

Toro 35392

Plug Starter

$

$

Currently unavailable

300

Toro 632378

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

301

Toro 590646

Rewind Starter

$

$

Currently unavailable

303

Electric Starter Kit 33290C (Optional) Sold as Accessory

$

$

Not available

305

Toro 33233

Gasket Set (Incl. items marked*

$

$

Currently unavailable
