38040 (524) - Toro Snow Thrower (SN: 002000001 - 002999999) (1982) TRACTION ASSEMBLY Parts Diagram

Snow Thrower

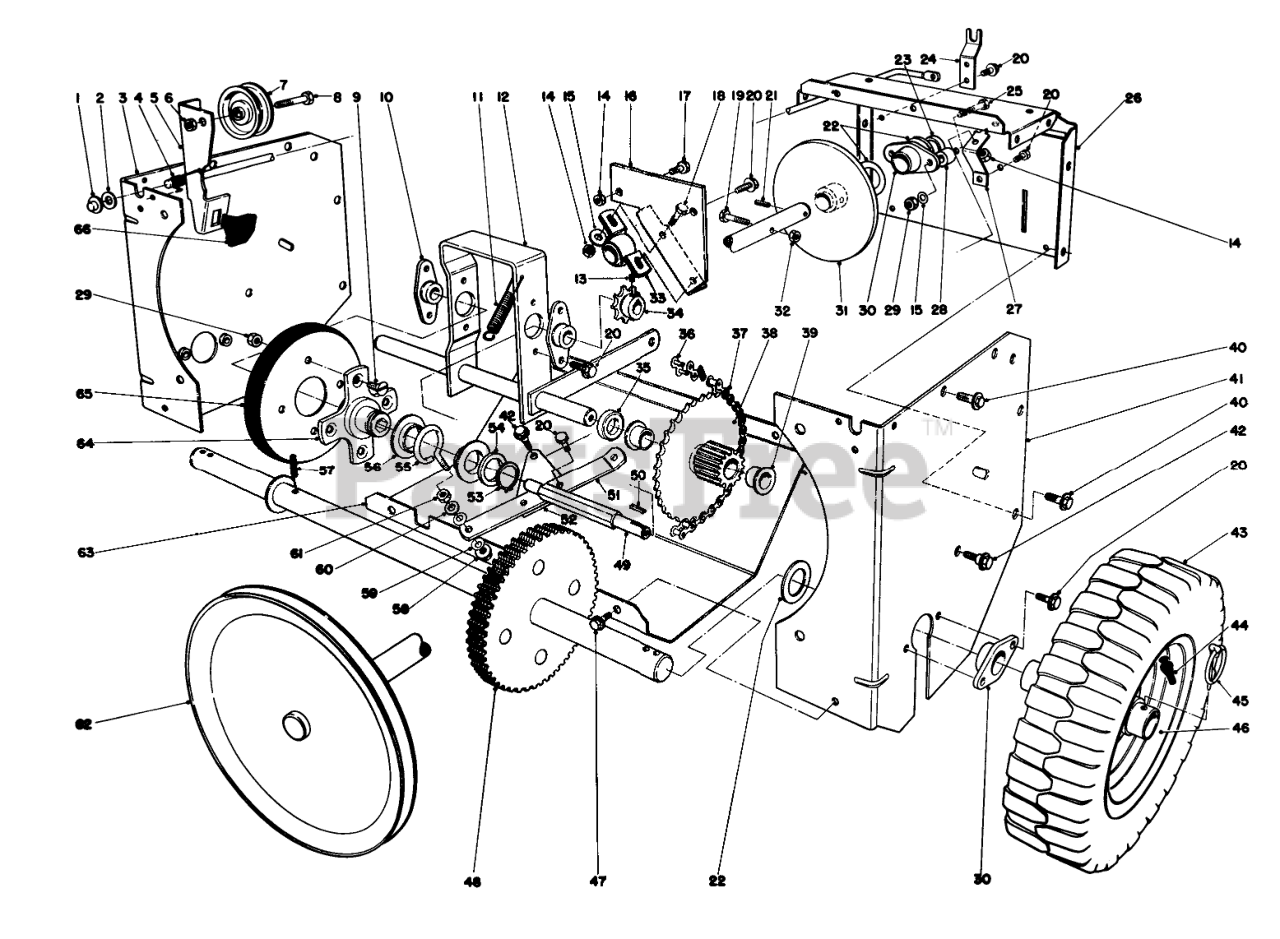

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

3

Toro 20-1420

RH TRACT SIDE PLT R

$

$

Not available

4

Toro 20-1160

TORSION CLUTCH SPRING

$18.99

$

In Stock, only 1 left!

0

5

Toro 8-9019

Clutch Rod (Incl. Ref. #66)

$

$

Not available

6

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

7

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

8

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

9

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

10

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$37.99

$

In Stock, only 2 left!

0

11

Toro 11-4640

TENSION SPRING

$

$

Not available

12

Toro 20-1580

PIVOT SHAFT WA B

$

$

Not available

13

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 36-9990

SHAFT SUPT BRKT B

$

$

Not available

17

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

20

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

21

Toro 32132-6

Roll Pin
(Superseded to 3212-16)

$19.99

$

In Stock, Qty 15

0

22

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

23

Toro 26-6370

DRIVE SHAFT SPACER

$

$

Not available

24

Toro 20-1080

CLUTCH ROD SUPPORT
(Superseded to 57-8480)

$

$

Not available

25

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

26

Toro 26-6360

CENTER FRAME R

$

$

Not available

27

Toro 20-1760

PIVOT BRACKET

$

$

Not available

28

Toro 26-6380

BRG STANDOFF

$

$

Not available

29

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 20-1730

AXLE BEARING

$40.99

$

In Stock, Qty 10

0

31

Toro 20-1550

FRICTION PLT WA
(Superseded to 20-1550-03)

$

$

Not available

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

33

Toro 36-9980

PILLOW BLOCK BRG

$88.99

$

In Stock, only 1 left!

0

34

Toro 5-9820

SPROCKET

$97.99

$

Usually ships in 3-6 days

0

35

Toro 3-7384

COSHAFT SPACER

$

$

Not available

36

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

37

Toro 20-1810

ROLLER-CHAIN

$79.99

$

Usually ships in 3-6 days

0

38

Toro 20-1640

Gear & Bushing (Incl. Ref. #39)
(Superseded to 94-8856)

$156.99

$

Usually ships in 3-6 days

0

39

Toro 3-1506

BUSHING

$2.99

$

Usually ships in 3-6 days

0

40

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

41

Toro 20-1430

LH TRACT SIDE PLT R

$

$

Not available

42

Toro 11-8140

SHOULDER SCREW

$

$

Not available

43

Toro 231-80

Tire
(Superseded to 99-3240)

$166.99

$

Usually ships in 3-6 days

0

44

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

45

Toro 3290-243

PIN-LYNCH

$28.99

$

Usually ships in 3-6 days

0

46

Toro 20-1750

Wheel
(Superseded to 241-128)

$185.99

$

Usually ships in 3-6 days

0

47

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

48

Toro 20-1680

AXLE & GEAR WA

$

$

Not available

49

Toro 20-1630

FRICTION WHL SHAFT

$99.99

$

In Stock, only 1 left!

0

50

$12.99

$

In Stock, only 2 left!

0

51

Toro 20-1780

SHIFT LINKAGE

$

$

Not available

52

Toro 20-1770

PIVOT PLATE

$

$

Not available

53

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 9

0

54

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

55

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$55.99

$

Usually ships in 3-6 days

0

56

Toro 11-8080

SLIDER RING

$

$

Not available

57

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

58

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

59

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

60

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

61

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

62

Toro 22-7930

PULLEY/SHFT WA

$339.99

$

In Stock, only 1 left!

0

63

Toro 20-1840

LOWER SHIELD R

$121.99

$

Usually ships in 3-6 days

0

64

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

65

Toro 40-8170

FRICTION WHEEL

$74.99

$

In Stock, Qty 5

0

66

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

Toro 20-9800

Tire Chain Kit
(Superseded to 62-7630)

Note: Optional equipment

$

$

Not available

Toro 20-9800

Tire Chain Kit
(Superseded to 62-7630)

Note: Not illustrated

$

$

Not available

Toro 8-8359

Loose Parts (Model 38040)

Note: Not illustrated

$

$

Not available

Toro 8-8389

Loose Parts Kit (Model 38050)

Note: Not illustrated

$

$

Currently unavailable

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available

Toro 232-36

TUBE

Note: Optional equipment

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
