38040 (524) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) Engine, Tecumseh Model No. H70-130257j (7 H.p. Snowthrower Model No. 38050) Parts Diagram

Snow Thrower

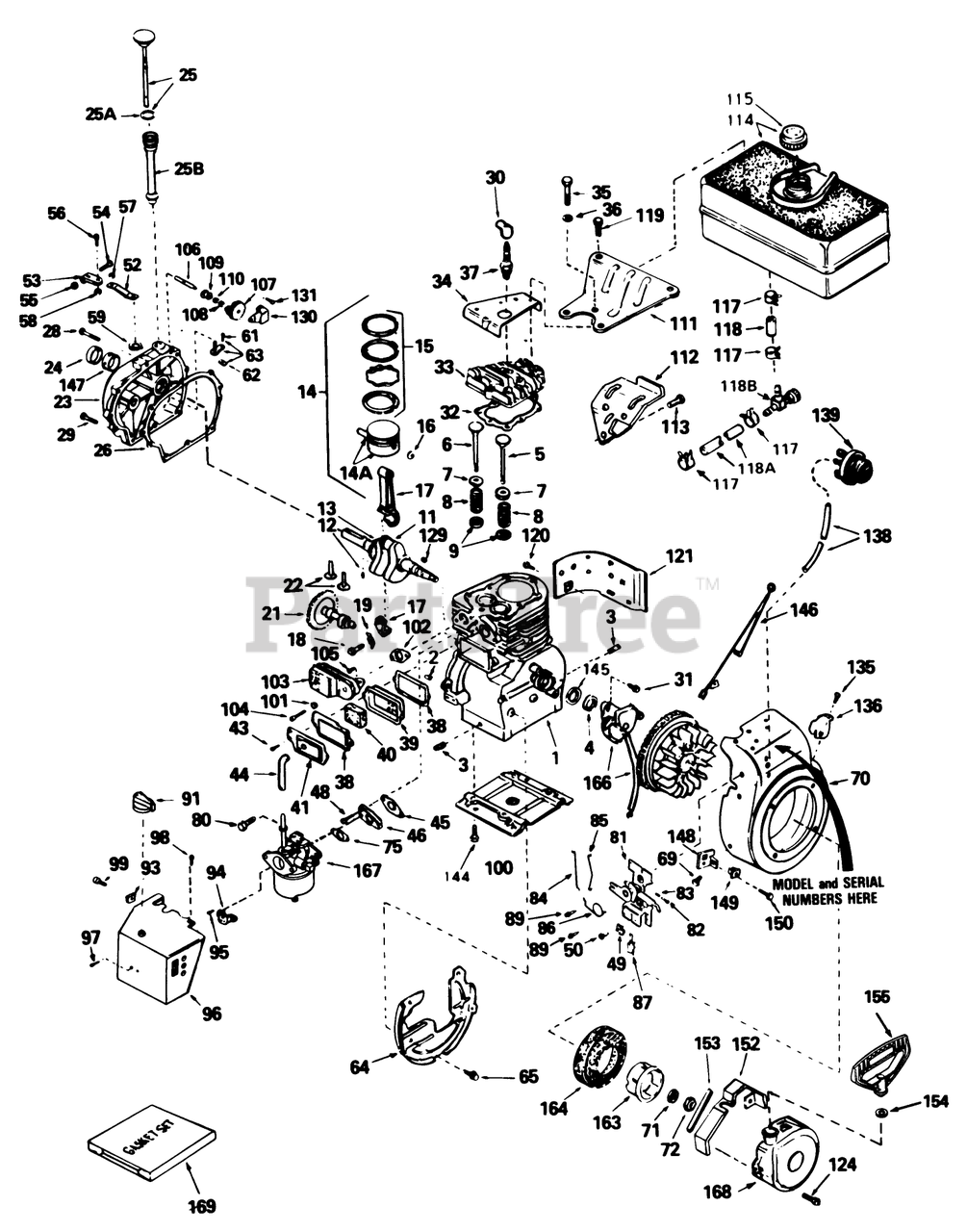

Engine, Tecumseh Model No. H70-130257j (7 H.p. Snowthrower Model No. 38050) Parts Diagram

  • Title

1

Toro 32586B

Cylinder Assy. (Incl. Nos. 2, 3 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 34889

Crankshaft Assy. (Incl. Ref. #12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 34517

Piston, Pin Ring Assy. (Std.) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

14

Toro 34518

Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #19A, 20 21 )

$

$

Currently unavailable

14

Toro 34519

Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

14A

Toro 32592B

Piston Pin Assy. (Std.) (Incl. Ref. #20)

$

$

Currently unavailable

14A

Toro 32593B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

14A

Toro 32594B

Piston Pin Assy-. (.020 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

15

Toro 32595

ORing

$

$

Currently unavailable

15

Toro 32596

Ring Set (.010" OS)

$

$

Currently unavailable

15

Toro 32597

Ring Set (.020" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

18

Toro 650662B

Bolt, Connecting Rod

$

$

Currently unavailable

19

Toro 34242

Dipper-Oil

$

$

Currently unavailable

21

Toro 32115

Camshaft

$1.49

$

In Stock, Qty 11

0

22

Toro 34034

Lifter-Valve

$

$

Currently unavailable

23

Toro 31303B

Cover, Cylinder (Incl. Nos. 24 106)

$

$

Currently unavailable

24

Toro 28427

Oil Seal

$

$

Currently unavailable

25

Toro 34011A

Dipstick, Oil (Incl. Ref. #88)

$

$

Currently unavailable

25A

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

25B

Toro 33893A

Tube Fill

$

$

Currently unavailable

26

Toro 30684

Gasket-Cover, Cylinder

Note: Included in Gasket Set Ref Num 169

$

$

Currently unavailable

28

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

29

Toro 650493

Screw

$

$

Currently unavailable

30

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 32631

Gasket-Cylinder Head

Note: Included in Gasket Set Ref Num 169

$

$

Currently unavailable

33

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

35

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

36

Toro 650691

Washer-Flat

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

38

Toro 27896

Gasket-Breather

Note: Included in Gasket Set Ref Num 169

$

$

Currently unavailable

39

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

40

Toro 28424

Element-Breather

$

$

Currently unavailable

41

Toro 28425

Cover-Valve

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 27627

Tube-Breather

$

$

Currently unavailable

45

Toro 27915

Gasket-Intake

Note: Included in Gasket Set Ref Num 169

$

$

Currently unavailable

46

Toro 34712

481-1279 SENATOR RO

$3.23

$

Usually ships in 3-6 days

0

48

Toro 30196

Screw

$

$

Currently unavailable

49

Toro 27793

Conduit

$

$

Currently unavailable

50

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

52

Toro 33454

Lever-Governor

$

$

Currently unavailable

53

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

54

Toro 29826

Screw

$

$

Currently unavailable

55

Toro 29216

Nut-Lock

$

$

Currently unavailable

56

Toro 650548

Screw

$

$

Currently unavailable

57

Toro 29918

Washer-Lock

$

$

Currently unavailable

58

Toro 30322

Nut-Lock

$

$

Currently unavailable

59

Toro 29642

Ring-Retaining

$

$

Currently unavailable

61

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

62

Toro 30700

Yoke-Governor

$

$

Currently unavailable

63

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

$

$

Currently unavailable

64

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

69

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

70

Toro 34830

Housing, Blower (Incl. Ref. #135 136)

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 8116

DISCONTINUED

$

$

Not available

75

Toro 31688

Gasket-Carburetor
(Superseded to 704627)

Note: Included in Gasket Set Ref Num 169

$

$

Not available

80

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

81

Toro 34664

Control Assy., Remote Speed (Incl. Ref. #90 thru 93)

$

$

Currently unavailable

82

Toro 650549

Screw

$

$

Currently unavailable

83

Toro 31342

Spring-Compression

$

$

Currently unavailable

84

Toro 34661

Governor Link

$

$

Currently unavailable

85

Toro 34662

Link-Throttle

$

$

Currently unavailable

86

Toro 34663

Spring-Throttle

$

$

Currently unavailable

87

Toro 610973

Terminal

$

$

Currently unavailable

89

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

91

Toro 35156

Knob-Control

$

$

Currently unavailable

93

Toro 650764

Nut-U Type

$

$

Currently unavailable

94

Toro 32398

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 35060

Carburetor Cover

$

$

Currently unavailable

97

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

98

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

99

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

100

Toro 29538

Base Engine

$

$

Currently unavailable

101

Toro 26073

Washer

$

$

Currently unavailable

102

Toro 27930

Gasket Exhaust

Note: Included in Gasket Set, Ref. Num 169.

$

$

Currently unavailable

103

Toro 32401

Muffler

$

$

Currently unavailable

104

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

105

Toro 30196

Screw

$

$

Currently unavailable

106

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 30590A

Washer-Flat

$

$

Currently unavailable

111

Toro 34159

Bracket-Fuel Tank

$

$

Currently unavailable

112

Toro 34158

Bracket-Fuel Tank

$

$

Currently unavailable

113

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

114

Toro 34186

Tank Assy., Fuel (Incl. Ref. #115)

$

$

Currently unavailable

115

Toro 34210

Cap, Fuel

$

$

Currently unavailable

117

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

118

Toro 30962

Line-Fuel

$

$

Currently unavailable

118A

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

118B

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

119

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

124

Toro 29716

Screw

$

$

Currently unavailable

129

Toro 32589

Key-Flywheel

$

$

Currently unavailable

130

Toro 31843A

Bracket, Governor

$

$

Currently unavailable

131

Toro 650836

Screw (10-24x1/2)

$

$

Currently unavailable

135

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

136

Toro 33013

Screw

$

$

Currently unavailable

138

Toro 32180C

Line-Primer

$

$

Currently unavailable

139

Toro 34814

Primer Assy.

$

$

Currently unavailable

144

Toro 650542

Screw

$

$

Currently unavailable

145

Toro 33876

Gasket Stator

$

$

Currently unavailable

146

Toro 34240

Wire, Ground

$

$

Currently unavailable

147

Toro 31546

Bushing-Crankshaft

$

$

Currently unavailable

148

Toro 34126

Bracket

$

$

Currently unavailable

149

Toro 28545

Grommet

$

$

Currently unavailable

150

Toro 650643

Screw

$

$

Currently unavailable

152

Toro 34127

Guard-Starter

$

$

Currently unavailable

153

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

154

Toro 27261

Washer

$

$

Currently unavailable

155

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

163

Toro 32125

Cup-Starter

$

$

Currently unavailable

164

Toro 35009

Screen-Starter

$

$

Currently unavailable

166

Toro 611043

Magneto(The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually,as shown in parts list.)

$

$

Currently unavailable

167

Toro 632371

Carburetor (Incl. Ref. #75)

$

$

Currently unavailable

168

Toro 590576

Starter Assy.-Rewind

$

$

Currently unavailable

169

Toro 33239

Gasket Set

$

$

Currently unavailable
