38040 (524) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) Engine Tecumseh Model No. H50-65504s (5 H.p. Snowthrower Model No. 38040) Parts Diagram

Snow Thrower

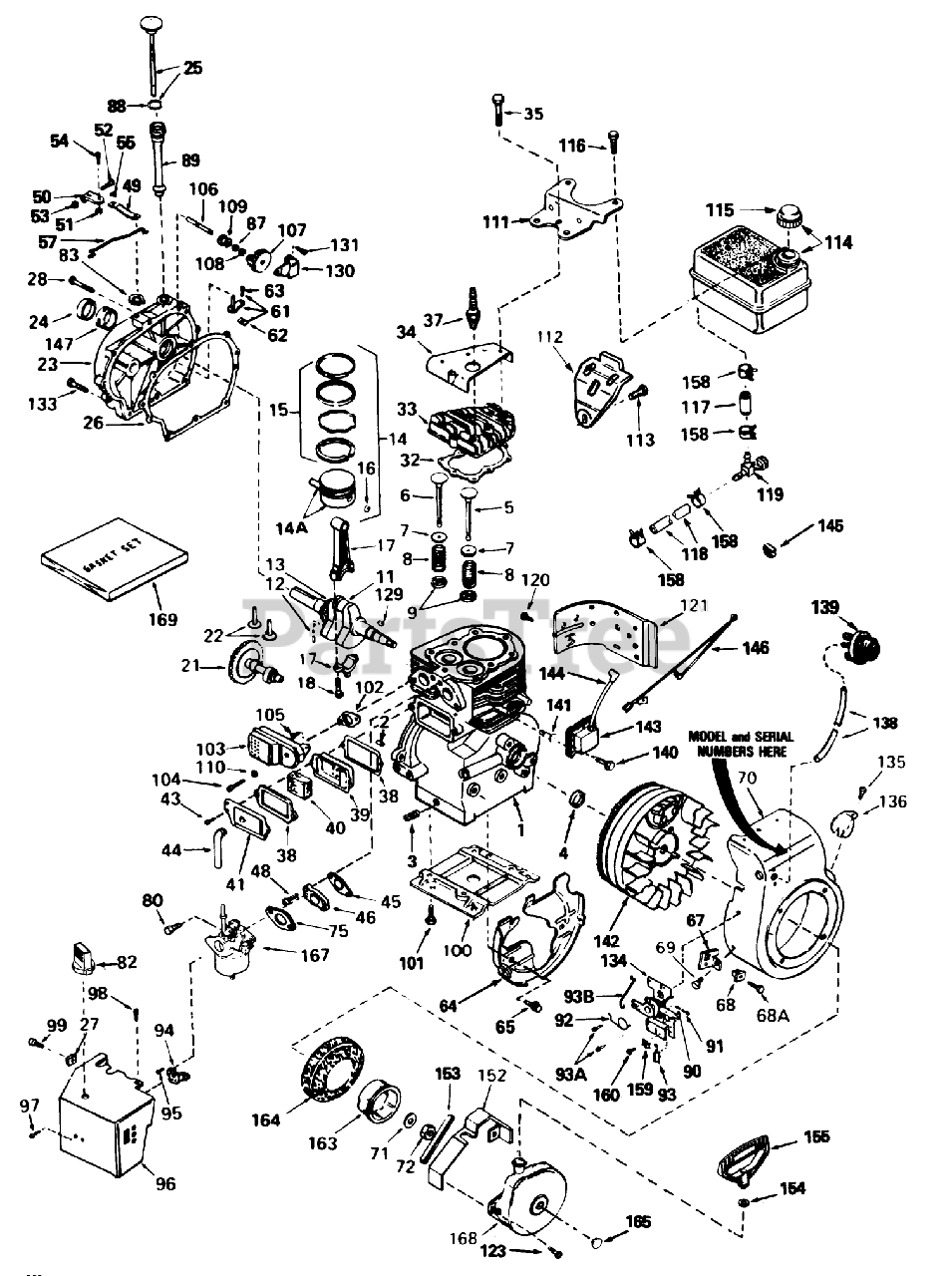

Engine Tecumseh Model No. H50-65504s (5 H.p. Snowthrower Model No. 38040) Parts Diagram

  • Title

1

Toro 34919A

Cylinder Assy. (Incl. Ref. #2, 3 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 35191

Crankshaft Assy. (Incl. Ref. #12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 34531

Piston, Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34532

Piston, Pin Ring Assy. (.010 Oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34533

Piston, Pin Ring Assy. (.020 Oversize)(Incl. Ref. #14A,15 16)

$

$

Currently unavailable

14A

Toro 33312B

Piston Pin Assy. (Std.)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33313B

Piston Pin Assy. (.010 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33314B

Piston Pin Assy. (.020 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 34854

Ring Set (Std.)

$

$

Currently unavailable

15

Toro 34855

Ring Set (.020" OS)

$

$

Currently unavailable

15

Toro 34856

Ring Set (.010" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 31295C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Currently unavailable

18

Toro 650662C

Bolt-Connecting Rod

$

$

Currently unavailable

21

Toro 33156

Camshaft, BCR

$

$

Currently unavailable

22

Toro 34034

Lifter-Valve

$

$

Currently unavailable

23

Toro 31303B

Cover, Cylinder (Incl. Nos. 24 106)

$

$

Currently unavailable

24

Toro 28427

Oil Seal

$

$

Currently unavailable

25

Toro 34011A

Dipstick, Oil (Incl. Ref. #88)

$

$

Currently unavailable

26

Toro 30684

Gasket-Cover, Cylinder

Note: Included in Gasket Set, Ref. Num 169.

$

$

Currently unavailable

27

Toro 650764

Nut-U Type

$

$

Currently unavailable

28

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

32

Toro 28938B

Gasket-Head, Cylinder

Note: Included in Gasket Set, Ref. Num 169.

$

$

Currently unavailable

33

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

35

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

37

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

38

Toro 27896

Gasket-Breather

Note: Included in Gasket Set, Ref. Num 169.

$

$

Currently unavailable

39

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

40

Toro 28424

Element-Breather

$

$

Currently unavailable

41

Toro 28425

Cover-Valve

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 27627

Tube-Breather

$

$

Currently unavailable

45

Toro 27915

Gasket-Intake

Note: Included in Gasket Set, Ref. Num 169.

$

$

Currently unavailable

46

Toro 34712

481-1279 SENATOR RO

$3.23

$

Usually ships in 3-6 days

0

48

Toro 30196

Screw

$

$

Currently unavailable

49

Toro 33454

Lever-Governor

$

$

Currently unavailable

50

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

51

Toro 30322

Nut-Lock

$

$

Currently unavailable

52

Toro 29826

Screw

$

$

Currently unavailable

53

Toro 29216

Nut-Lock

$

$

Currently unavailable

54

Toro 650548

Screw

$

$

Currently unavailable

55

Toro 29918

Washer-Lock

$

$

Currently unavailable

57

Toro 34661

Governor Link

$

$

Currently unavailable

61

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

$

$

Currently unavailable

62

Toro 30700

Yoke-Governor

$

$

Currently unavailable

63

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

64

Toro 35326

Baffle-Blower Housing
(Superseded to 704742)

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

67

Toro 34126

Bracket

$

$

Currently unavailable

68

Toro 28545

Grommet

$

$

Currently unavailable

68A

Toro 650643

Screw

$

$

Currently unavailable

69

Toro 29747B

Screw

$

$

Currently unavailable

70

Toro 35260

Housing, Blower (Incl. Ref. #135 136)

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 650871

Flywheel Nut

$

$

Currently unavailable

75

Toro 31688

Gasket-Carburetor
(Superseded to 704627)

Note: Included in Gasket Set, Ref. Num 169.

$

$

Not available

80

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

82

Toro 35439

Knob-Choke

$

$

Currently unavailable

83

Toro 29642

Ring-Retaining

$

$

Currently unavailable

87

Toro 30590A

Washer-Flat

$

$

Currently unavailable

88

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

89

Toro 33893A

Tube Fill

$

$

Currently unavailable

90

Toro 31342

Spring-Compression

$

$

Currently unavailable

91

Toro 650549

Screw

$

$

Currently unavailable

92

Toro 34663

Spring-Throttle

$

$

Currently unavailable

93

Toro 610973

Terminal

$

$

Currently unavailable

93A

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

93B

Toro 34662

Link-Throttle

$

$

Currently unavailable

94

Toro 32398

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 35060

Carburetor Cover

$

$

Currently unavailable

97

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

98

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

99

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

100

Toro 29538

Base Engine

$

$

Currently unavailable

101

Toro 650542

Screw

$

$

Currently unavailable

102

Toro 27930

Gasket Exhaust

Note: Indicates Parts Included in Gasket Set, Ref. Num 169

$

$

Currently unavailable

103

Toro 32401

Muffler

$

$

Currently unavailable

104

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

105

Toro 30196

Screw

$

$

Currently unavailable

106

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 26073

Washer

$

$

Currently unavailable

111

Toro 33166A

Plate, Fuel Tank Mounting

$

$

Currently unavailable

112

Toro 34816

Bracket, Fuel Tank Mounting

$

$

Currently unavailable

113

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

114

Tank, Fuel (Incl. Ref. #115)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

115

Cap, Fuel Tank

Note: Obtain from your local Tecumseh dealer

$

$

Not available

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

117

Toro 30962

Line-Fuel

$

$

Currently unavailable

118

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

119

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30622A

Extension-Blower Hsng.

$

$

Currently unavailable

123

Toro 29716

Screw

$

$

Currently unavailable

129

Toro 32589

Key-Flywheel

$

$

Currently unavailable

130

Toro 31843A

Bracket, Governor

$

$

Currently unavailable

131

Toro 650836

Screw (10-24x1/2)

$

$

Currently unavailable

133

Toro 650493

Screw

$

$

Currently unavailable

134

Toro 34664

Control Assy., Remote Speed (Incl. Ref. #90 thru 93)

$

$

Currently unavailable

135

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

136

Toro 33013

Screw

$

$

Currently unavailable

138

Toro 32180C

Line-Primer

$

$

Currently unavailable

139

Toro 34814

Primer Assy.

$

$

Currently unavailable

140

Toro 650814

Screw

$

$

Currently unavailable

141

Toro 650872

Stud

$

$

Currently unavailable

142

Toro 611085

Flywheel

$

$

Currently unavailable

143

Toro 34443A

Solid State

$

$

Currently unavailable

144

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

145

Toro 29443

Clip-Wire

$

$

Currently unavailable

146

Toro 35253

Ground Wire

$

$

Currently unavailable

147

Toro 31546

Bushing-Crankshaft

$

$

Currently unavailable

152

Toro 34127

Guard-Starter

$

$

Currently unavailable

153

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

154

Toro 650168

Washer

$

$

Currently unavailable

155

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

158

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

159

Toro 27793

Conduit

$

$

Currently unavailable

160

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

163

Toro 32125

Cup-Starter

$

$

Currently unavailable

164

Toro 35009

Screen-Starter

$

$

Currently unavailable

165

Toro 35161

Plug-Starter

$

$

Currently unavailable

167

Toro 632379

Carburetor (Incl. Ref. #75)

$

$

Currently unavailable

168

Toro 590604

Starter-Rewind

$

$

Currently unavailable

169

Toro 33235

Gasket Set (Incl. Items Marked *)

$

$

Currently unavailable
