38040 (524) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) Engine, Tecumseh Model No. Hs50-67074b (5 H.p. Snowthrower Model No. 38040) Parts Diagram

Snow Thrower

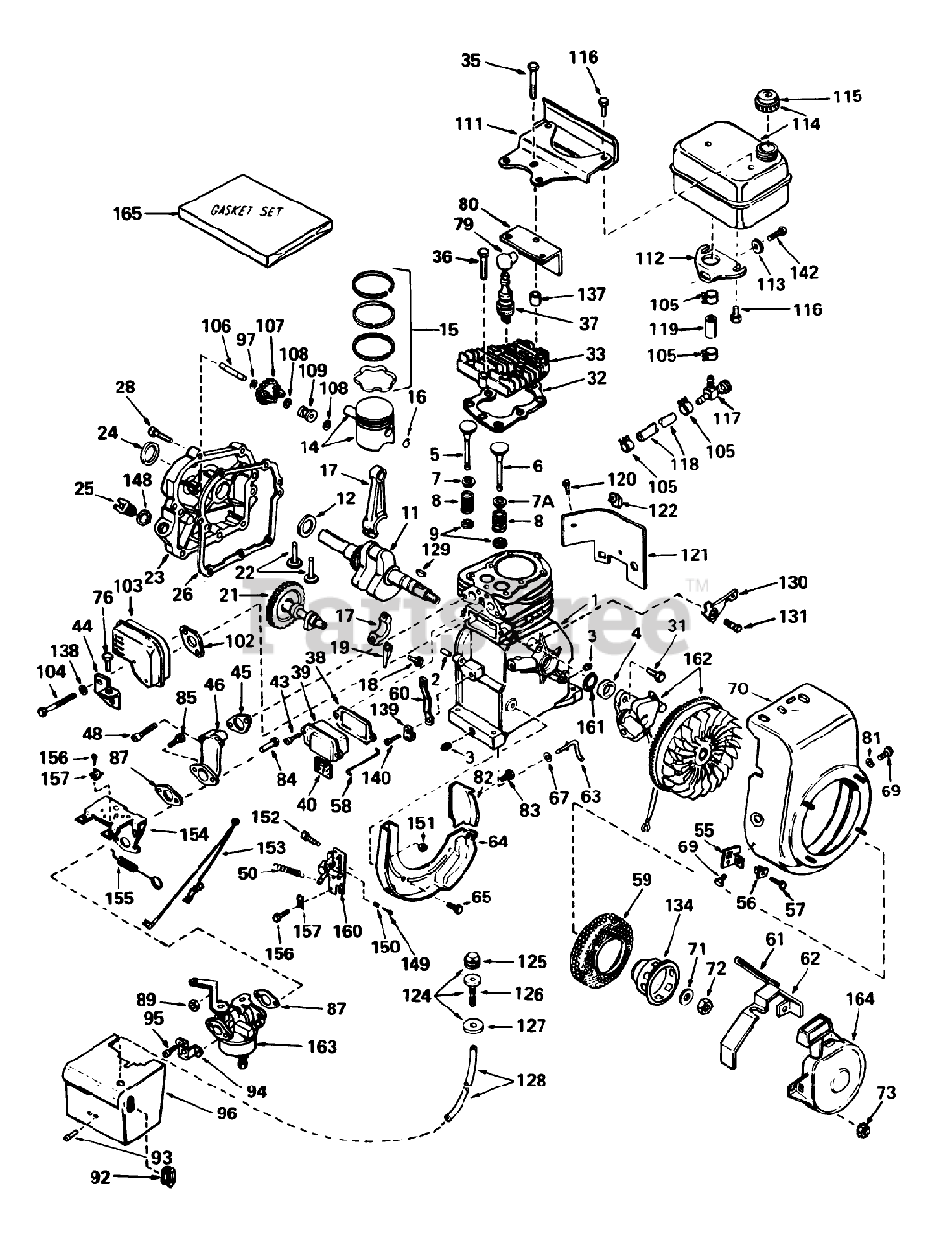

Engine, Tecumseh Model No. Hs50-67074b (5 H.p. Snowthrower Model No. 38040) Parts Diagram

  • Title

1

Toro 33674

Cylinder Assy. (Incl. Nos.2, 34)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644

Valve, Intake (Standard) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

5

Toro 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

7A

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 33675

Crankshaft Assy.
(Superseded to 742418)

$

$

Not available

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 33562

Piston Pin Assembly (Incl. 2 of No. 14)(Std.)

$

$

Currently unavailable

14

Toro 33563

Piston Pin Assembly (Incl. 2 of No. 14)(.010 Oversize)

$

$

Currently unavailable

14

Toro 33564

Piston Pin Assembly (Incl. 2 of No. 14)(.020 Oversize)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 33661

Rod Assy., Connecting (Incl. Nos. 18 19)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

19

Toro 32654

Dipper-Oil

$

$

Currently unavailable

21

Toro 33158

Camshaft

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 32700A

Cover, Cylinder (Incl. Nos. 24, 25, 106 148)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

28

Toro 30564

Screw

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 33554

Oil Fill Tube

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

33

Toro 33016

Head Cylinder

$

$

Currently unavailable

35

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

36

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

$

$

Not available

45

Toro 33673

Gasket-Intake

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

46

Toro 33691

Pipe-Intake

$

$

Currently unavailable

48

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

50

Toro 31426

Spring-Extension

$

$

Currently unavailable

55

Toro 34126

Bracket

$

$

Currently unavailable

56

Toro 28545

Grommet

$

$

Currently unavailable

57

Toro 650643

Screw

$

$

Currently unavailable

58

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

59

Toro 33668

Screen-Starter

$

$

Currently unavailable

60

Toro 32871

Lever, Governor

$

$

Currently unavailable

61

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

62

Toro 34127

Guard-Starter

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 33663A

Housing, Blower

$

$

Currently unavailable

71

Toro 650763

Washer-Spring

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

76

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

79

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

80

Toro 33344

Baffle-Heat

$

$

Currently unavailable

81

Toro 650168

Washer

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

85

Toro 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Toro 26756

Gasket

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

92

Toro 34213

Grommet, Carburetor cover

$

$

Currently unavailable

93

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

94

Toro 32398

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 34134

Cover, Carburetor

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

102

Toro 33670

Gasket-Exhaust

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

103

Toro 33697

Muffler

$

$

Currently unavailable

104

Toro 650327

Screw-Fil. Hd.

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

112

Toro 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Toro 650675

Washer

$

$

Currently unavailable

114

Toro 33120

53023/VAR.10/16HP O

$3.23

$

Usually ships in 3-6 days

0

115

Toro 30998B

Cap, Fuel

$

$

Currently unavailable

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

117

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

124

Toro 32182

Primer Assy. (Incl. Nos. 89, 90 91)

$

$

Currently unavailable

125

Toro 32183

Bulb, Primer

$3.23

$

Usually ships in 3-6 days

0

126

Toro 32184

Body, Primer

$

$

Currently unavailable

127

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

128

Toro 32180A

Line, Primer

$

$

Currently unavailable

129

Toro 610951

Key, FIywheel

$

$

Currently unavailable

130

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

131

Toro 650768

Screw, Hex Hd. w/Conical

$

$

Currently unavailable

134

Toro 33667

Cup, Starter
(Superseded to 740552)

$

$

Not available

137

Toro 28212

pacer

$

$

Currently unavailable

138

Toro 16644

Washer

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

142

Toro 650805

Screw Assembly

$

$

Currently unavailable

148

Toro 29673

Gasket

Note: Indicates items included in gasket set part no. 33683.

$

$

Currently unavailable

149

Toro 650549

Screw

$

$

Currently unavailable

150

Toro 31342

Spring-Compression

$

$

Currently unavailable

151

Toro 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

152

Toro 650139

Screw

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

153

Toro 34241

Wire-Ground

$

$

Currently unavailable

154

Toro 34123

Bracket, Speed Control

$

$

Currently unavailable

155

Toro 34125

51011/13 TILL.O/P'7

$3.23

$

Usually ships in 3-6 days

0

156

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

157

Toro 27793

Conduit

$

$

Currently unavailable

160

Toro 33879A

Bracket Assy., Control (Incl. Ref. #149 thru 152 154)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

161

Toro 33876

Gasket Stator

$

$

Currently unavailable

162

Toro 610944A

Magneto

$

$

Currently unavailable

163

Toro 631916

Carburetor (Incl. 1 of No. 87)

$

$

Currently unavailable

164

Toro 590473

Starter Assy., Rewind

$

$

Currently unavailable

165

Toro 33683

Gasket Set

$

$

Currently unavailable
