38046 (380460) - Husqvarna Walk-Behind Mower (2011-10) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

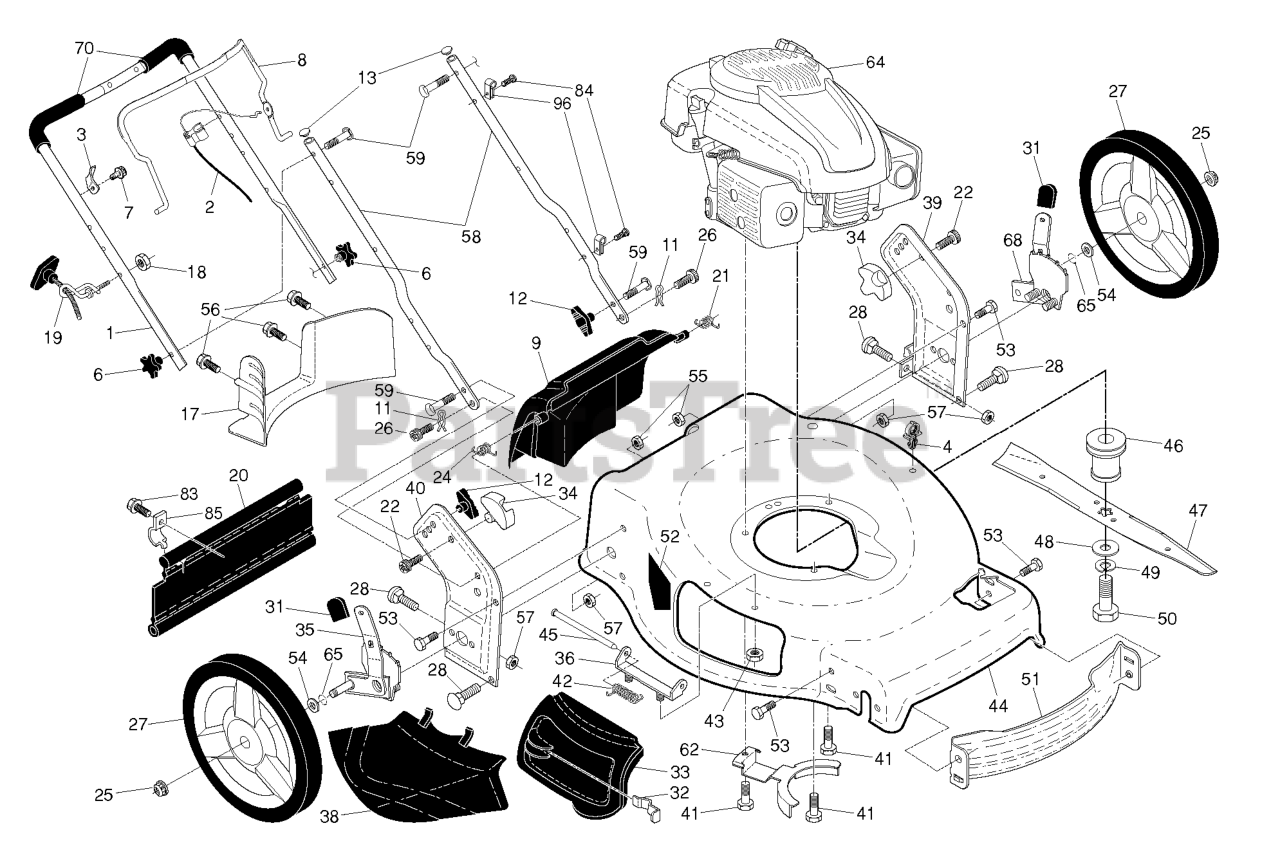

FRAME & ENGINE Parts Diagram

  • Title

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, Qty 6

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$5.99

$

In Stock, Qty 20+

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

In Stock, Qty 6

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$4.99

$

In Stock, Qty 5

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 532433430

BAIL.MZR.EZ2.DSTR.22+.ORG.E

$

$

Not available

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$5.99

$

In Stock, Qty 7

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

68

Husqvarna 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: LH

$26.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

39

Husqvarna 532442531

BRACKET.HANDLE.LT.22+.W/DP.GRE
(Superseded to 581353702)

Note: LH

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$31.99

$

In Stock, Qty 13

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$3.49

$

In Stock, Qty 11

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 10

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$56.99

$

In Stock, Qty 20+

0

64

000000000

Note: B&S 128M02-0120-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

17

Husqvarna 532427307

BAFFLE.22PLUS.FGD.REAR.

$

$

Not available

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

2

Husqvarna 532420939

CABLE.MZR.FGD.PLUS

$20.99

$

In Stock, Qty 5

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.49

$

In Stock, only 2 left!

0

55

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, Qty 6

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 532431140

ADJUSTER.ASM.9POS.HW.R/R

Note: RH

$26.99

$

In Stock, only 1 left!

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$13.99

$

In Stock, Qty 20+

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$5.99

$

In Stock, Qty 5

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

42

Husqvarna 532193000

SPRING.TORSION

$7.99

$

In Stock, Qty 20+

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, only 4 left!

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 2 left!

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 532440526

RP.BRACKET.ASM.HANDLE.RT.22+.
(Superseded to 581353602)

Note: RH

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 14

0

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, Qty 20+

0

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.99

$

In Stock, Qty 20+

0

46

Husqvarna 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$17.99

$

In Stock, Qty 10

0

28

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$

$

Not available

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

1

Husqvarna 532427658

HANDLE.ASM.GRY.W/GRIP

$96.99

$

In Stock, only 1 left!

0

4

Husqvarna 532145006

PUSH CLIP

$3.49

$

In Stock, Qty 9

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$6.99

$

In Stock, Qty 19

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 532178848

SCREW

$3.99

$

In Stock, Qty 19

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

In Stock, Qty 20+

0

44

Husqvarna 532440510

$

$
