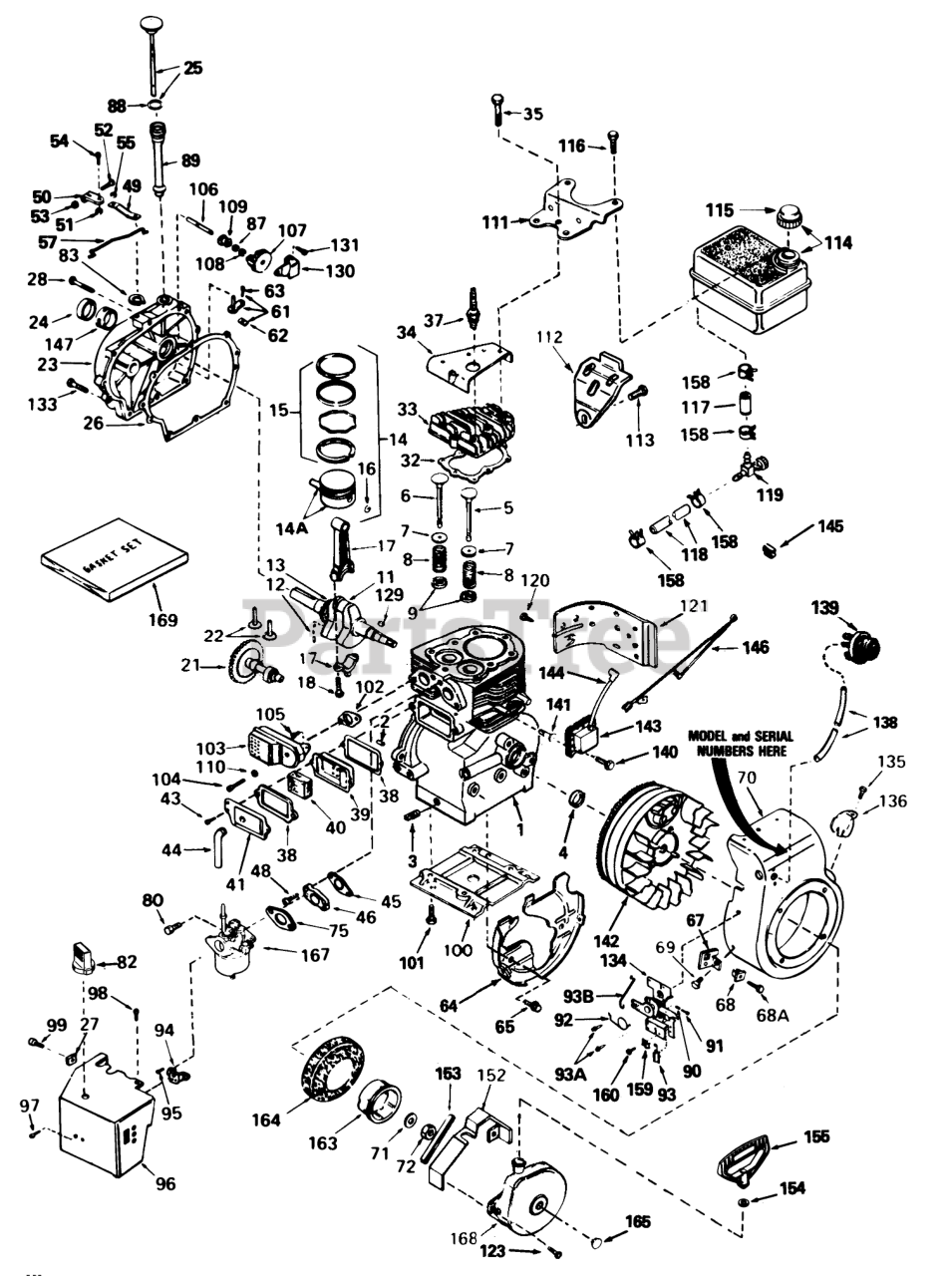

ENGINE TECUMSEH MODEL NO. H50-65504S (5 H.P. SNOWTHROWER MODEL NO. 38040) Parts Diagram

  • Title

1

Tecumseh 34919A

Cylinder Assy. (Incl. Ref. #2, 3 & 4)
(Superseded to 34919B)

$

$

Not available

2

Tecumseh 27652

Pin-Dowel

$2.49

$

In Stock, only 1 left!

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 32630

Oil Seal

$8.49

$

In Stock, Qty 7

0

5

Tecumseh 32783

Valve, Intake (Std.) (Incl. Ref. #9)

$16.99

$

In Stock, only 1 left!

0

5

Tecumseh 32784

Valve, Intake (1/32" oversize) (Incl. Ref. #9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Valve, Exhaust (Std.) (Incl. Ref. #9)

$23.99

$

In Stock, only 1 left!

0

6

Tecumseh 27880A

Valve, Exhaust (1/32" oversize) (Incl. Ref. #9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 3 left!

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 13

0

11

Tecumseh 35191

Crankshaft Assy. (Incl. Ref. #12 & 13)
(Superseded to 36388)

$

$

Not available

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34531

Piston, Pin & Ring Assy. (Std.) (Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34532

Piston, Pin & Ring Assy. (.010 oversize) (Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34533

Piston, Pin & Ring Assy. (.020 oversize) (Incl. Ref. #14A, 15 & 16)

$

$

Not available

14A

Tecumseh 33312B

Piston & Pin Assy. (Std.) (Incl. Ref. #16)

$

$

Not available

14A

Tecumseh 33313B

Piston & Pin Assy. (.010 over size) (Incl. Ref. #16)

$55.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33314B

Piston & Pin Assy. (.020 over size) (Incl. Ref. #16)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 34854

Ring Set (Std.)

$

$

Not available

15

Tecumseh 34855

Ring Set (.020" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.010" OS)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31295C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Not available

18

Tecumseh 650662C

Bolt-Connecting Rod

$3.99

$

Usually ships in 3-12 days

0

21

Tecumseh 33156

Camshaft, BCR
(Superseded to 32115)

$

$

Not available

22

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 1 left!

0

23

Tecumseh 31303B

Cover, Cylinder (Incl. Ref. #24, 106 & 147)
(Superseded to 31303C)

$128.99

$

Usually ships in 3-12 days

0

24

Tecumseh 28427

Oil Seal

$6.99

$

In Stock, Qty 15

0

25

Tecumseh 34011A

Dipstick, Oil (Incl. Ref. #88)
(Superseded to 34011B)

$15.99

$

In Stock, only 2 left!

0

26

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Included in Gasket Set, Ref. Num 169.

$4.49

$

In Stock, Qty 17

0

27

Tecumseh 650764

Nut-U Type

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 28938B

Gasket-Head, Cylinder
(Superseded to 28938C)

Note: Included in Gasket Set, Ref. Num 169.

$9.99

$

In Stock, Qty 15

0

33

Tecumseh 30938A

Head, Cylinder (Incl. 3 of #35)
(Superseded to 36446)

$

$

Not available

34

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

35

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 20+

0

37

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 20+

0

38

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Included in Gasket Set, Ref. Num 169.

$1.49

$

In Stock, Qty 20+

0

39

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 2 left!

0

40

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, Qty 20+

0

41

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 4 left!

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

In Stock, Qty 12

0

45

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Included in Gasket Set, Ref. Num 169.

$5.99

$

In Stock, Qty 20+

0

46

Tecumseh 34712

Flange, Carburetor (Incl. Ref. #80)

$

$

Not available

48

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 13

0

49

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 4 left!

0

50

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, Qty 6

0

51

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29826

Screw

$1.99

$

In Stock, Qty 5

0

53

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, Qty 5

0

54

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 18

0

55

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

57

Tecumseh 34661

Governor Link

$6.99

$

In Stock, Qty 9

0

61

Tecumseh 30699C

Rod Assy., Governor (Incl. Ref. #62 & 63)

$17.99

$

In Stock, only 1 left!

0

62

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

64

Tecumseh 35326

Baffle-Blower Housing
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, Qty 6

0

67

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

68

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

68A

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29747B

Screw

$1.99

$

In Stock, only 2 left!

0

70

Tecumseh 35260

Housing, Blower (Incl. Ref. #135 & 136)

$

$

Currently unavailable

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 13

0

72

Tecumseh 650871

Flywheel Nut

$

$

Not available

75

Tecumseh 31688

Gasket-Carburetor
(Superseded to 31688A)

Note: Included in Gasket Set, Ref. Num 169.

$2.49

$

In Stock, Qty 20+

0

80

Tecumseh 650372

Screw-Hex Hd.
(Superseded to 650517)

$1.99

$

In Stock, only 4 left!

0

82

Tecumseh 35439

Knob-Choke

$3.99

$

In Stock, Qty 7

0

83

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

87

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 9

0

88

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 3 left!

0

89

Tecumseh 33893A

Tube Fill

$11.99

$

In Stock, only 1 left!

0

90

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 2 left!

0

91

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 4 left!

0

92

Tecumseh 34663

Spring-Throttle

$1.99

$

In Stock, only 1 left!

0

93

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

93A

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 5

0

93B

Tecumseh 34662

Link-Throttle

$4.49

$

In Stock, only 3 left!

0

94

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 4 left!

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, Qty 6

0

96

Tecumseh 35060

Carburetor Cover
(Superseded to 35060A)

$

$

Not available

97

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 20+

0

98

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, Qty 12

0

99

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 4 left!

0

100

Tecumseh 29538

Base Engine

$17.99

$

Usually ships in 3-12 days

0

101

Tecumseh 650542

Screw

$1.99

$

In Stock, only 3 left!

0

102

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates Parts Included in Gasket Set, Ref. Num 169

$2.49

$

In Stock, Qty 20+

0

103

Tecumseh 32401

Muffler

$35.99

$

Usually ships in 3-12 days

0

104

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 8

0

105

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 13

0

106

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

107

Tecumseh 30591

GearAssy. Governor (Incl. Ref. #87)

$13.99

$

In Stock, Qty 13

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 10

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 12

0

110

Tecumseh 26073

Washer

$

$

Not available

111

Tecumseh 33166A

Plate, Fuel Tank Mounting
(Superseded to 33166)

$

$

Currently unavailable

112

Tecumseh 34816

Bracket, Fuel Tank Mounting

$7.49

$

Usually ships in 3-12 days

0

113

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, Qty 6

0

114

Tank, Fuel (Incl. Ref. #115)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

115

Cap, Fuel Tank

Note: Obtain from your local Tecumseh dealer

$

$

Not available

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 6

0

117

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 12

0

118

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 16

0

119

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

In Stock, only 3 left!

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 30622A

Extension-Blower Hsng.

$

$

Not available

123

Tecumseh 29716

Screw

$1.49

$

In Stock, Qty 6

0

129

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 9

0

130

Tecumseh 31843A

Bracket, Governor

$5.49

$

Usually ships in 3-12 days

0

131

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

$

$

Not available

133

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

134

Tecumseh 34664

Control Assy., Remote Speed (Incl. Ref. #90 thru 93)

$53.99

$

In Stock, only 4 left!

0

135

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 4 left!

0

136

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

138

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, Qty 6

0

139

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

In Stock, only 1 left!

0

140

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, Qty 5

0

141

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, Qty 7

0

142

Tecumseh 611085

Flywheel

$214.99

$

Usually ships in 3-12 days

0

143

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, Qty 20+

0

144

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 19

0

145

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

146

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 4 left!

0

147

Tecumseh 31546

Bushing-Crankshaft

$14.99

$

In Stock, only 1 left!

0

152

Tecumseh 34127

Guard-Starter

$

$

Not available

153

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

154

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

155

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

158

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

159

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 4 left!

0

160

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, Qty 5

0

163

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

164

Tecumseh 35009

Screen-Starter

$3.99

$

In Stock, only 1 left!

0

165

Tecumseh 35161

Plug-Starter

$

$

Not available

167

Tecumseh 632379

Carburetor (Incl. Ref. #75)
(Superseded to 632379A)

$123.99

$

Usually ships in 3-12 days

0

168

Tecumseh 590604

Starter-Rewind

$

$

Not available

169

Tecumseh 33235

Gasket Set
(Superseded to 33235A)

$23.99

$

In Stock, Qty 10

0
